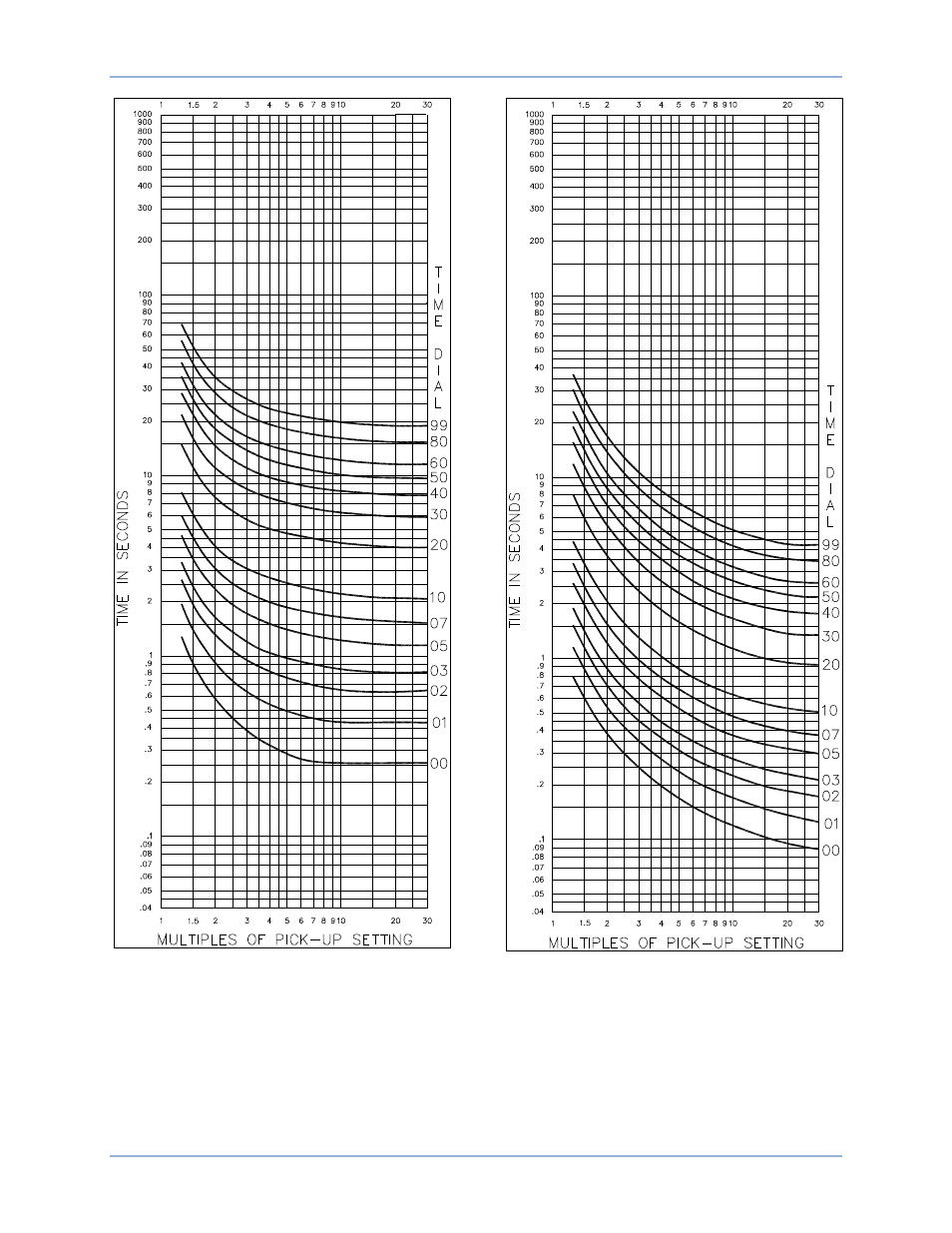

Figure 71. Timing Type B3, Definite Time with
Integrated Algorithm and Extended Timing
Figure 72. Timing Type B4, Moderately Inverse
with Integrated Algorithm
P
0
0
4
9
-4
4
P
0
0
4
9
-4
5
Time Overcurrent Characteristic Curves BE1-51
