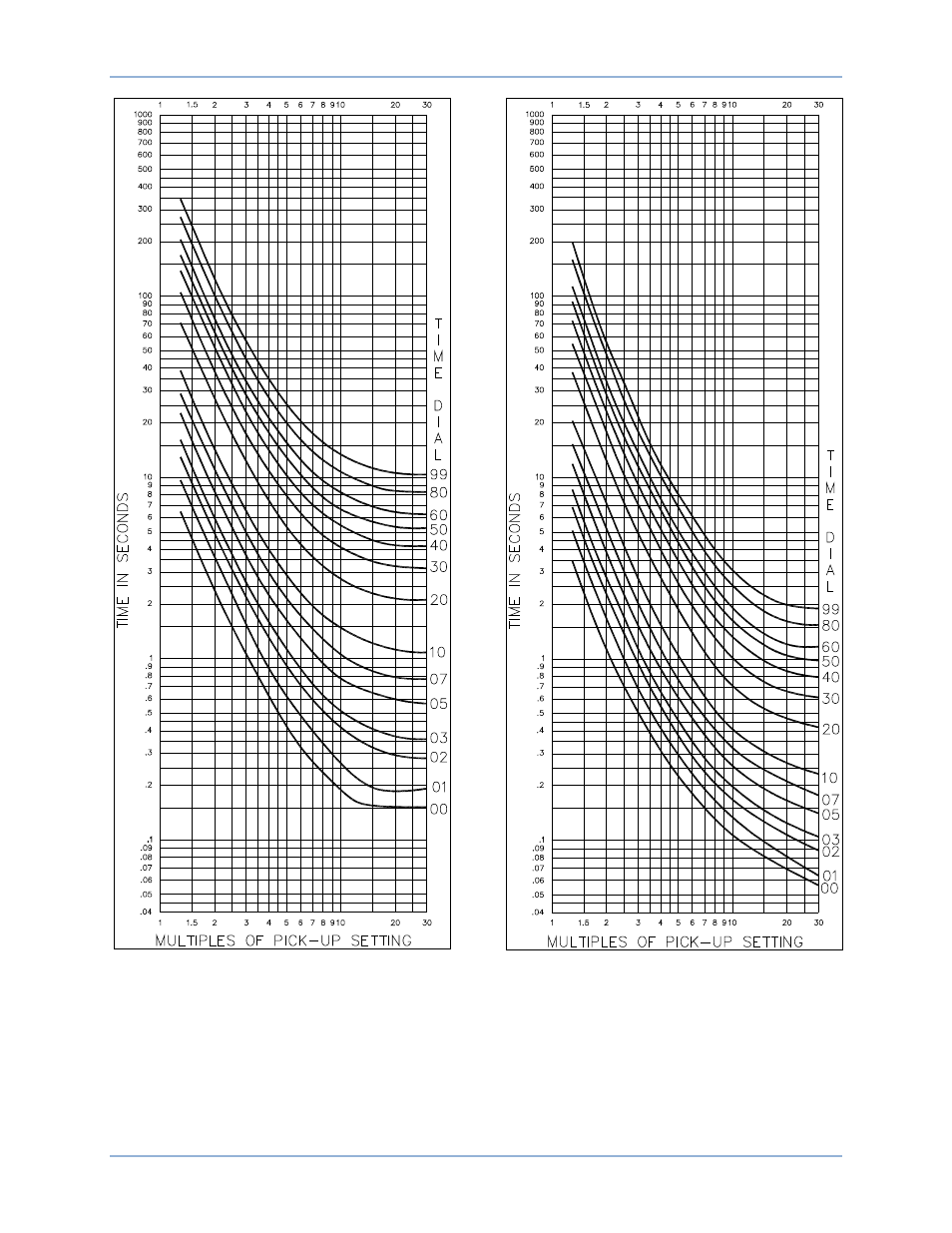

Figure 77. Timing Type B6, Very Inverse with
Integrated Algorithm and Extended Timing
Figure 78. Timing Type B7, Extremely Inverse with
Integrated Algorithm
P
0
0
4
9
-5
0
P
0
0
4
9
-5
1
BE1-51 Time Overcurrent Characteristic Curves
