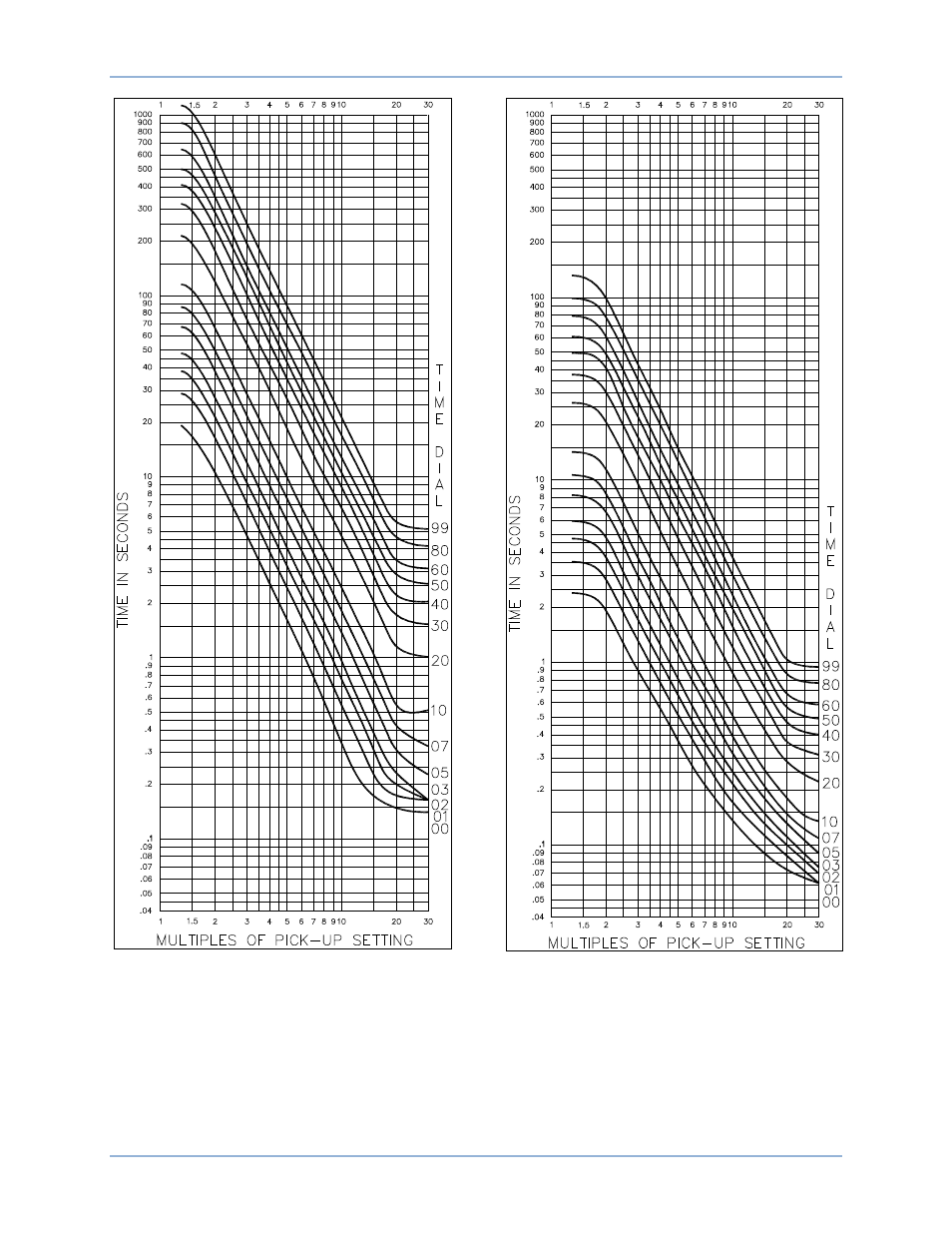

Figure 83. Timing Type C1, I 2 t Limit #1
with Integrated Algorithm
Figure 84. Timing Type C2, I 2 t Limit #2
with Integrated Algorithm
P
0
0
4
9
-5
6
P
0
0
4
9
-5
7
Time Overcurrent Characteristic Curves BE1-51
