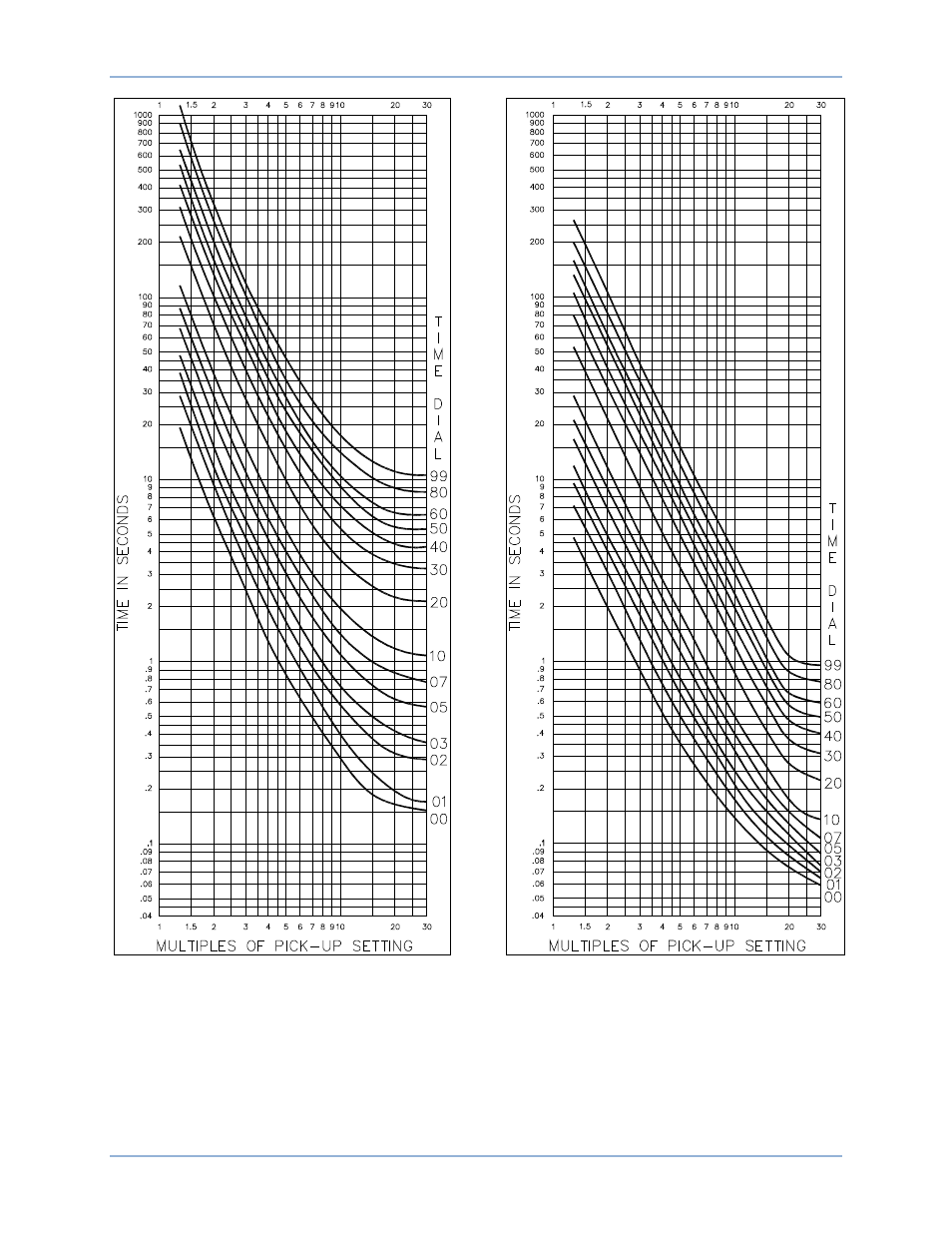

Figure 79. Timing Type B7, Extremely Inverse with
Integrated Algorithm
and Extended Timing
Figure 80. Timing Type B8, I 2 t
with Integrated Algorithm
P
0
0
4
9
-5
2
P
0
0
4
9
-5
3
Time Overcurrent Characteristic Curves BE1-51
