Basler Electric BE1-51 - Manual (Page 93)

9137200997 Rev G 87

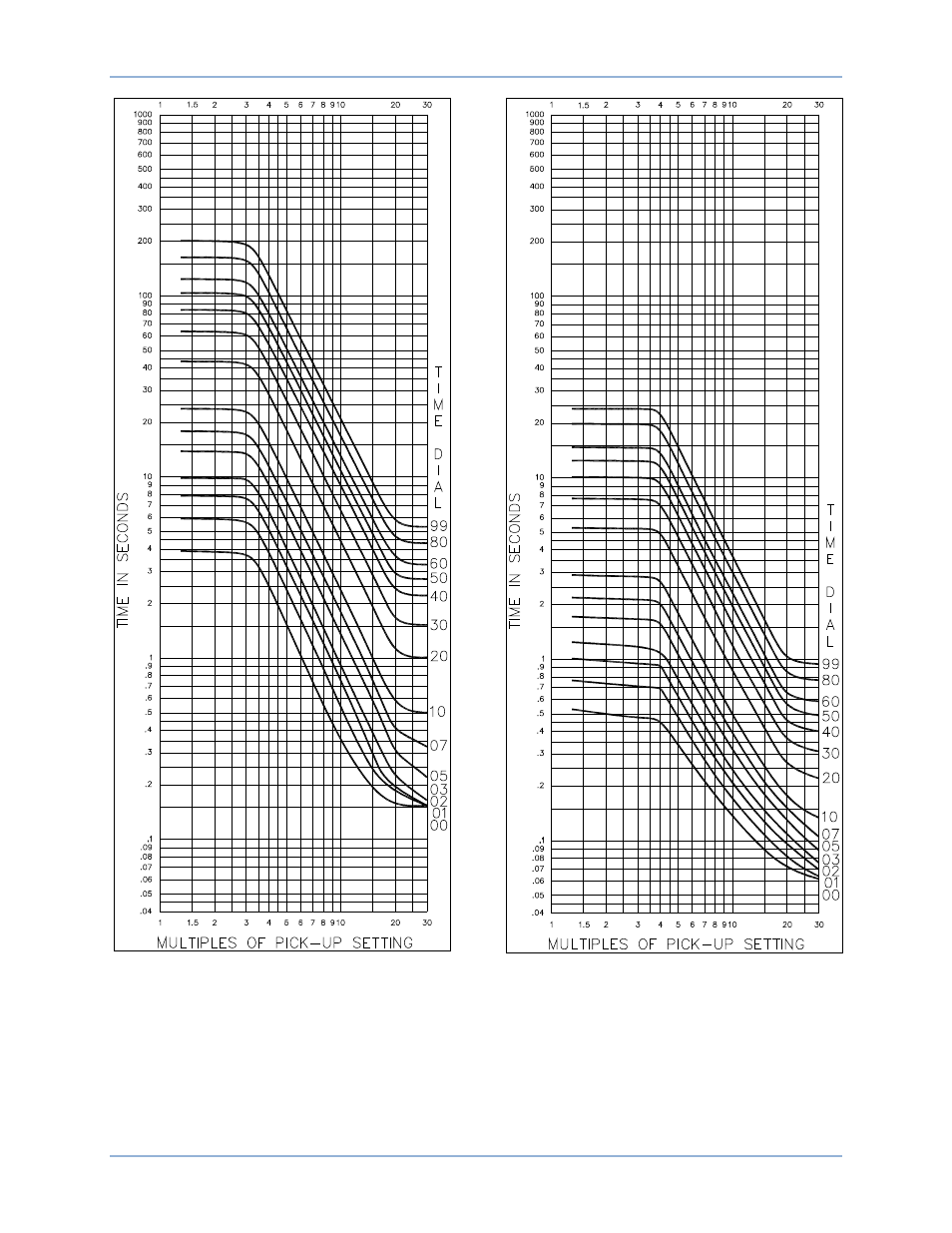

Figure 93. Timing Type C6, I 2 t Limit #6 with
Integrated Algorithm and Extended Timing
Figure 94. Timing Type C7, I 2 t Limit #7
with Integrated Algorithm
P
0
0
4
9
-6
6
P
0
0
4
9
-6
7
BE1-51 Time Overcurrent Characteristic Curves
