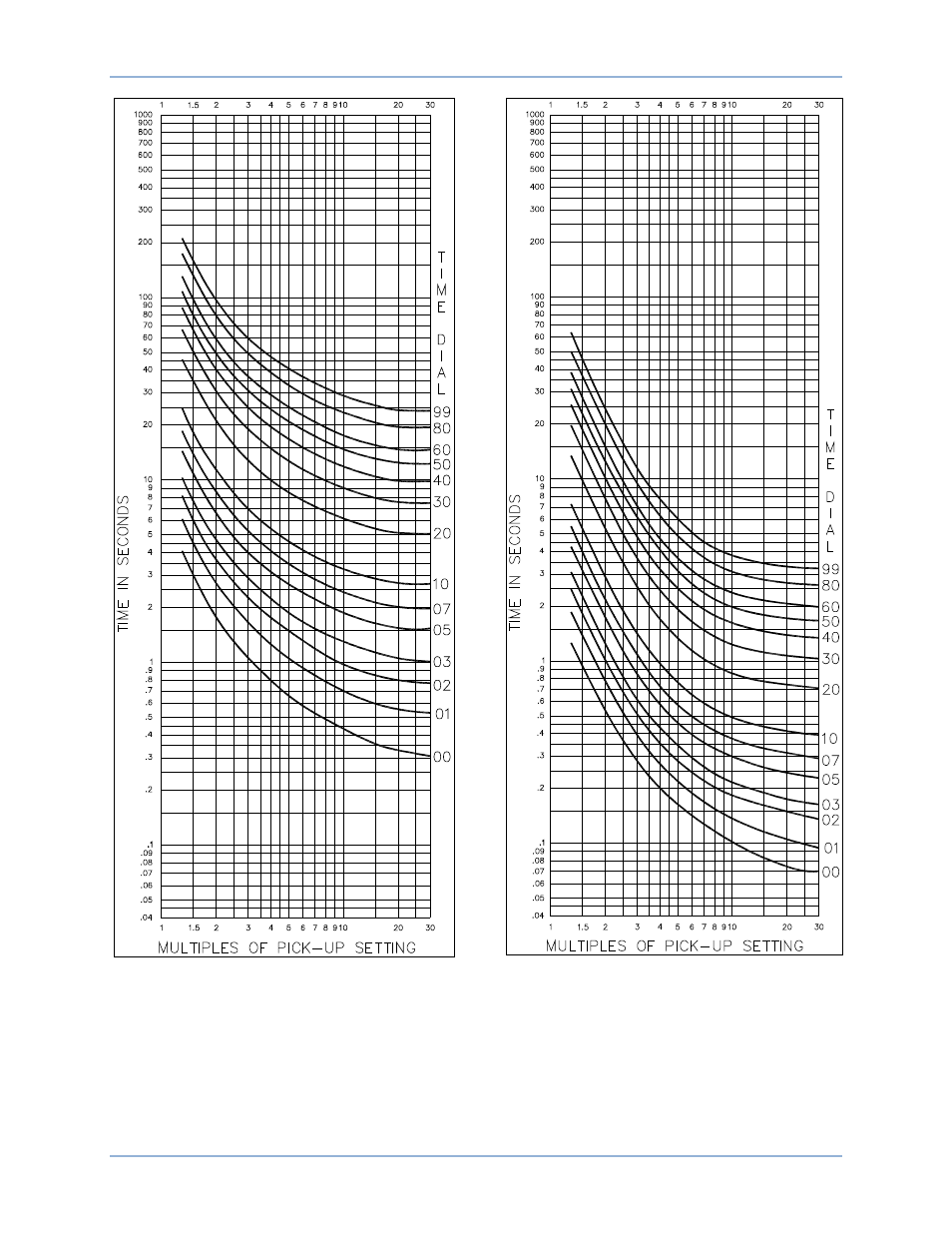

Figure 73. Timing Type B4, Moderately Inverse
with Integrated Algorithm
and Extended Timing
Figure 74. Timing Type B5, Inverse with Integrated
Algorithm
P
0
0
4
9
-4
6
P
0
0
4
9
-4
7
BE1-51 Time Overcurrent Characteristic Curves
