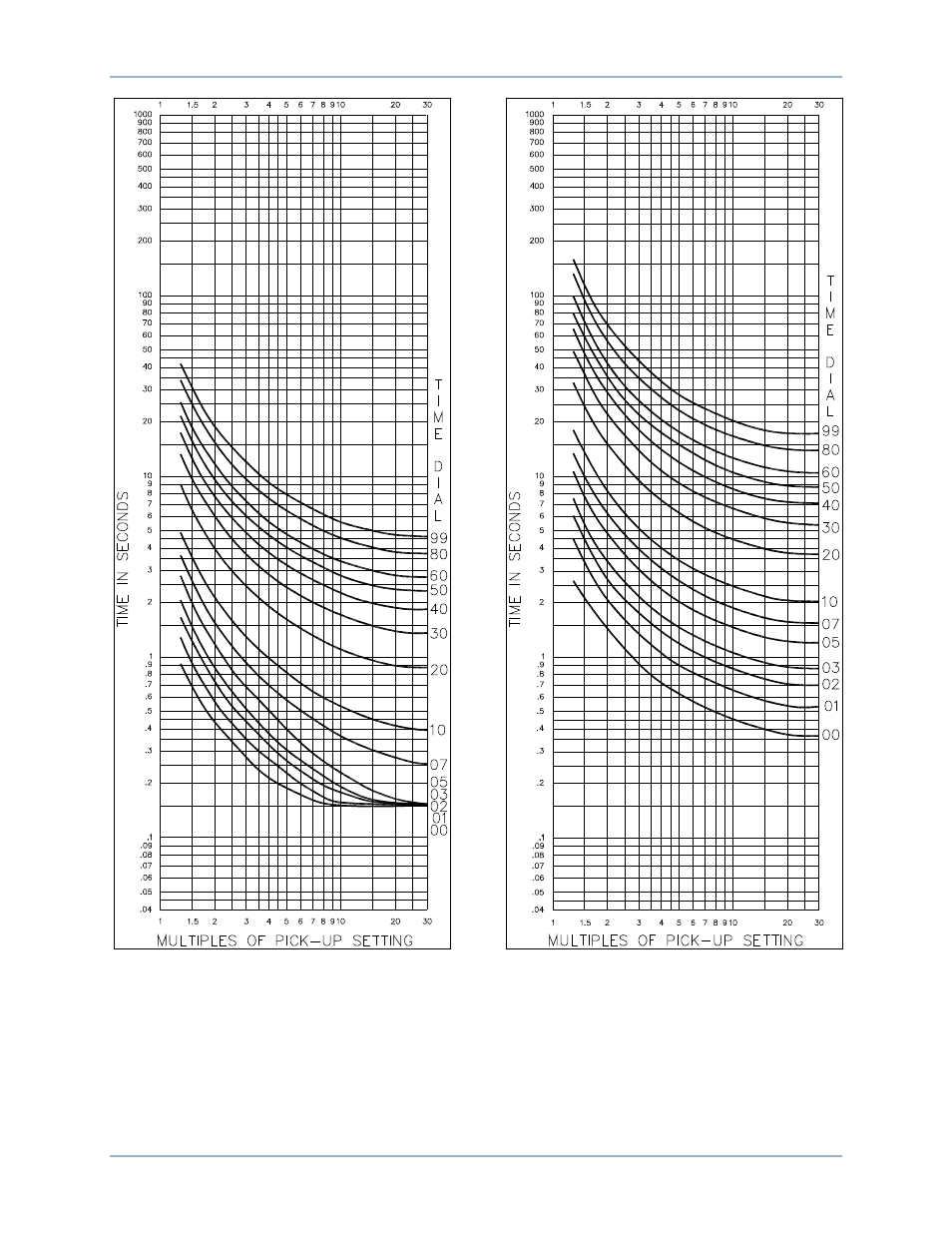

Figure 67. Timing Type B1, Short Inverse with
Integrated Algorithm and Extended Timing
Figure 68. Timing Type B2, Long Inverse
with Integrated Algorithm
P
0
0
4
9
-4
0
P
0
0
4
9
-4
1
Time Overcurrent Characteristic Curves BE1-51
