Basler Electric BE1-51 - Manual (Page 79)

9137200997 Rev G 73

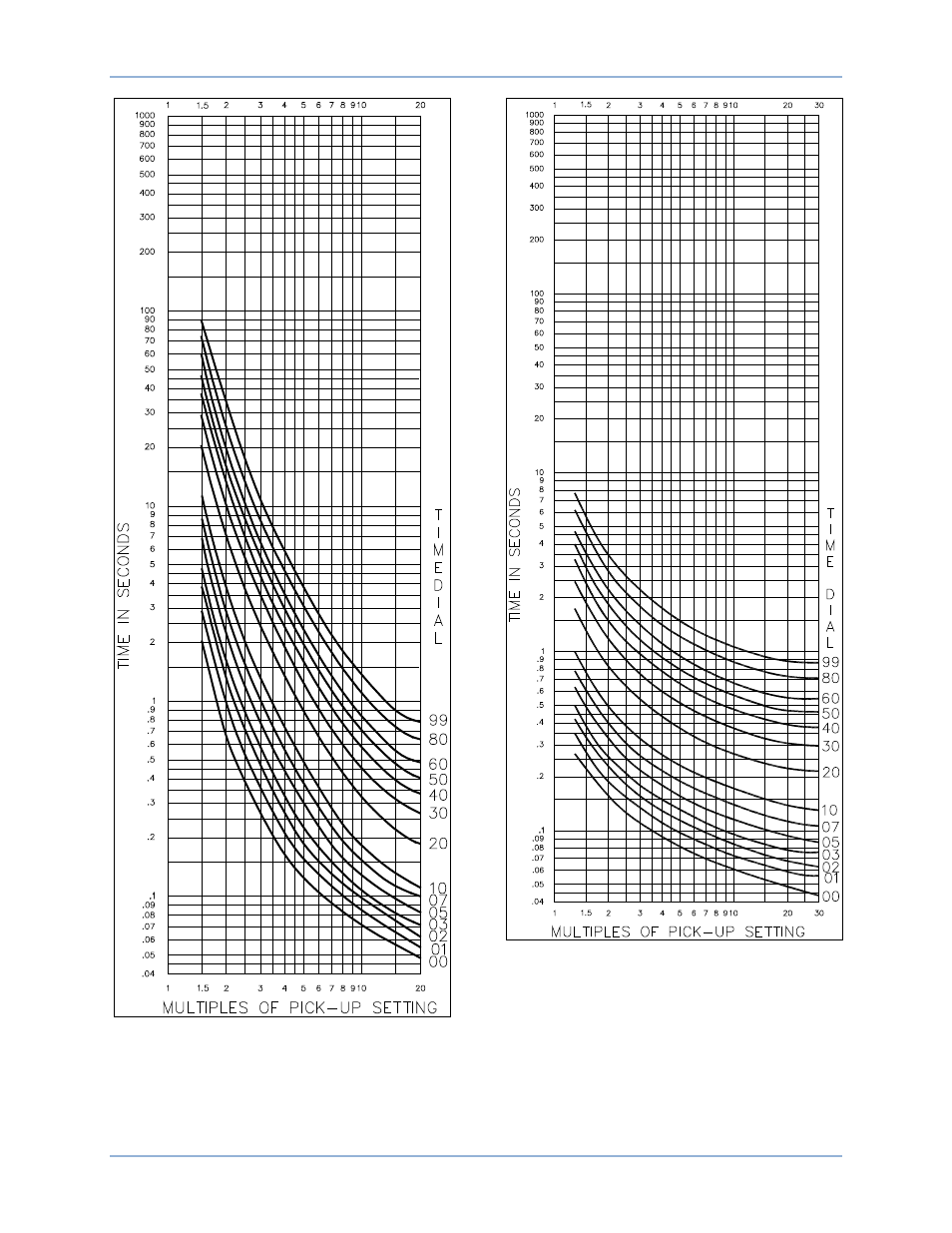

Figure 65. Timing Type E7,
BS 142 Extremely Inverse
Figure 66. Timing Type B1, Short Inverse
with Integrated Algorithm
P
0
0
4
9
-3
8
P
0
0
4
9
-3
9
BE1-51 Time Overcurrent Characteristic Curves
