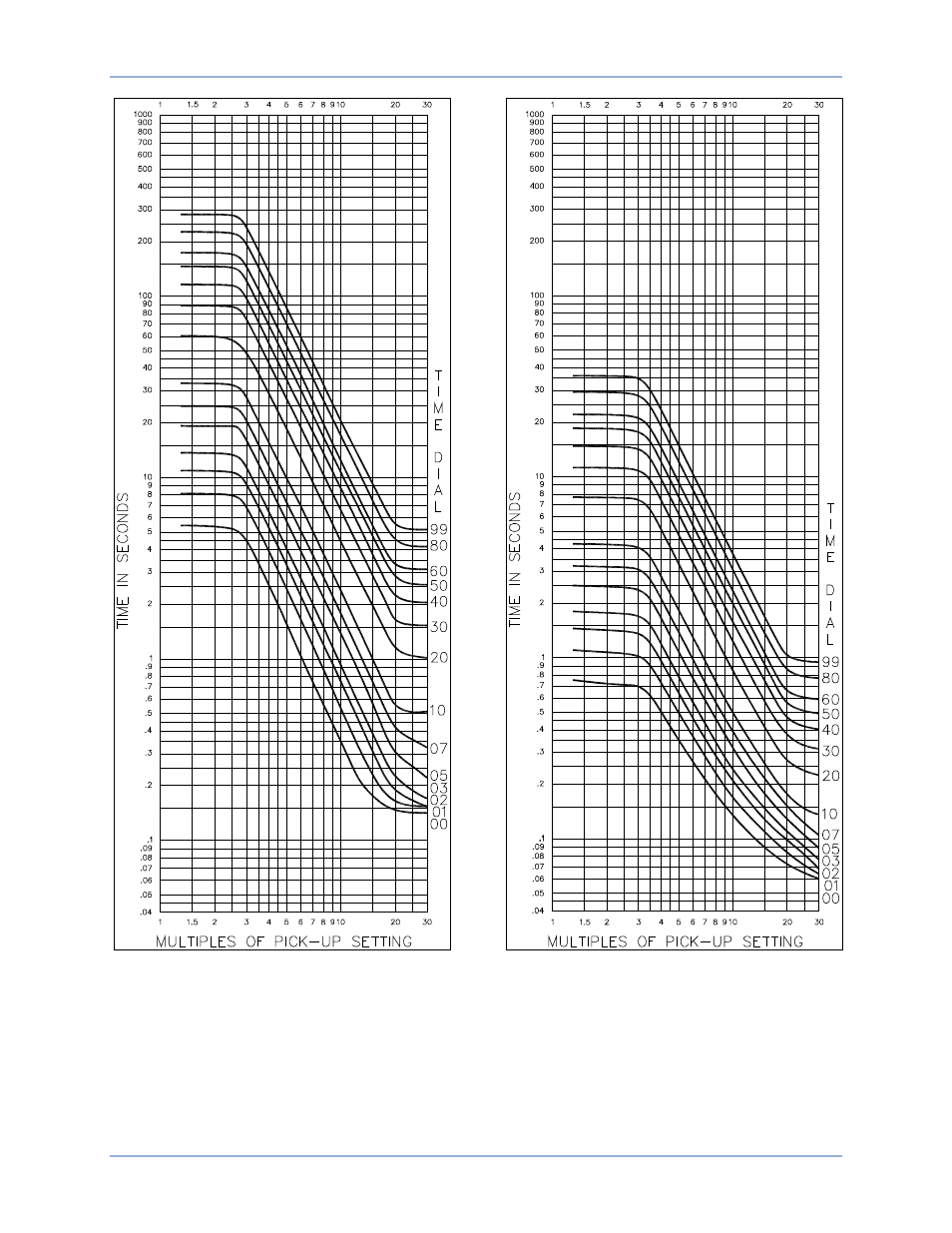

Figure 91. Timing Type C5, I 2 t Limit #5 with
Integrated Algorithm and Extended Timing
Figure 92. Timing Type C6, I 2 t Limit #6
with Integrated Algorithm
P
0
0
4
9
-6
4
P
0
0
4
9
-6
5
Time Overcurrent Characteristic Curves BE1-51
