FS q n [x
L
x
H
y
L
y
H
d
1
...d
k
]
1
...[x
L
x
H
y
L
y
H
d
1
...d
k
]
n
[Function]
Define NV bit image.
[Format] ASCII
FS
q
n [x
L
x
H
y
L
y
H
d
1
...d
k
]
1
...[x
L
x
H
y
L
y
H
d
1
...d
k
]
n
Hexadecimal 1C 70 n [x
L
x
H
y
L
y
H
d
1
...d
k
]
1
...[x
L
x
H
y
L
y
H
d
1
...d
k
]
n
Decimal 28
112
n [x
L
x
H
y
L
y
H
d
1
...d
k
]
1
...[x
L
x
H
y
L
y
H
d
1
...d
k
]
n
[Range] 1 ≤ n ≤ 255
0 ≤ xL ≤ 255
0 ≤ xH ≤ 3 (when 1 ≤ (xL + xH × 256) ≤ 1023)
0 ≤ yL ≤ 255
0 ≤ yL ≤ 1 (when 1 ≤ (yL + yH × 256) ≤ 288)
0 ≤ d ≤ 255
k = (xL + xH × 256) × (yL + yH × 256) × 8
Total defined data area = 2M bits (256K bytes).

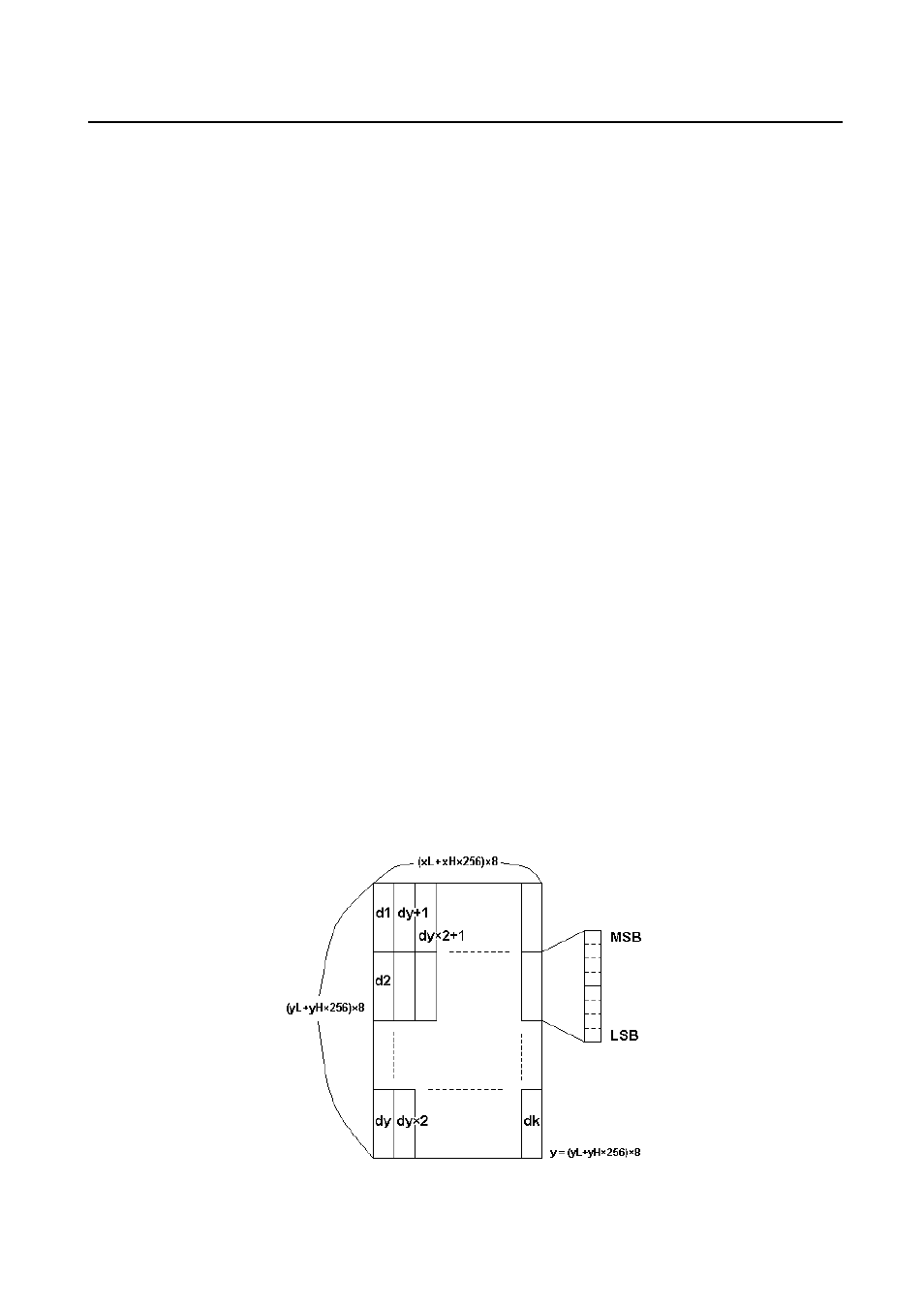

[Description] Define n NV bit images that are stored on non-volatile memory.
• n specifies the number of defined NV bit images.
• x
L
, x
H
specifies (x
L
+ x
H
× 256) × 8 dots in the horizontal direction for the NV
bit image you are defining.
• y
L
, y
H
specifies (y
L
+ y
H
× 256) × 8 dots in the vertical direction for the NV bit
image you are defining.
• This command cancels all NV bit images that have already been defined by
this command.
The printer can not redefine only one of several data definitions previously
defined. In this case, all data needs to be sent again.
