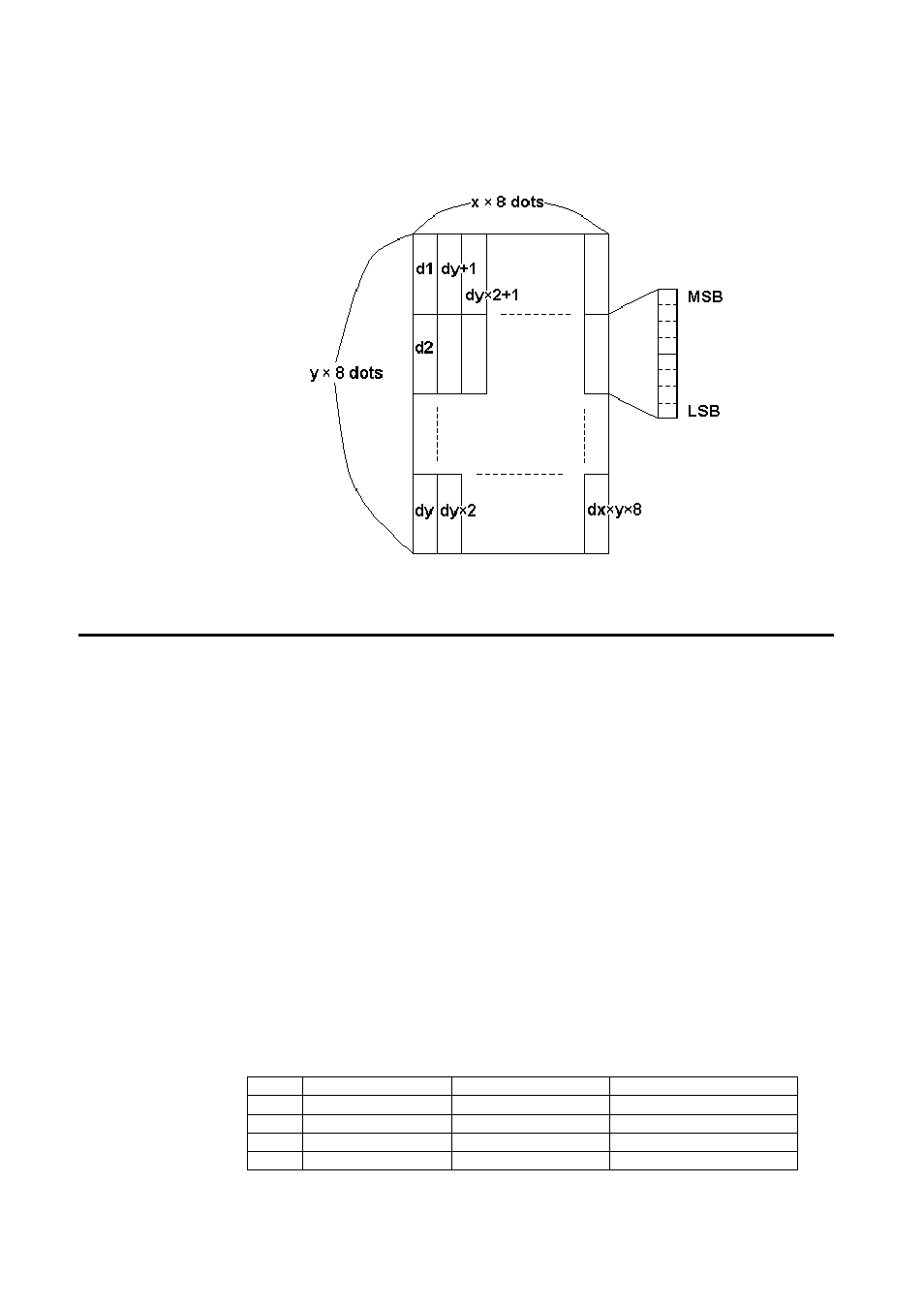

• The following figure shows the relationship between the downloaded bit
image and the printed data:
GS v 0 m x
L
x
H
y
L
y
H
d
1
...d
k
[Function]
Print raster bitmap.
[Format] ASCII GS v 0 m x
L
x
H
y
L
y
H
d
1
...d
k
Hexadecimal 1D 76 30 m x
L
x
H
y
L
y
H
d
1
...d
k
Decimal 29 118 48 m x
L
x
H
y
L
y
H
d
1
...d
k
[Range]
0 ≤ m ≤ 3, 48 ≤ m ≤ 51
0 ≤ x
L
≤ 255
0 ≤ x
H
≤ 255
0 ≤ y
L
≤ 255
0 ≤ y
H
≤ 8
0 ≤ d ≤255
k = (x
L
+ x
H
× 256) × (y
L
+ y
H
× 256) (k ≠ 0)
[Description] Print raster bitmap using the mode defined by m:
m Mode Vertical Dot Density Horizontal Dot Density
0, 48 Normal 180 dpi 180 dpi
1, 49 Double-width 180 dpi 90 dpi
2, 50 Double-height 90 dpi 180 dpi
3, 51 Quadruple 90 dpi 90 dpi
[dpi: dots per 25.4 mm {1"}]
