Step4
Align the card interface with the slot and press down vertically to install the card on the board. Then,
align the screw eye with the card bracket.
Step5
Fasten the card on the bracket with dedicated screws, making sure the card is level and firm.
Step6
Install the interface board and power it on.

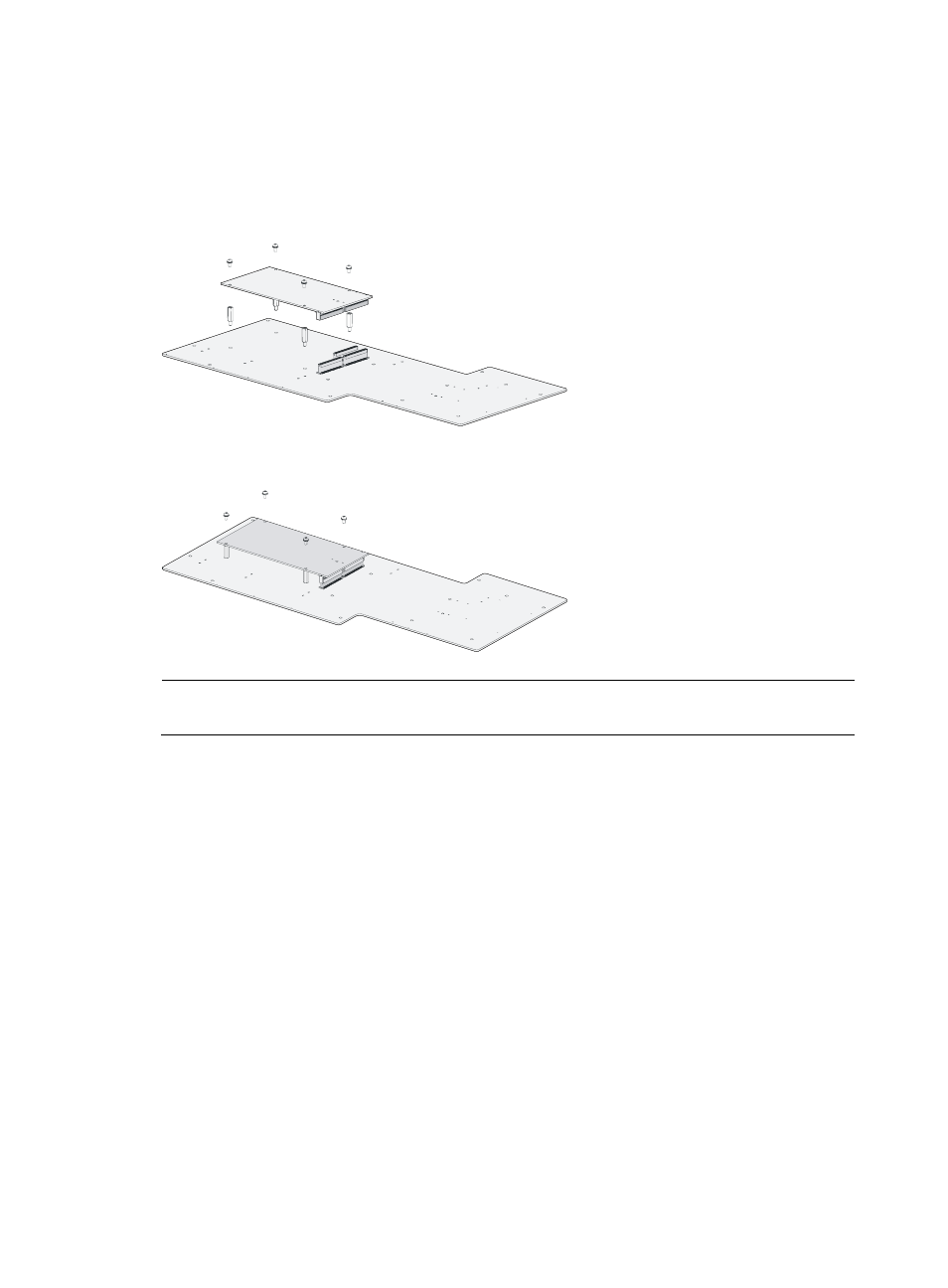

Figure 65 Fix the base
Figure 66 Fasten the card on the base with screws
NOTE:
Perform the steps inversely to remove the card.
