70
Camera Signal Cables
Base Station Cables

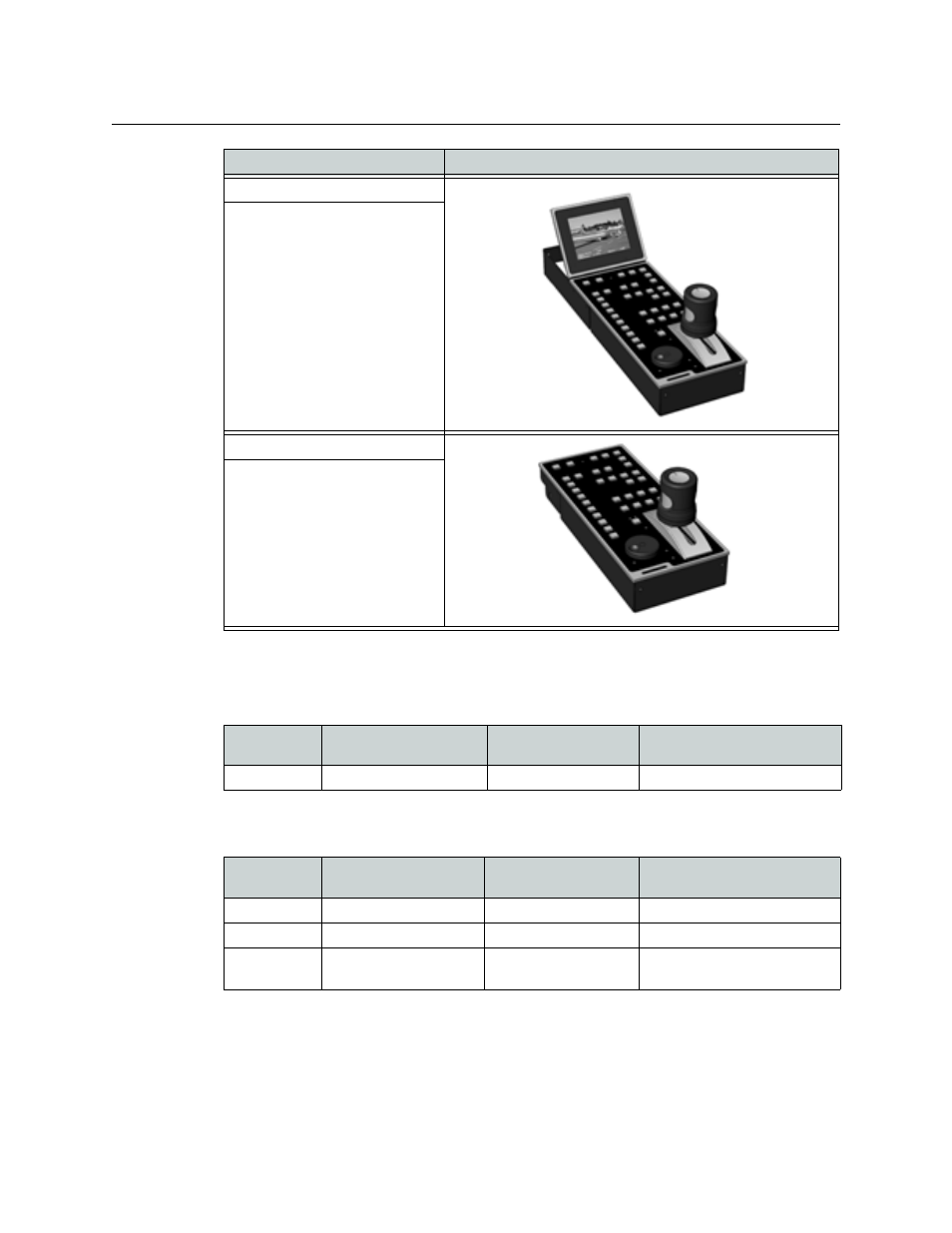

CHRCP-2050-LCD
Universal Camera Control Panel w/
TFT-LCD Display
CHRCP-2050A
Universal Camera Control Panel
Cable
Description
Item Number
Cable is Wired with
Connectors
Typical Equipment Used with
Cable
Breakout cable CH3CS-3400-BO-BF1-D9F1 DB15HD to BNC-F, DB9F Ext Intercom Trigger, Ext Tally I/O
Cable
Description Item Number
Cable is Wired with
Connectors
Typical Equipment Used with
Cable
Audio Input CH3BAI-DB25-5XL3F DB25 to 5 XLR3-F Audio input sources
Audio Output CH3BAO-DB25-2XL3M DB25 to 2 XLR3-M Audio output devices
Data.Tally CH3BS-3400-BO-GPI-
DATA DB15HD to DB9 F and
pigtails Data2 and Tally I/Os
Item Number/Description Image
