Chapter 4
INSTALLATION AND USE MANUAL
page
22
Installation and assembly
Technical service – MCZ S.p.A. all rights reserved - Reproduction prohibited
It is advisable to:
• Position the hot air outlets at a height of at least 2 mt. above
the floor so that the hot air does not flow directly onto people.
• Insulate the air duct pipes.
• Do not exceed 1.5 mt of ducting for each outlet.

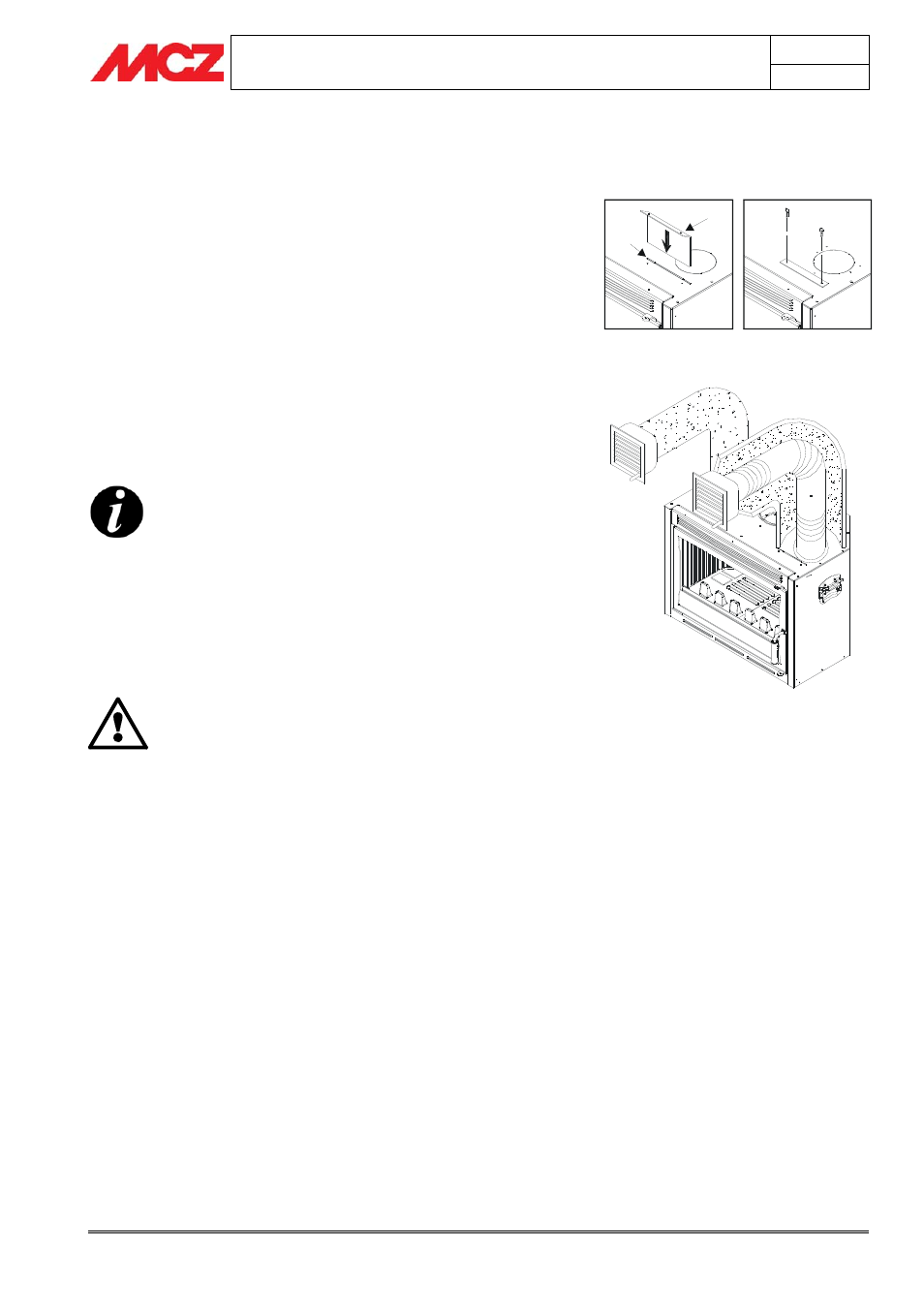

The Superclima model also provides the possibility to install appropriate
buffers (F), which deflect the air flow to convey it inside the duct
piping. We recommend those using the air ducts to assemble these
flow deflectors for improved air flow to the outlets.
To install the buffers, they must be inserted in the appropriate
openings (G) after removing the semi-sheared plugs, and then blocked
with the appropriate screws provided.
Installation of the buffers allows to divide the air flow, sending about
70% towards the air ducts and 30% towards the front hot air outlet
grille.
The front hot air outlet cannot be completely
obstructed since it is necessary to cool the front part
of the structure.
It is also advisable to insulate the ducting pipes to
avoid the vibrations transmitted by the fans and
forced air.
4.9. FORCED VENTILATION KIT ASSEMBLY for SUPERCLIMA
THE COMPANY IS NOT LIABLE FOR DAMAGES DUE
TO INCORRECT CONNECTIONS OR IMPROPER USE
OF THE DEVICE.
The Superclima insert is supplied with a forced ventilation kit including:
(1) Radio control complete with internal battery
(2) Fan cable with plug and terminals
(3) Power supply cable with plug and socket
(4) FC700 or FC715 control unit with built-in radio receiver
(5) Centrifugal fan 300m
3
/h 220v-50Hz
(6) Probe cable with rapid coupling connector and thermostat (MODEL FC700) or
(7) Probe cable with rapid coupling connector and thermostat (MODEL FC715)
F
G
