3 Installation
Follow the steps below to set up the Fidelio System.
3.1 Charging Station/Touchscreen Tablet
 You will need to first connect the touchscreen tablet to the charging/configuration base
using the tablet bracket.
3.1.1 Connection of the Tablet Bracket to the Configuration/Charging Station
Base
 Place the Fidelio configuration/charging station base upside down near the edge of a
table so that the tablet bracket can hang down and sit flush to the bottom of the base.
 Line up the 4 (four) holes of the tablet mounting bracket to the 4 (four) holes of the
charging/configuration base.
 Using a Phillips screwdriver, carefully secure the tablet mounting bracket to the
charging/configuration base using the (4) - M3x6 Black Flat Head Machine Screws
provided.
3.1.2 Installation of Tablet into the Stand Bracket

Turn the Fidelio configuration/charging station base over so that it is sitting upright.
 Loosen the tablet clip screws (Figure 14).
 Slide the touchscreen tablet from the right-hand side of the bracket grooves until the
tablet is centered on its mounting bracket.
 Tighten the tablet clip screws to secure the touchscreen tablet in the bracket.

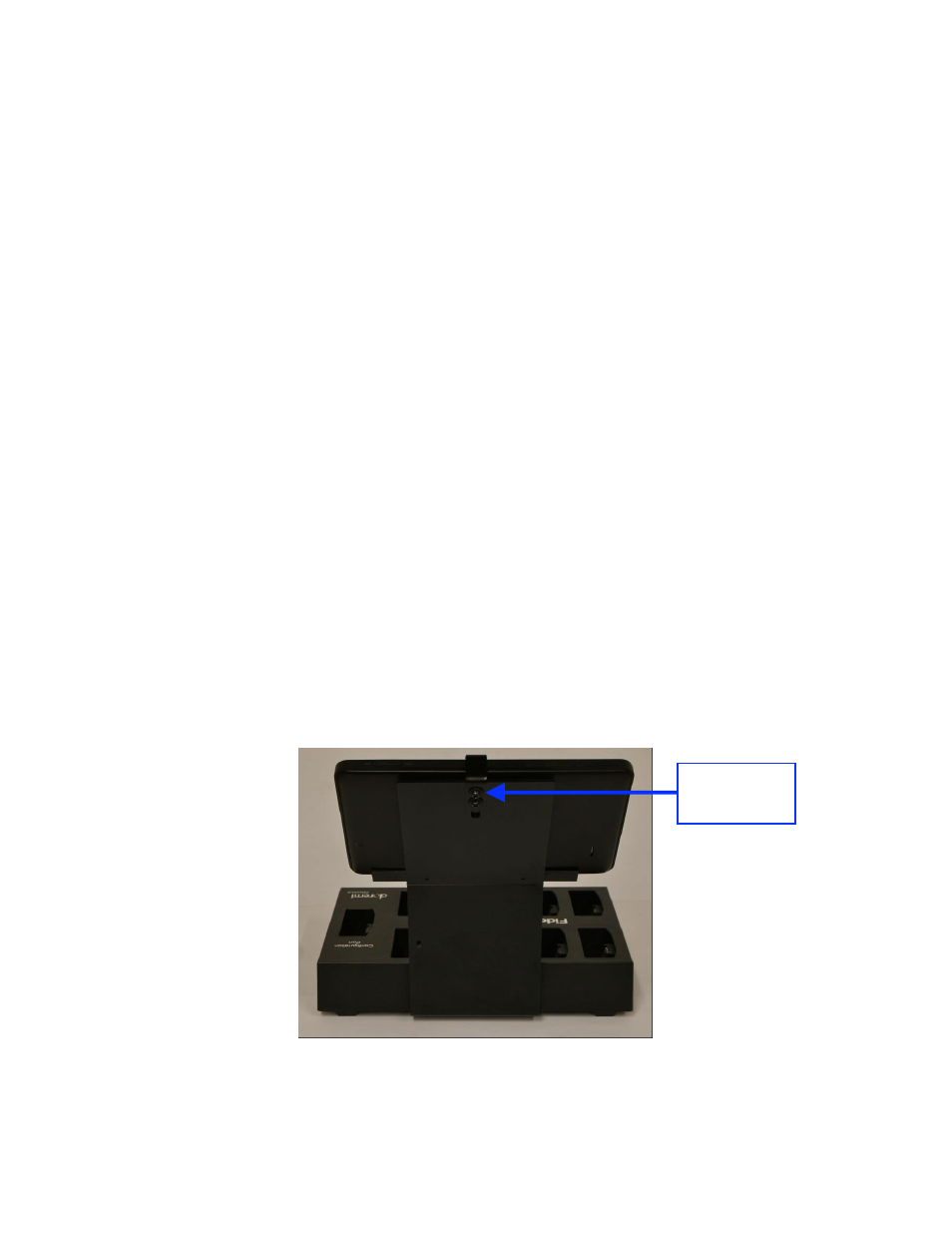

Figure 14: Charging Station Rear View
Tablet Clip
and Tightening
Screws
