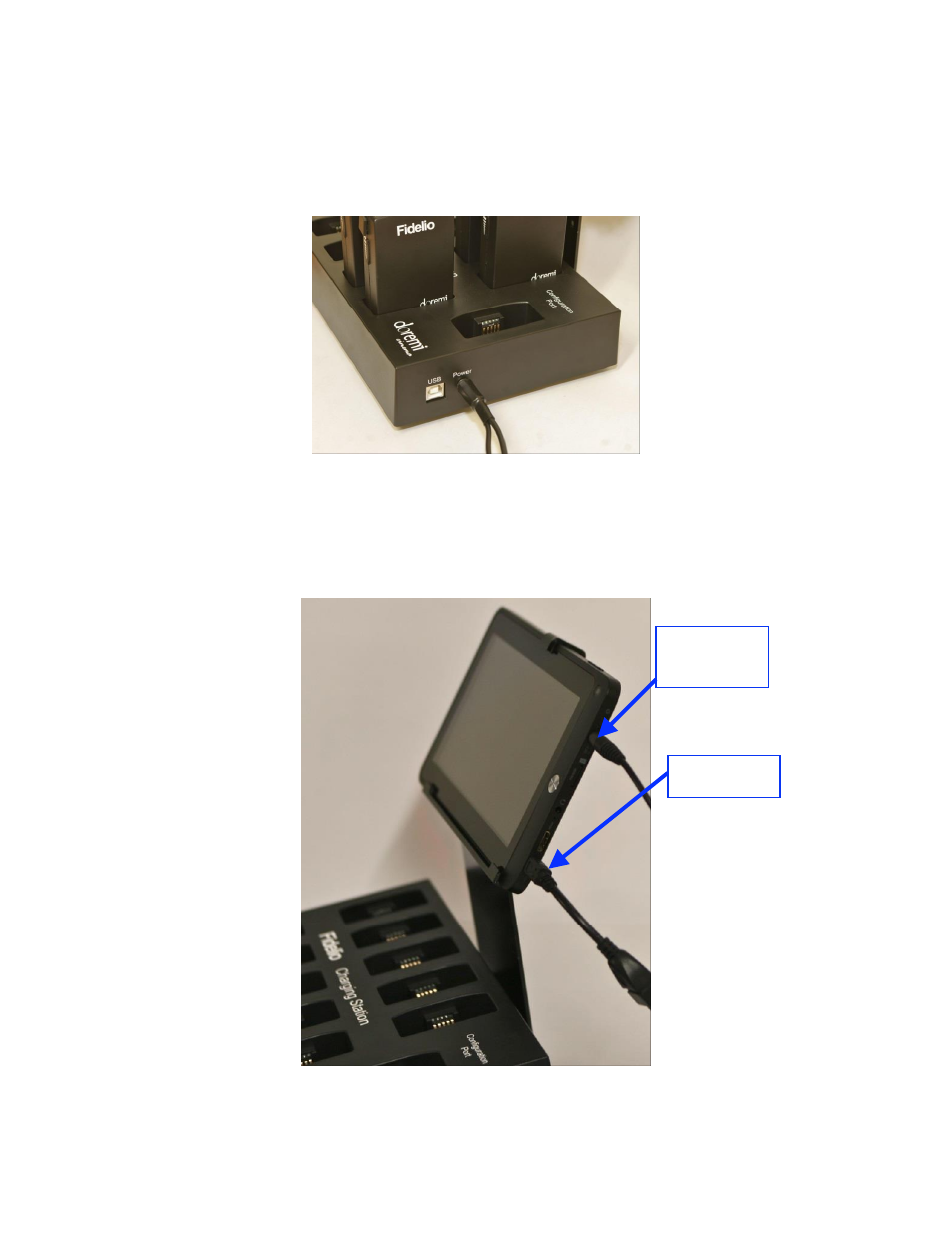

3.1.3 Power Supply Connection
 Plug the “Y” Power Supply cable into the port labeled “Power” on the
charging/configuration base (Figure 15).
Figure 15: Power Port
 Plug the small end of the connector with the yellow tip into the touchscreen tablet port
labeled “DC IN 5V,” which is located on the right-hand side of the touchscreen tablet
(v.1.1.2 Figure 16; v2.2.0 Figure 17).
Figure 16: Tablet (v1.1.2) Power Connector
DC IN 5V
Tablet Power
Connector
Micro USB
Cable
