FDO.OM.001852.DRM
Page 43 of 77
Version 1.5
Doremi Labs
Ch.14 is Input: ch.14 is pass-
through, meaning the output channel “X” will be playing
the CPL's audio channel “X.”
Ch.15 is Input: ch.15 is pass-
through, meaning the output channel “X” will be playing
the CPL's audio chan
nel “X.”
Ch.16 is Input: ch.16 is pass-
through, meaning the output channel “X” will be playing
the CPL's audio channel “X.”

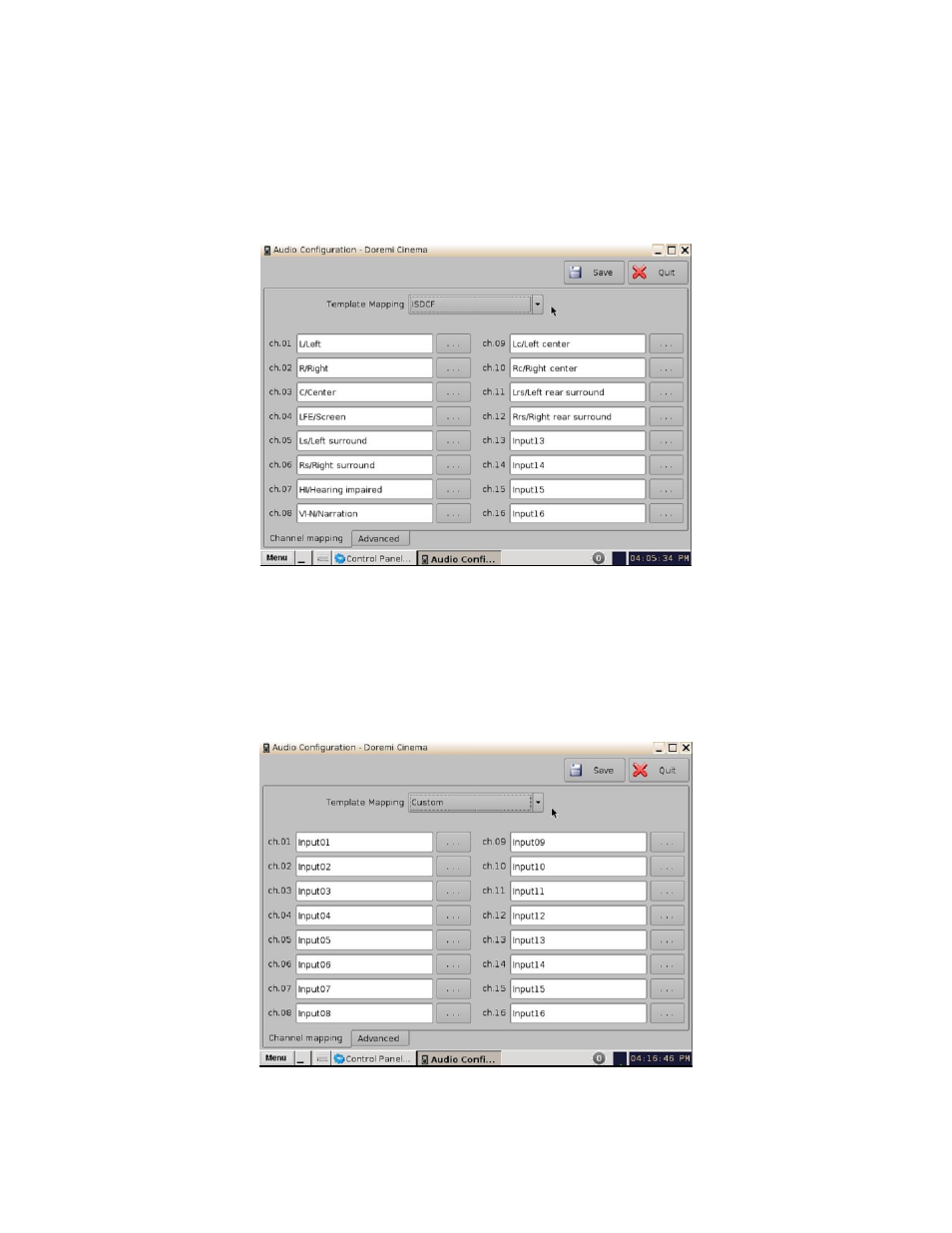

Figure 48: Audio Mapping Set to ISDCF
5.2.1.3
Custom Mapping Configuration
Click on the drop-down menu and select Custom.
The following window will appear (Figure 49).
Figure 49: Custom Mapping
