Ch.05 is Surround (S): Output ch.05 will be playing the CPL's Surround (S) audio
channel.

Ch.06
– Ch.14: These channels are pass-through, meaning the output channel “X” will
be playing the CPL's audio channel “X.” “X” will be a value between 6 and 14.

Ch.15 is HI: Output ch.15 will be playing the CPL's Hearing Impaired (HI) audio channel.
 Ch.16 is VI: Output ch.16 will be playing the CPL's Narration (VI) audio channel.

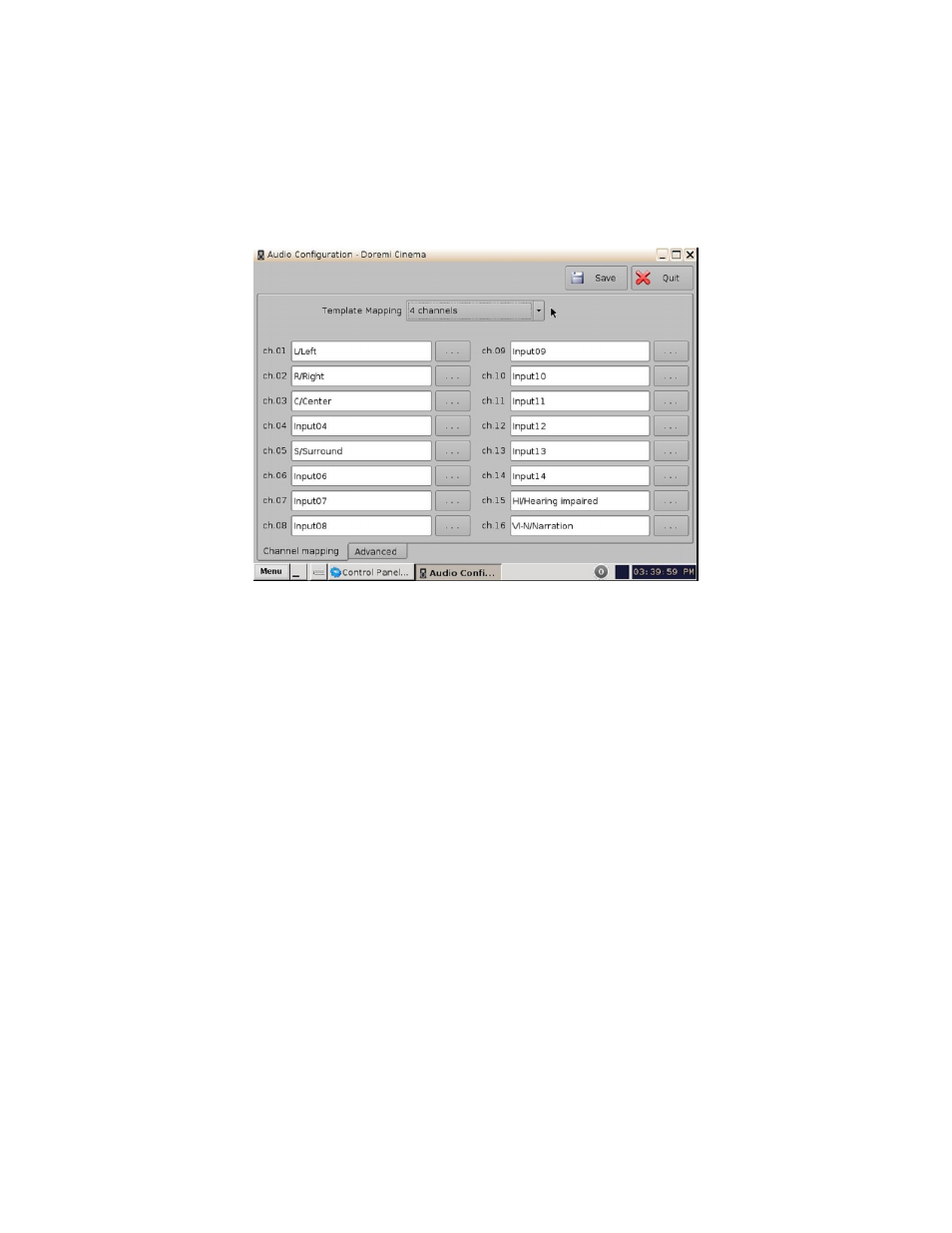

Figure 43: Audio Mapping Set to 4 Channels
5.2.1.2.2 6 Channels
This configuration is defined as follows (Figure 44):

Ch.01 is Left (L): Output ch.01 will be playing the CPL's Left (L) audio channel.
 Ch.02 is Right (R): Output ch.02 will be playing the CPL's Right (R) audio channel.
 Ch.03 is Center (C): Output ch.03 will be playing the CPL's Center (C) audio channel.
 Ch.04 is LFE/Screen (Sub-Woofer): Output ch.04 will be playing the CPL's LFE/Screen
(Sub-Woofer) audio channel.
 Ch.05 is Left Surround (Ls): Output ch.05 will be playing the CPL's Left Surround (Ls)
audio channel.
 Ch.06 is Right Surround (Rs): Output ch.06 will be playing the CPL's Right Surround
(Rs) audio channel.
 Ch.07 – Ch.14: These channels are pass-through, meaning the output channel “X” will
be playing the CPL's audio channel “X.” “X” will be a value between 7 and 14.
 Ch.15 is HI: Output ch.15 will be playing the CPL's Hearing Impaired (HI) audio channel.
 Ch.16 is VI: Output ch.16 will be playing the CPL's Narration (VI) audio channel.
