7.2 Satellite Input Configuration (LE100-SR)
For LE100-SR, due to the presence of Satellite card, equipment is intended to be installed
by a service person and has installation instructions that require the equipment to be
connected to a socket-outlet with a protective earthing connection.
If you are using the LE100-SR with a satellite tuner installed, you must also configure the
satellite inputs for live streaming.
Note: These settings are not displayed if the correct satellite board is not properly installed.

Go to the Administration tab, click on the Control Panel link followed by the Input Feed
Manager link.
 Under Input Configuration, select “sat0,0” or “sat0,1” (depending on which satellite input
you wish to configure).
Note: “sat0,0” and “sat0,1” are the default names for the satellite input ports. These can be
renamed as desired.

Select the Modulation, FEC, Disceq, Tone, Inversion and Polarity to use. Type in the
proper Frequency and Symbol Rate values. Then click on the Save button (see Figure
11).

The new settings will be effective without rebooting.

When the settings are entered correctly and there is a signal currently available, the
status section will show green for Enabled, Signal Lock and Status. The program list will
also be displayed on the right hand side of the interface.

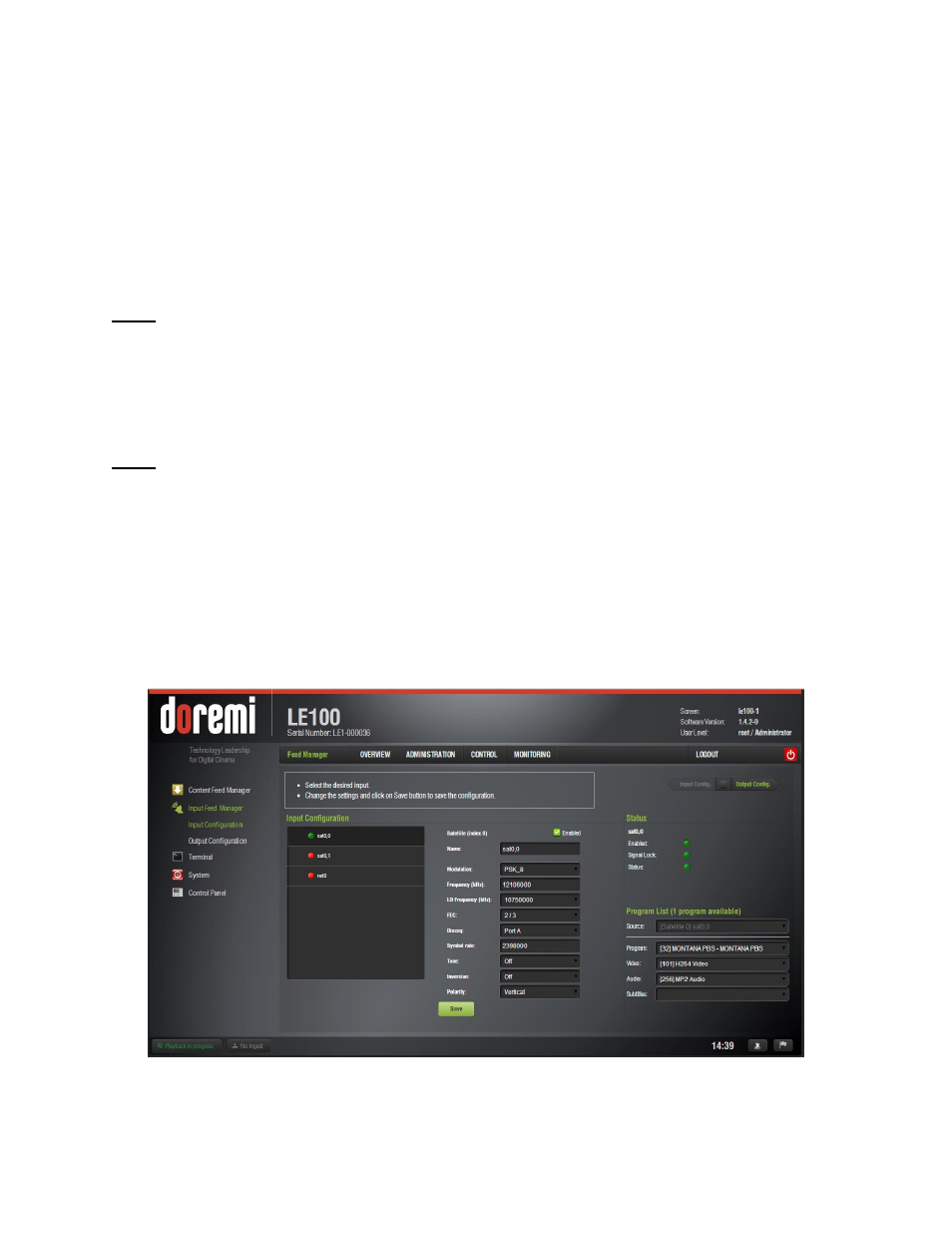

Figure 11: Input Configuration – Satellite
