12.1.2 Recording a Live Stream
 To record a live stream, first make sure the recorder settings have been configured as
described in Section 7.

Click
on the “Record” button and the Record Setup dialog window will appear (see
Figure 20).

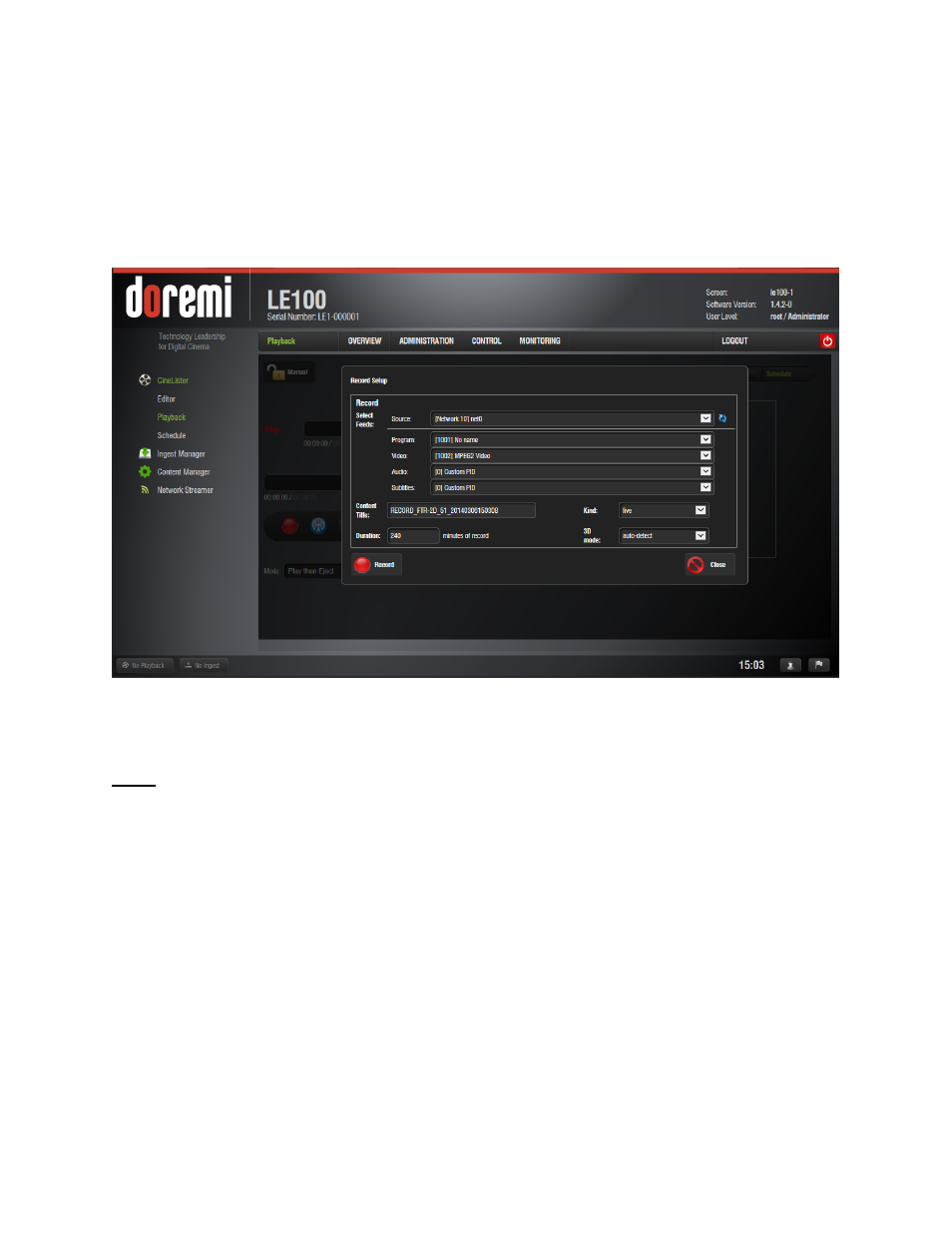

Figure 20: Record Set Up
 Choose the feed source (Network or Satellite).
Note: The satellite source is only displayed on LE100-SR or if the correct satellite board is
properly installed.
 Select the appropriate Program, Video, Audio and Subtitle ID’s from the incoming
stream.

Enter the desired name, duration and type of recording in the Record Setup window.
 If the stream is 2D, leave the 3D mode set to “auto-detect”. If the stream is 3D, select the
appropriate 3D format.

Select the Record button.
 The LE100 will recognize the live stream and begin saving the stream to the internal
hard drive.
o The LE100 will load the recording into the player but it does not automatically
start playback.
o If the Playback window shows “Waiting for Signal”, there may be a problem with
the stream format or the network setup.
