7.5 Live
Once you have established which M preset memories will be used to create this Master Memory, click the
SAVE button to Save the Master Memory.
The Master Memory is now saved, and can be recalled by the LOAD MASTER MEMORY button or simply by
drag and drop the master memory to the screen windows. Remember that like the single-screen memories,
one click on a Master Memory will load it to the location of the currently selected layer. If no layer is selected,
the single click method of loading will not work.
To rename or delete a Master Memory, hold the Shift key and click on the Master Memory.
RESET ALL PROGRAMS and ALL PREVIEWS buttons enable to reset all programs and all previews from all
screens.
LOAD MONITORING LAYOUT:
During your live session, you may want to change the layout of the monitoring output. You can load any user
layout you previously saved from the Monitoring configuration area.
SEQUENCER:
The Sequencer feature is all new as of version 2.00. This version brings many improvements to the sequencer,
including sequences of variable length, variable action between sequencer events, and sequencer control of
memories and master memory presets, but also actions like loading a library frame to the frame slot.

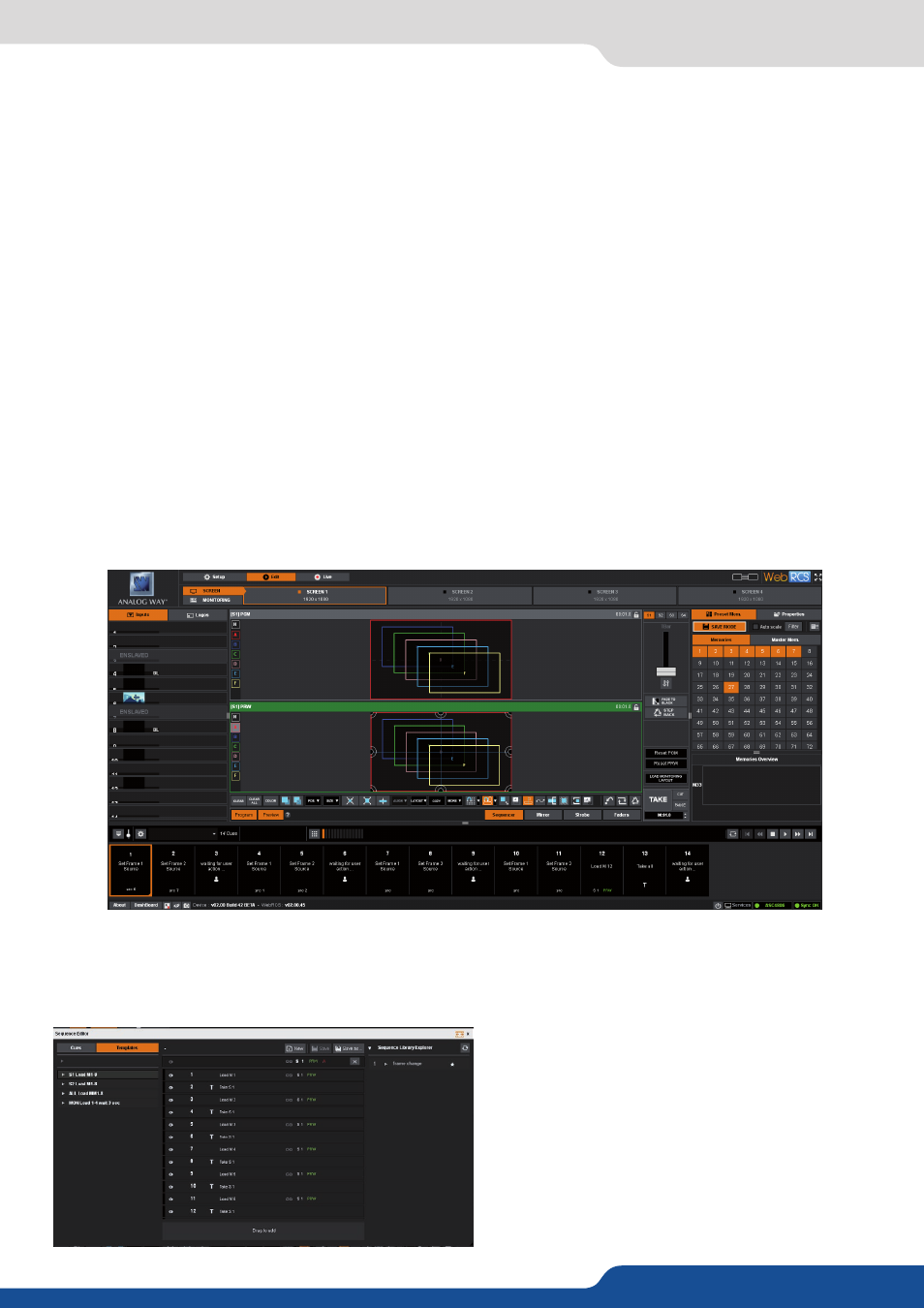

The sequencer is found at the bottom of the Edit and Live pages. Click on the SEQUENCER button to expand
the sequencer toolbar.
A default sequence will be displayed. To open the Sequence Editor, click on the configuration gear icon on the
left side of the sequencer toolbar.
The Sequence Editor shows the current sequence
in the middle, a list of the saved user sequences
on the right, and a on the left, a list of either pre-
configured Template sequences, or a list of pos-
sible Cues to add to your sequence.
To load a sequence from either the preconfigured
templates or the user created Sequence Library,
double click it or drag it to the Sequence list. Only
one sequence can be loaded at a time.
