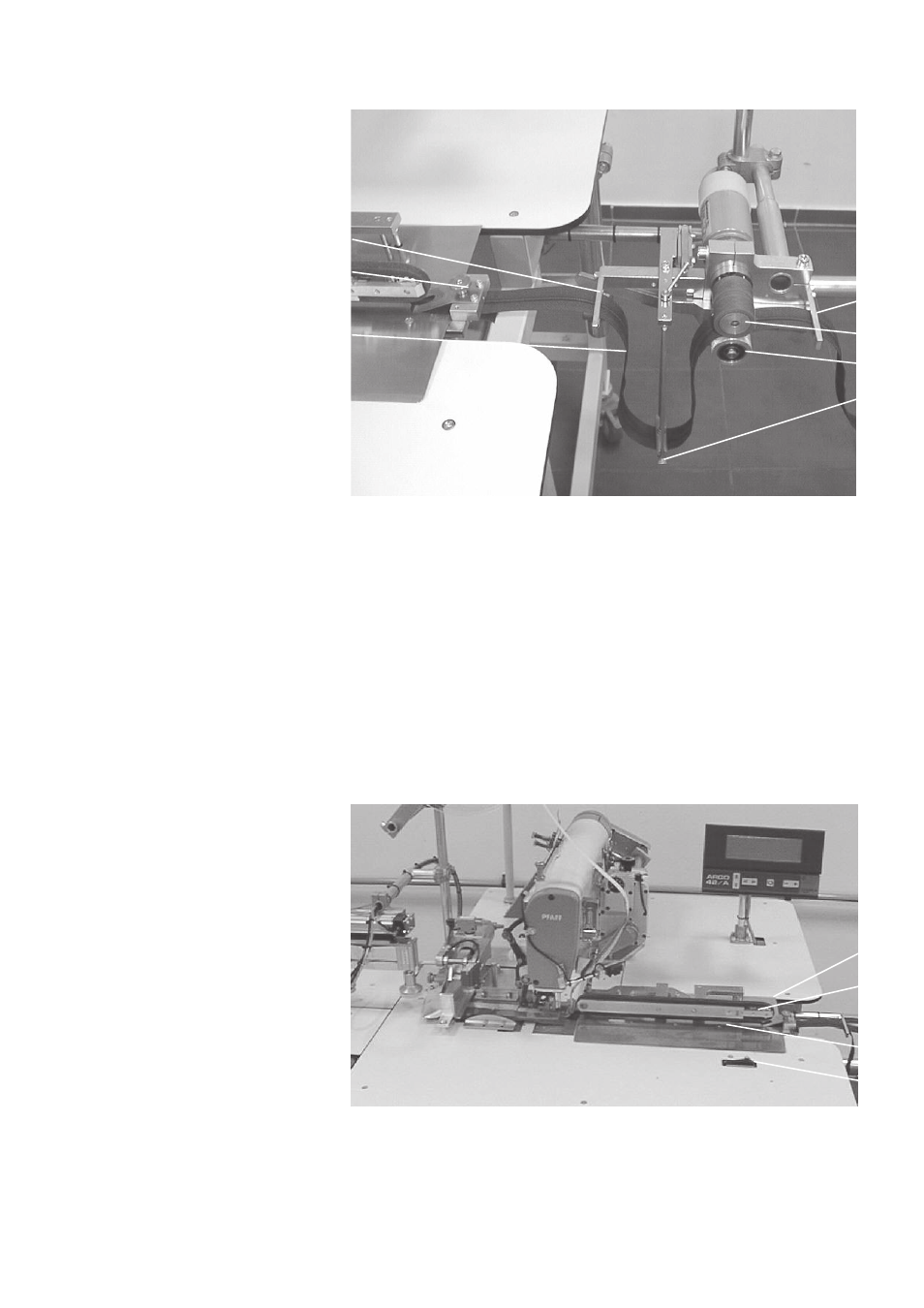

5.2 Pull-off device
1
2
3
4
5
6
7
The pull-off device assures a tension-free insertion of the zipper into the
machine.
The zipper (7) comes through the front guiding (1) and then between driving roll
(2) and pressure roll (3). Then it comes around the pull switch (4) before it is
inserted under the cover through the rear guiding (5) and the insertion area (6).
If the zipper is pulled into the machine, the pull switch is pressed upward what
switches the motor on. The zipper will be inserted by the drive roll, until the
pull switch releases the contact.
5.3 Insertion area
In the insertion area, the zipper is located beneath a cover plate (1), on which
a stop (3) is mounted, where the fly piece can be aligned. After pressing the
start button (4), the transportation belt (2) will be lowered and pushes the fly
piece together with zipper and back-up tape under the sewing head.
1
2
3
4
