Donut Robot Mark II-Gas OM MN-1017EN 15

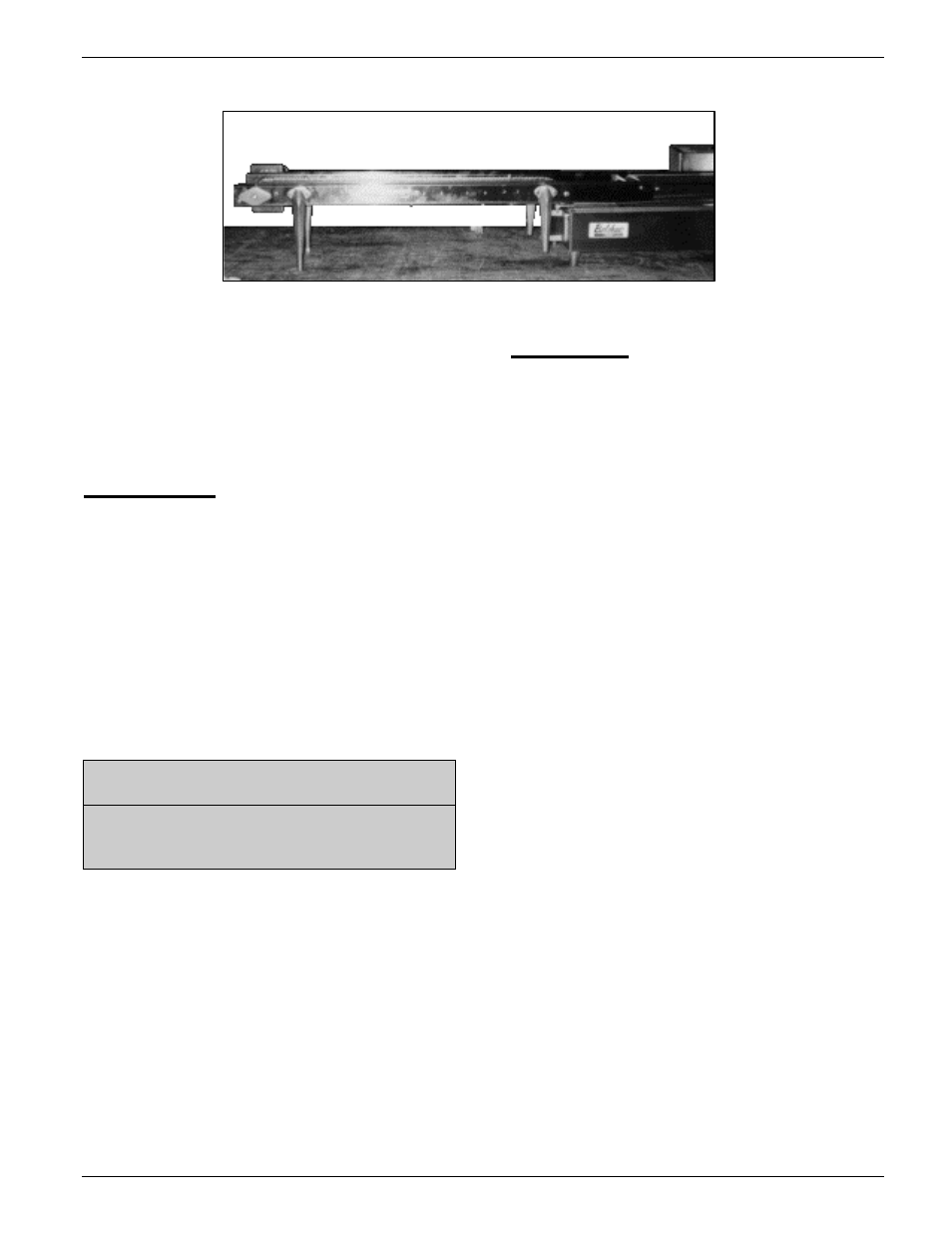

Figure 4-1. FT-42 Feed Table.
The FT-42 Feed Table is designed to supply
proofed yeast-raised donuts to the Donut Robot.
It is meant to be used on a flat, stationary table or
countertop, positioned end-to-end with the Donut
Robot. The operator is expected to read and
follow these instructions.
Installation
1. Unplug the cutter head power cord of your
Donut Robot.
2. Release the plunger from the cutter head.
3. Unscrew and lift off the hopper assembly.
4. Lift off the cutter head and swing column
assemblies.
5. Lift the outfeed end of the Feed Table and
set the brace under the trip shelf over the
edge of the kettle.
WARNING
To avoid injury, make sure that the Feed
Table is turned off before proceeding.
6. Plug the Feed Table power cord into the
outlet on the end of the heater head.
7. Set the Donut Robot to cut one cut per
pocket.
Operation
1. Test to make sure that the automatic timing
for the Feed Table is working. To do this:
a. Turn on the Donut Robot’s conveyor
drive.
b. Turn on the Feed Table’s conveyor
drive.
The Feed Table should receive a signal
from the Donut Robot, move forward the
distance needed to supply one pocket of
donuts, and then stop until it receives the
next signal.
2. Proof your donuts on the proofing cloths
from the Feed Table.
3. Put a proofing board, with a proofing cloth
on it, on the Feed Table.
4. Press the prime switch on the power head
assembly. The hooks on the Feed Table will
grab the proofing cloth off of the proofing
board. Allow the cloth to advance to the
front of the Feed Table.
5. Release the prime switch and turn on the
main power. Remove the proofing board.
When the Feed Table is on, the Feed Table
automatically advances donuts when the
Donut Robot is ready to accept them. After
the donuts go into the fryer, the proofing
cloths are carried underneath the Feed Table
and fall onto the work surface.
6. Continue putting proofing cloths on the Feed
Table.
