7.3.4.3 Interface Menu
Interface / TX Setup Menu

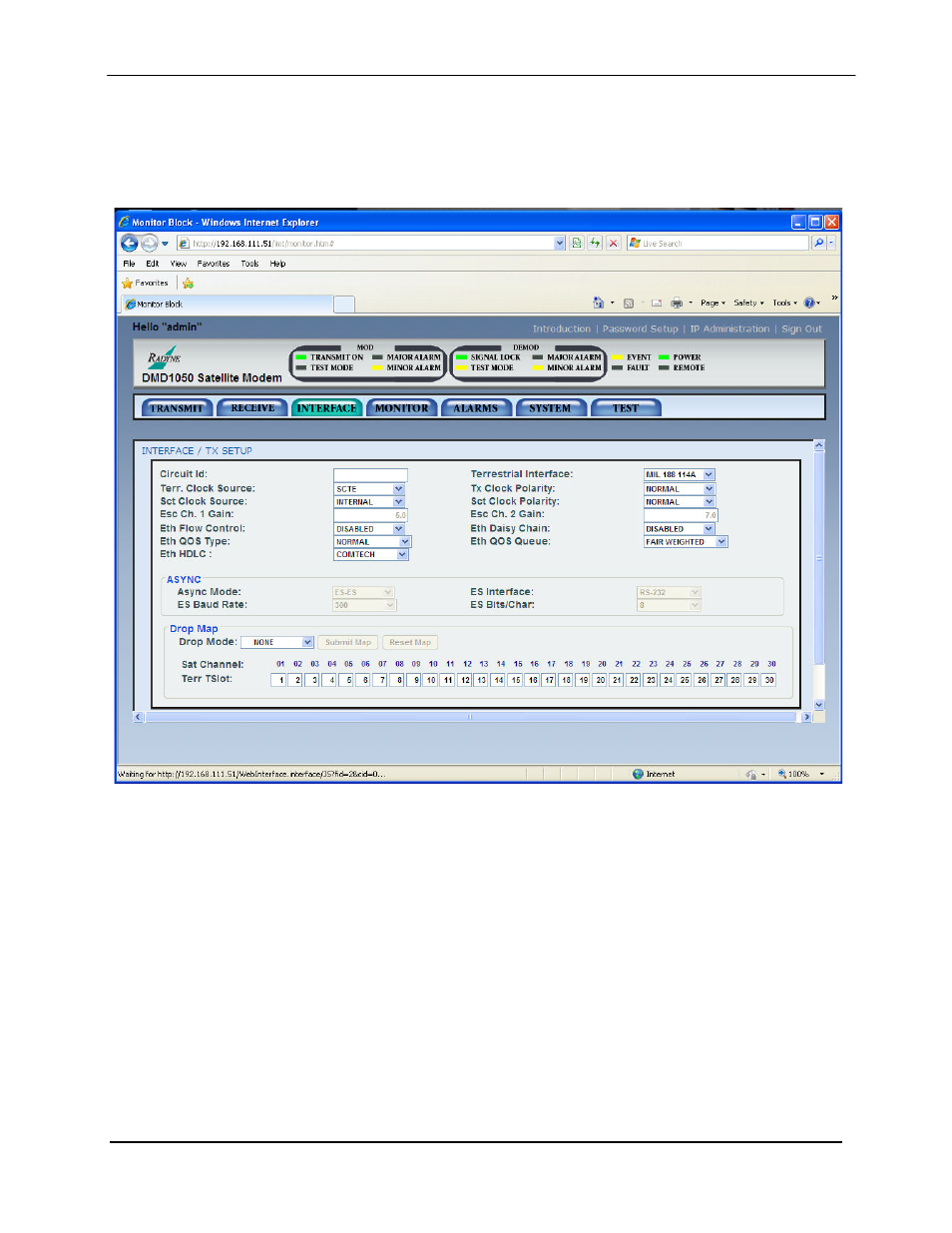

Figure 7-16. Interface / TX Setup Menu
Circuit ID :
Allows the user entry of a Tx Circuit Identifier. Circuits can be
given up to an 11 Character alphanumeric identity such as
LINK1.
Terrestrial Interface: {MIL 188-114A, ETHERNET}
Allows the user to select the Transmit Type.
Terr. Clock Source: {SCTE, SCT}
Allows the user to select the Transmit Clock Source.
Tx Clock Polarity: {AUTO, NORMAL, INVERTED}
Allows the user to select the Clock Polarity for the Tx Terrestrial
Clock relative to the Tx Data. “Auto” detects wrong polarity and
automatically corrects.
