6 0 1 P R O S E R I E S
X L
1 - 6
2
VDE EQUIVALENT
PATIENT LEAK-µA VDE EQUIVALENT
DEVICE LEAK-µA IEC 1010
ACCESSIBLE-V/µA
/
INSULATION-M VOLTS-V
ENCLOSURE
LEAKAGE-µA
1 0
CURRENT-A
5
PROTECTIVE EARTH
RESISTANCE- EARTH
LEAKAGE-µA
PATIENT AUXILIARY
CURRENT-µA PATIENT
LEAKAGE-µA
PRINT DATA
ESC/STOP
TESTS
VIEW PRESENT
SETTINGS
PRINT HEADER
MAINS ON AP
LEAKAGE-µA
8
3 4
7 6
9
CLASS I PROTECTIVE EARTH
CLASS II
CLASS IP
DOUBLE INSULATION
INTERNAL POWER SUPPLY
TYPE B NON-ISOLATED APPLIED PART
TYPE BF ISOLATED APPLIED PART
TYPE CF
TYPE F
TYPE T
ISOLATED APPLIED PART
DIRECT CARDIAC APPLICATION
FIXED DEVICE
TRANSPORTABLE DEVICE
ENT
601 Pro Series XL
INTERNATIONAL SAFETY ANALYZER
TESTS
PREVIOUS
A B
E F G H
C D
Baw152f.eps

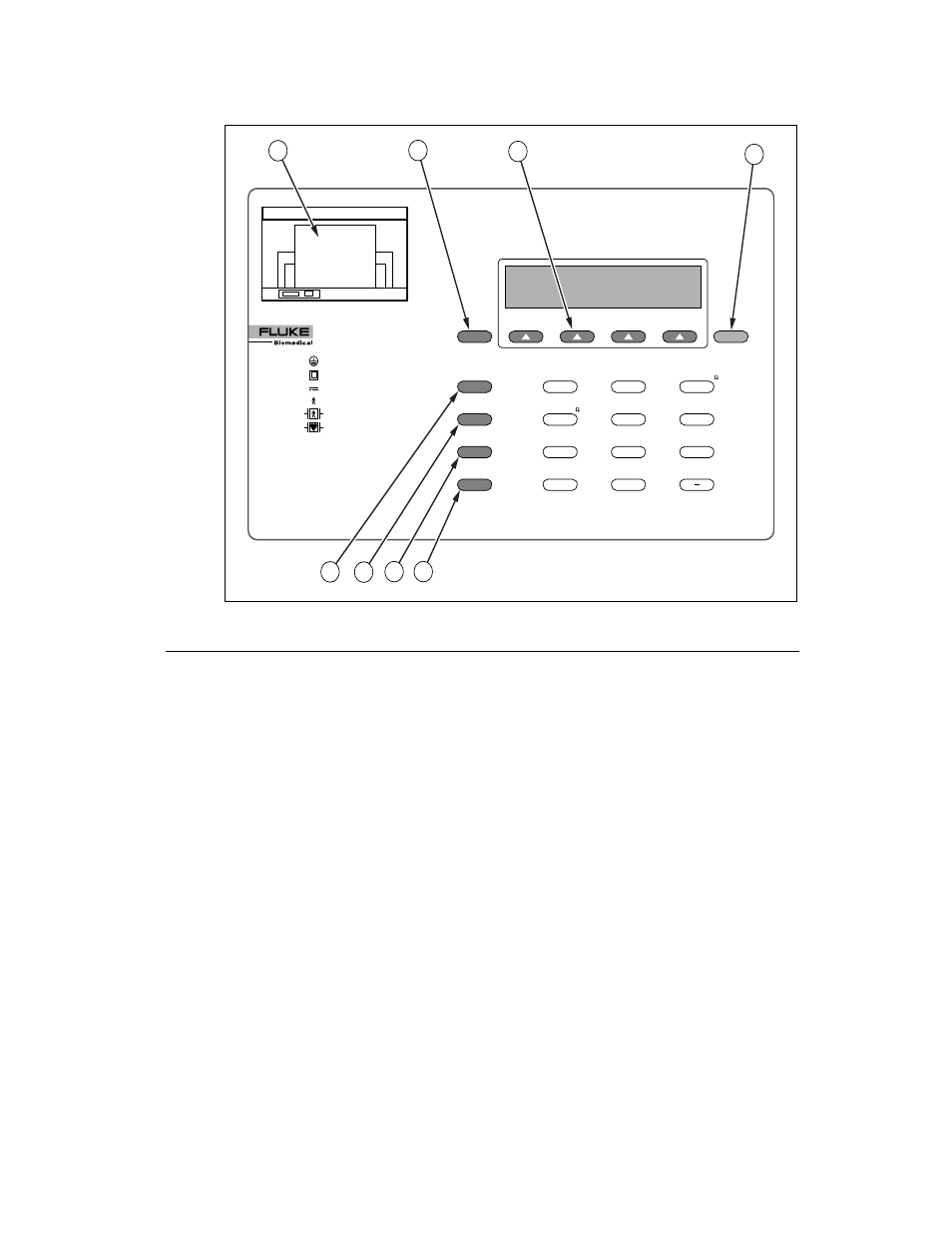

Figure 1-1: 601PRO Top Panel Illustration
Top Panel: Identifying 601PRO Components
Use the drawing of the 601PRO top panel, displayed above, to locate the
following components.
A Printer Optional 24-character printer for
immediate hard copy of results.
B Previous Key Returns user to the previous screen.
C Soft Keys 1-4 Make dynamic assignments based on
current screen.
D Enter Key Advances to the next menu or
saves/selects options.
E Esc/Stop Key Discontinues current test and returns
operator to the
MAIN MENU . Turns off
the DUT outlet.
F View Present
Settings Key Advances to View Present Settings
screen when at the
MAIN MENU .
Displays current settings and allows
operator to edit test standard, class/type,
and lead assignments (see page 3-7).
G Print Header Key Sends device information fields to
enabled printer.
H Print Data Key Sends displayed test data to printer.
