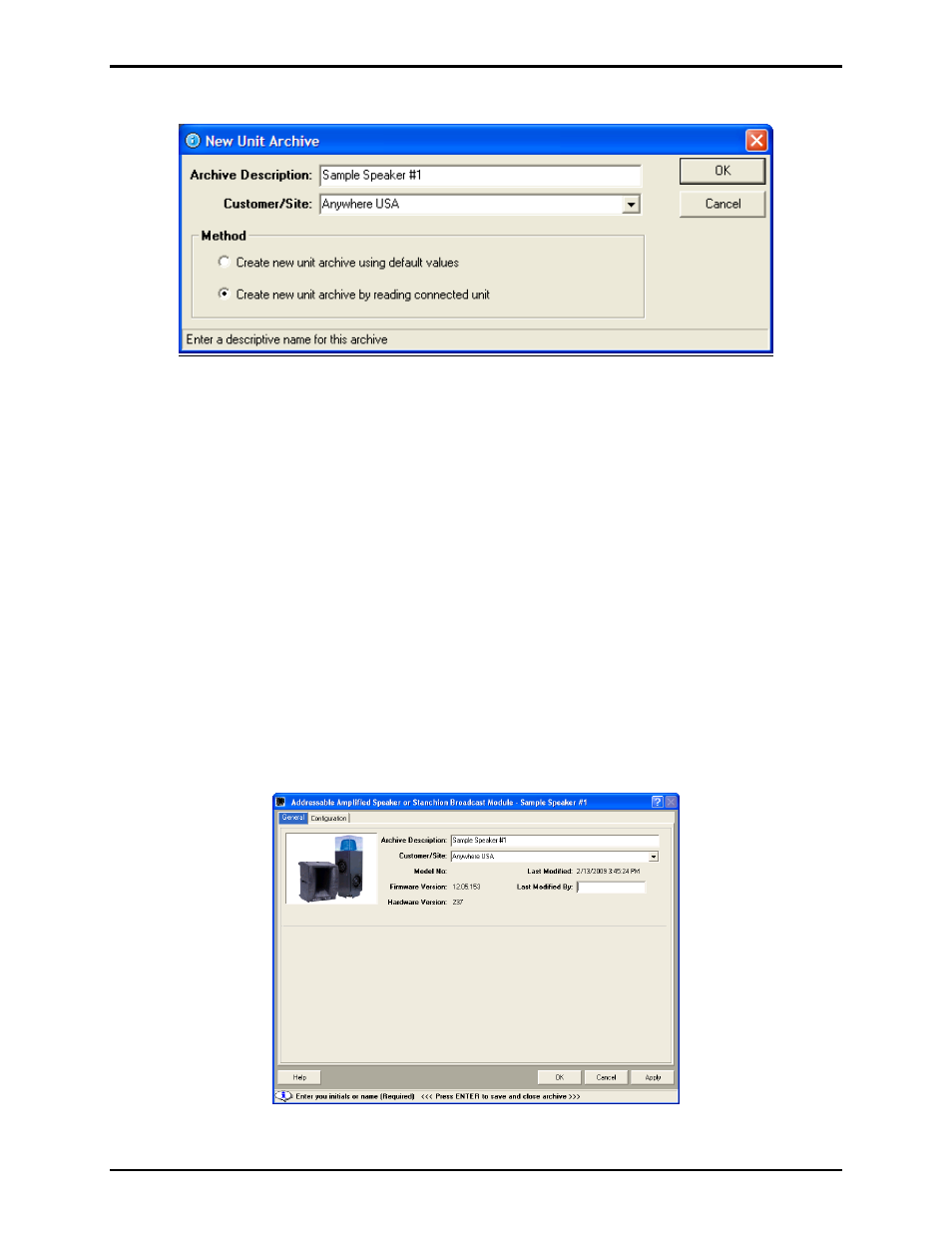

The following screen will be displayed when adding a new archive:
1. Enter an Archive Description for the paging module archive as shown above. The description is
generally the device’s location within the end-user’s facility or a tag number identification assigned
by the system installer.
2. Enter the Customer/Site description. This is generally the facility name. This entry is useful when
managing speakers at multiple facilities. It will allow the system administrator to easily sort the
speaker entries when making changes or updates to the speaker programming.
3. Select the archive creation Method using the radio buttons. To upload an existing configuration
from the connected paging module, select Create new unit archive by reading connected
unit .
If a paging module is not connected or the programmer wants to create a new archive starting with
default values, select: Create new unit archive using defalt values.
4. Select OK. The archive will be created and then opened for editing. (The “reading connected unit”
creation requires about 15 seconds.)
5. Enter a name or initials in Last Modified By field (optional). This is a method to track
programming changes by date and user.
