3. The Model 12510-002 or Model 12510-003 Access Panel Kit (sold separately) contains four #6-32
studs to attach the paging module. Attach the plate to the #6-32 studs with the provided #6 keps nuts.
Be sure to note the orientation of the access panel when attaching the plate. Refer to Figure 5.

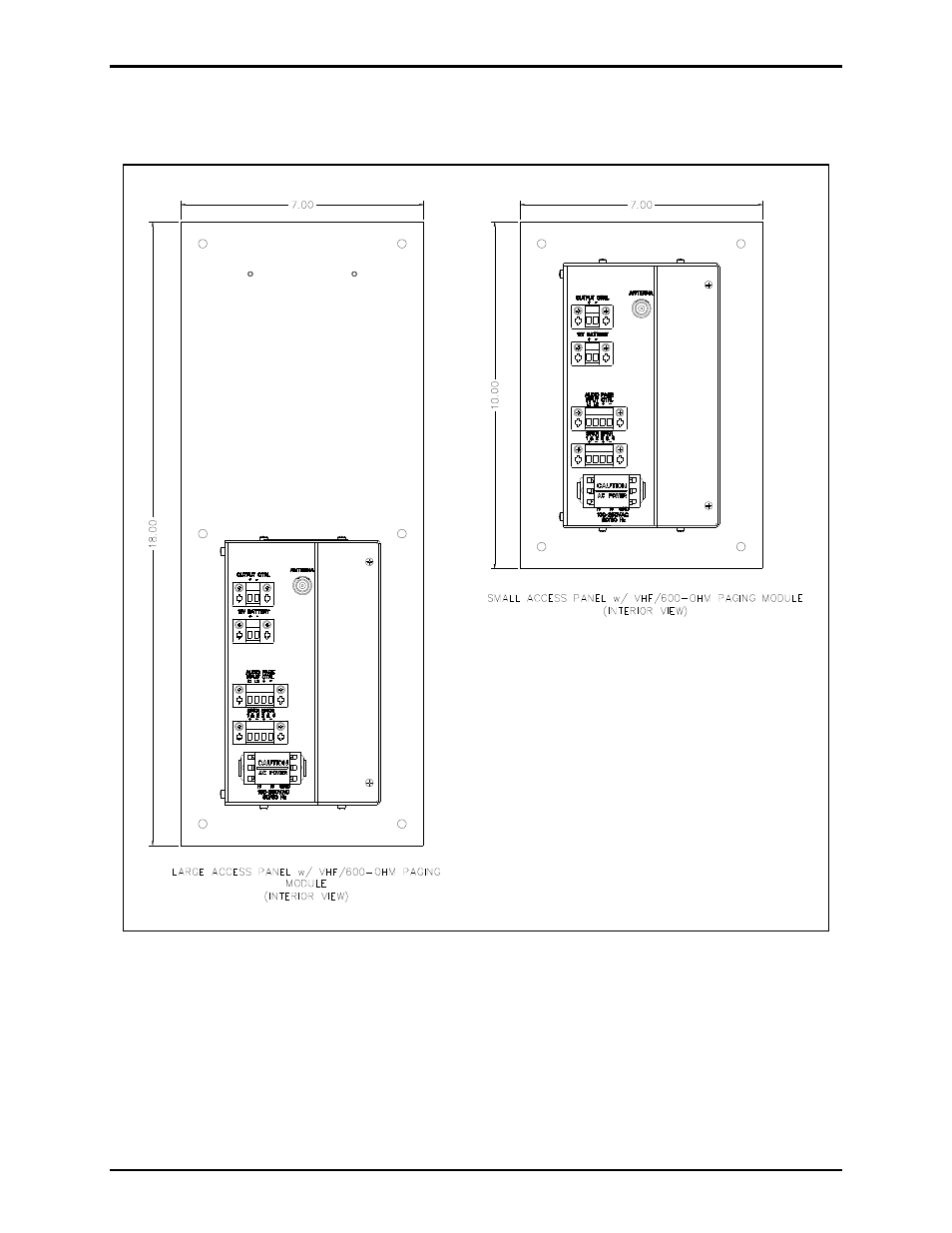

Figure 5. Electronics Paging Module Attachment to Front Panel
4. Attach the remainder of the paging module to the back plate/access panel assembly with the four #6-
32 screws. Note orientation of the module.
5. Attach the access panel/paging module to the Model 234 Stanchion.
