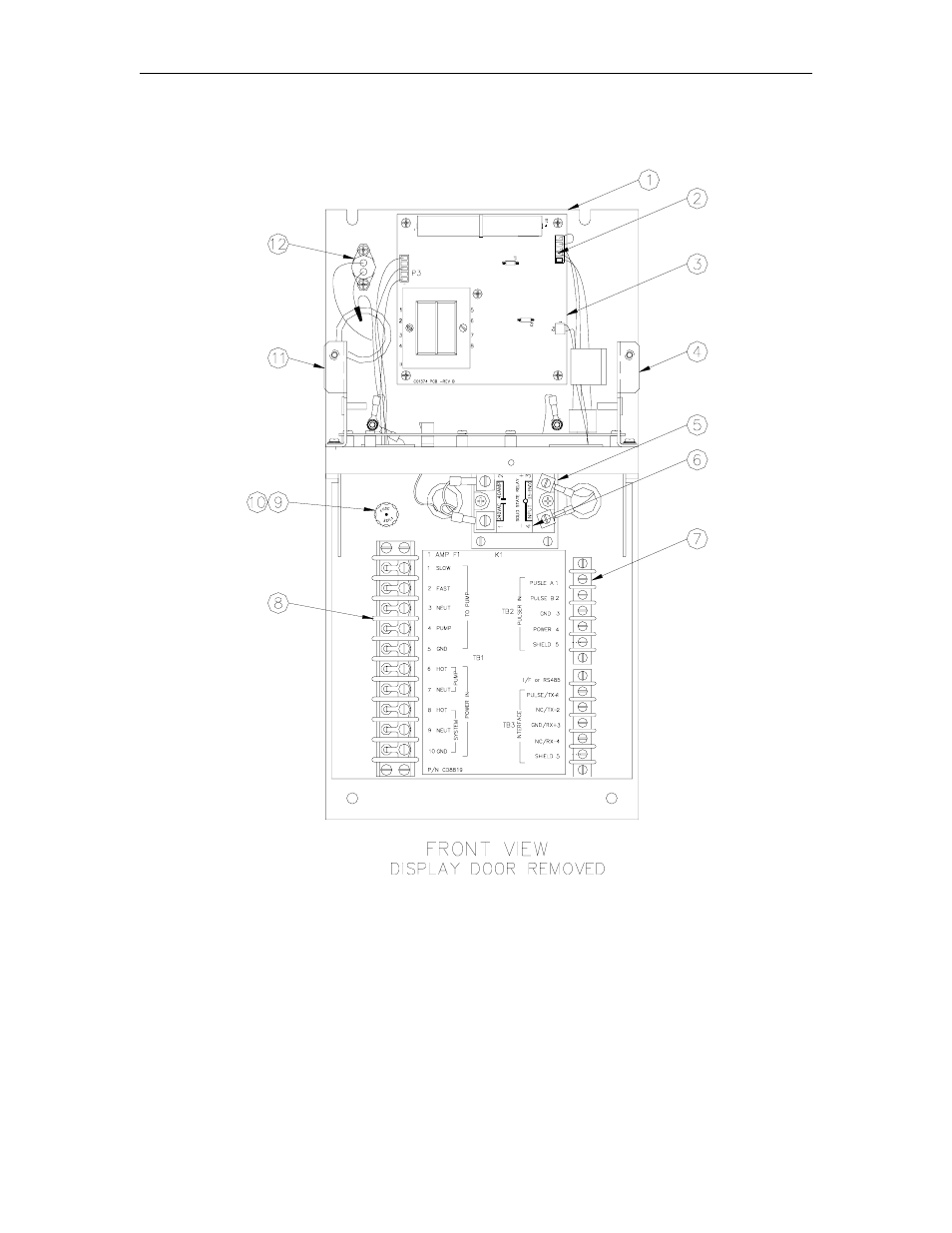

Remote Register Chassis Assembly - Front View
Item Part No. Description
1 C35584 Weld Assy, Chassis
2 C06679 Cable Assy., DC Power
3 C06396 PCB Assy., PS w/o Batt, 115V
C06397 PCB Assy., PS w/ Batt, 115V
C06488 PCB Assy., PS w/o Batt, 230V
C06489 PCB Assy., PS w/ Batt, 230V
4 C35538 Bracket Assy., RH Hinge
5 C06681 Relay Assy.
6 *C08746 Relay, Solid State
Item Part No. Description
7 C06674 Cable Assy., 5-pos. TB
8 C06675 Cable Assy., 10-pos. TB
9 C02065 Fuse Holder, 3AG, Solder
C09546 Fuse Holder, Quick Conn.
10 C04044 Fuse, 1 Amp SB 3 AG Glass
11 C35539 Bracket Assy., LH Hinge
12 C06677 Cable Assy., Heater, 120 VAC
C06721 Cable Assy., Heater, 240 VAC
*Indicates part is a subpart of the preceding part.
