GASBOY Series 9820Q
2
10/16/03

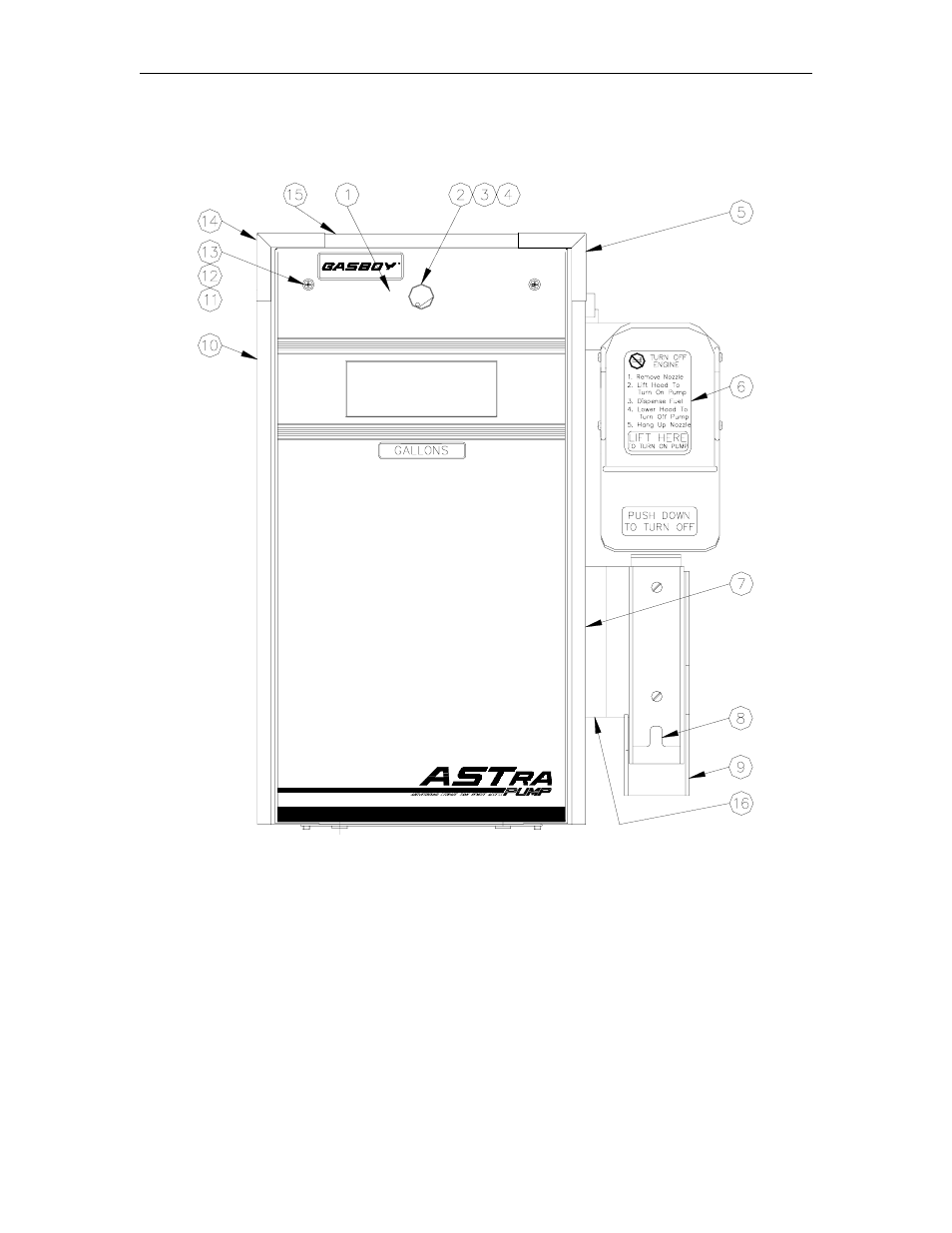

Remote Register - Front View
Item Part
No.
Description
1 040994 Door
Assy., Remote Register
(Specify brand and measure)
2 *035009
Lock,
90
o
, w/Cover and Seal
*099400
Key (Not Shown; Must supply
WMX # from lock)
3
C35698
Cam, Lock, Bezel, Series 900
4
*026808
Gasket, Lock, Black
5
065523
Trim, Corner, RH
6
023613
Decal, Operating Instructions
7
065522
Trim, PVC, Right
Item Part
No.
Description
8
015784
Bracket, Nozzle Support
9
015782
Bracket, Nozzle Locking
10
065521
Trim, PVC, Left
11
C08867
Screw, Captive 8-32 x 1/2
12
067666
Washer, Nylon Sealing
13
C08851
Washer, 8-32, Screw Retain
14
065524
Trim, Corner, LH
15 065520 Trim,
Top
16 015694 Bracket,
Tamper-proof
*Indicates part is a subpart of the preceding part.
