Parts List
10/16/03
13

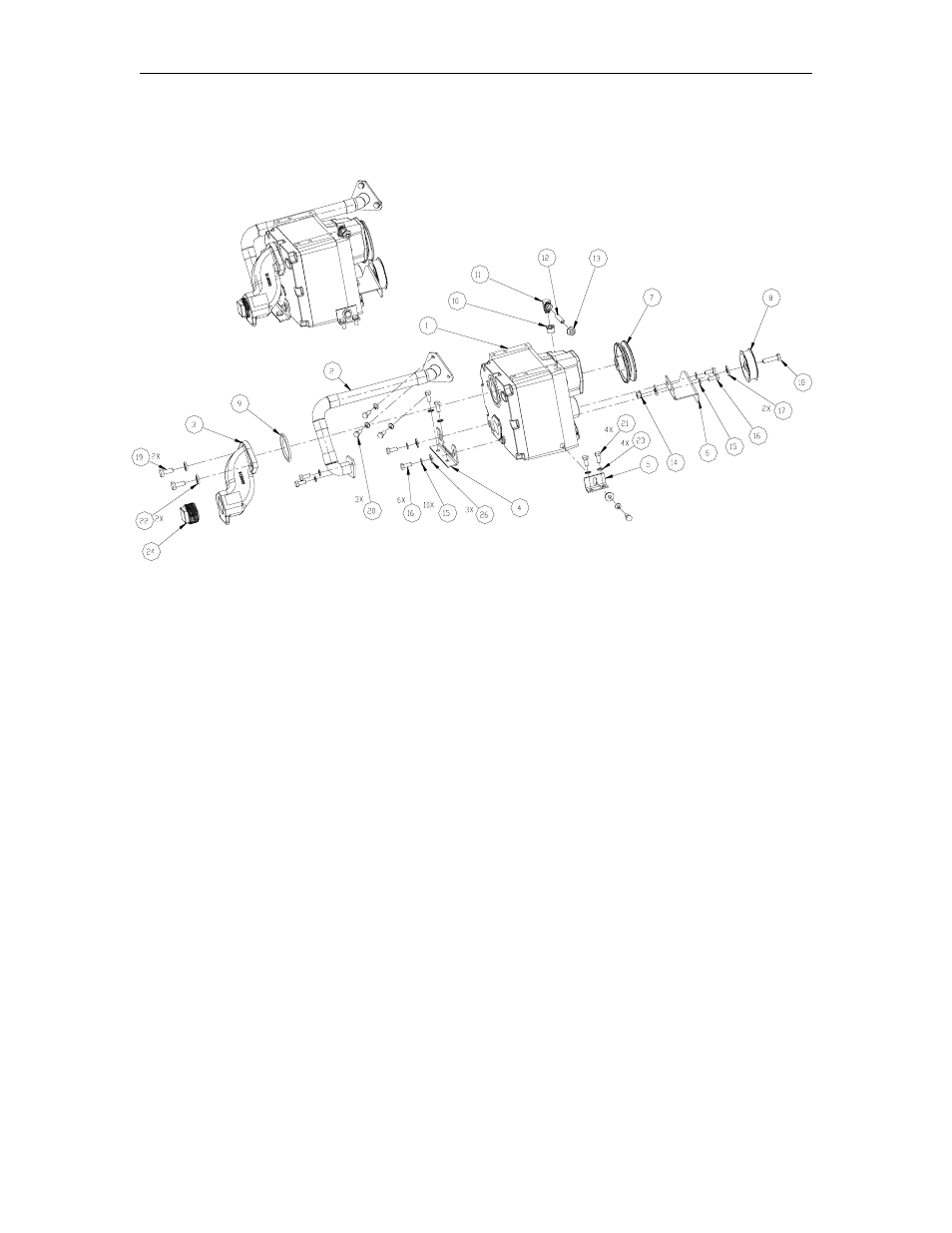

Pump
Item Part
No.
Description
1 049786 Pump,
Blackmer
2 063611 Tube
Assembly
3 003572 Inlet
Casting
4
041686
Bracket, Pump Mounting, Rear
5
041687
Bracket, Pump Mounting, Side
6
047307
Bracket, Idler Pulley
7
047293
Pulley, 5/8 Bore, 4"
8 047009 Pulley,
Idler
9
049185
Ring, Square, 2.42 Id
10
017266
Bushing, 3/8 X 1/4
11
026038
Fitting, El, 3/8 Flare
12
032419
Tube Vent Blackmer Pump
13 058021 Grommet
14
038621
Nut, Hex Keps, 3/8-16
15
068875
Lockwasher, Std, Spring, 5/16
16
052453
Screw, M8 1.25 x 20mm
17 068035 Washer,
3/8
18
052075
Screw, 3/8-16 x 1-1/2 HHC
19
052455
Screw M10 1.5 x 25mm
20
051895
Screw, 5/16-18 x 3/4, HHC
21
051821
Screw, 5/16-18-3/4 HHC SS
22
068920
Washer, Lock, Std Spring, 1/2
23
068874
Washer, Lock 5/16, SS
24
047243
Plug, 1-1/2 - 11-1/2 NPT
26 068080 Washer,
5/16
