Installing the X:1 EQ 25 XXX Pulser Kit
Page 6 MDE-4485 Gasboy Pulser Kits X:1 EQ 25 XXX Installation • June 2005

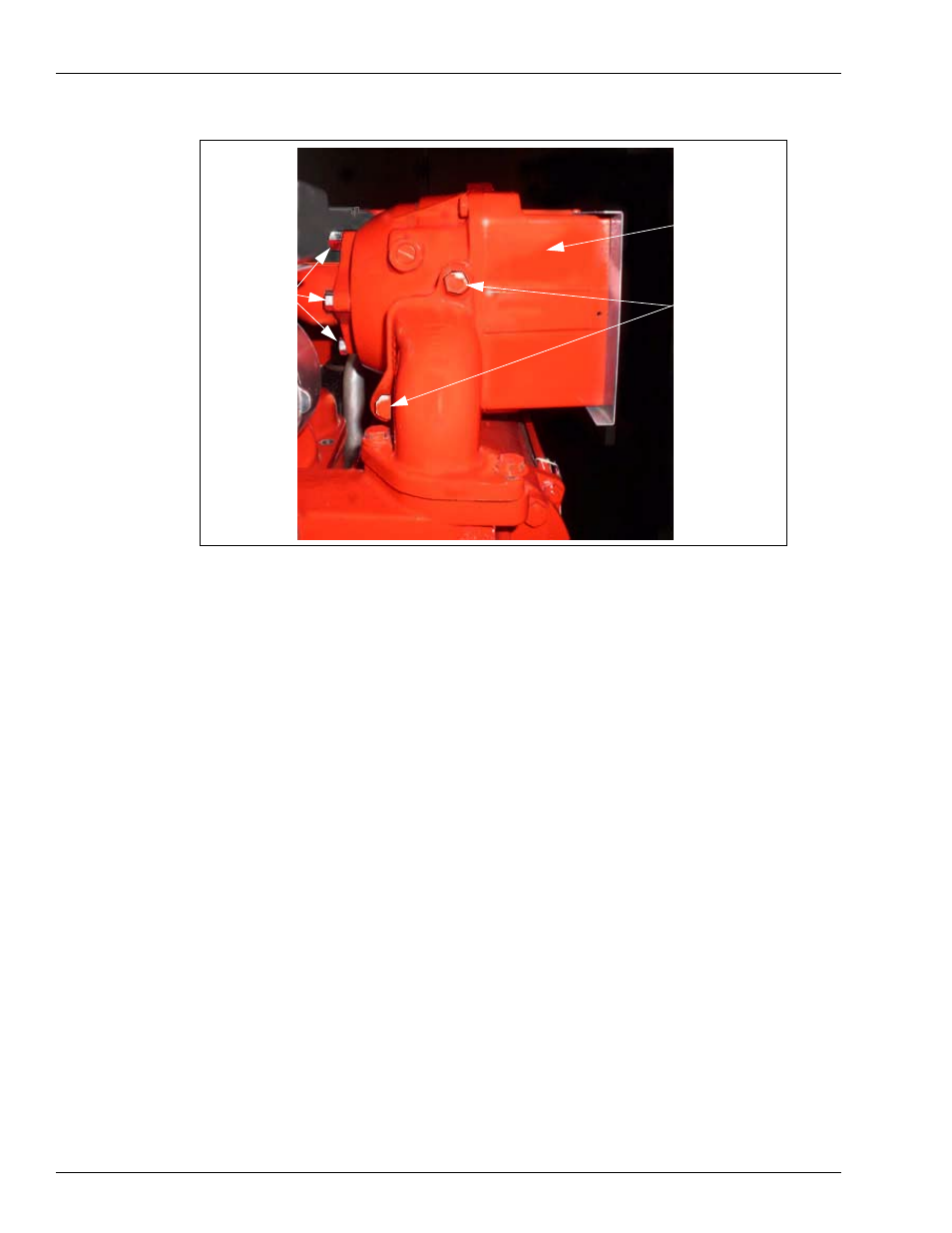

Figure 1: Meter Mounting (Left Side View)
Installing the Pulser Module
1 In the kit, locate the M06028A001 Pulser Module.
2 At the end of the pulser module conduit ( Figure 2 ), remove the union fitting. Keep fitting for
remounting later.
3 Position the pulser module on the unit as shown in Figure 2 .
4 Secure the pulser module in place by removing the two bolts indicated in Figure 2 , align the
mounting bracket holes with the bolt holes, and remount the two bolts.
5 Remount the union fitting on the conduit.
6 Locate the pulser cable, two spiral pins, and cable tie (part of the pulser meter assembly).
7 Place the coupling on one end of the cable on the pulser shaft ( Figure 2 ) and secure by placing
one spiral pin in the hole in the cable coupling and through the hole in the shaft. Allow the pin
to extend equally on both sides of the coupling.
8 Place the coupling on the other end of the cable on the shaft on the pulser meter. Secure in the
same manner as the first end.
9 Place the cable tie around the cable and around the pipe (extending from the meter to the hose
fitting). The position for placement is indicated in
Figure 2 .
Mounting Bolts
Mounting Bolts
Existing Meter
