MDE-4705 Additional Serial Ports Installation on an Integral Profit Point System (PA03660XXX) · October 2007
Advanced Ports (Sealevel)
Note: If the icon above is not in the Control Panel window, refer to
, or contact your Service Representative or Gasboy Customer Service to verify
the type of 4-port board.
1
When the Advanced Ports Configuration window opens, eight ports are listed; Port 1 to Port 8.
Click on the Advanced tab at the top of the window.
2
In the Advanced window, verify if ports 5 to 8 are set up correctly. To do this, click the Port
Name and verify if FIFO is enabled (box is checked) and Receive FIFO is set to 1. Change as
required. Once the settings of all 4 ports (5-8) have been verified and/or changed, click OK.

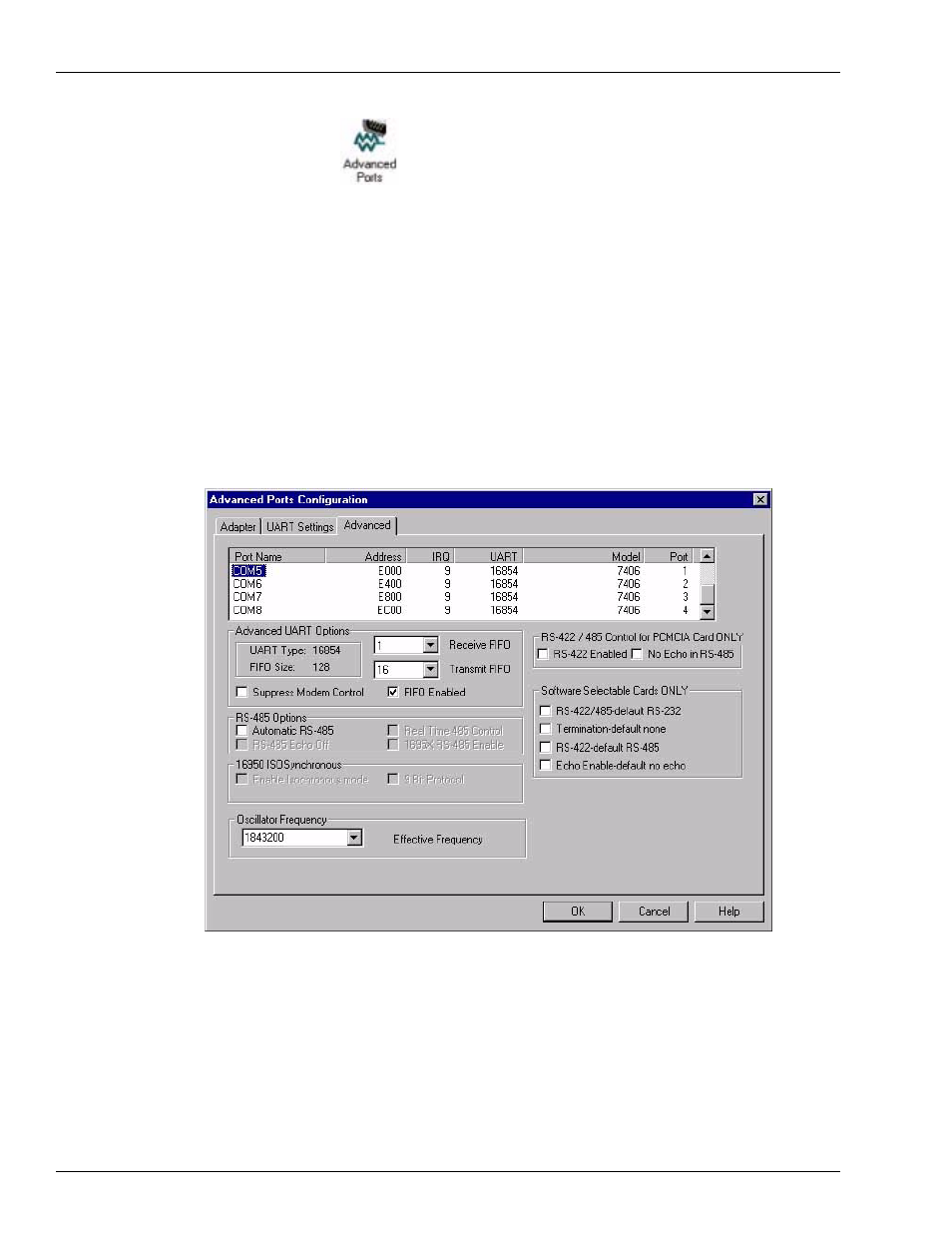

Figure 7: Advanced Ports Configuration
