2.3.3. Power Supply
The Tag Reader requires 12 - 24 VDC. / 0.5 A power input, supplied by the provided PS.
2.3.4. MiFare Pod Housing
The MiFare Pod enclosure is made of rugged plastic, in the form of a small box, mounted on an
inclined plastic base for the ease of operation. The devices in its front panel are sealed to prevent
humidity and dust penetration.
The overall dimensions are: H x W x D: 5.19'' x 8.74" x 6.02" (see Figure 2-3).

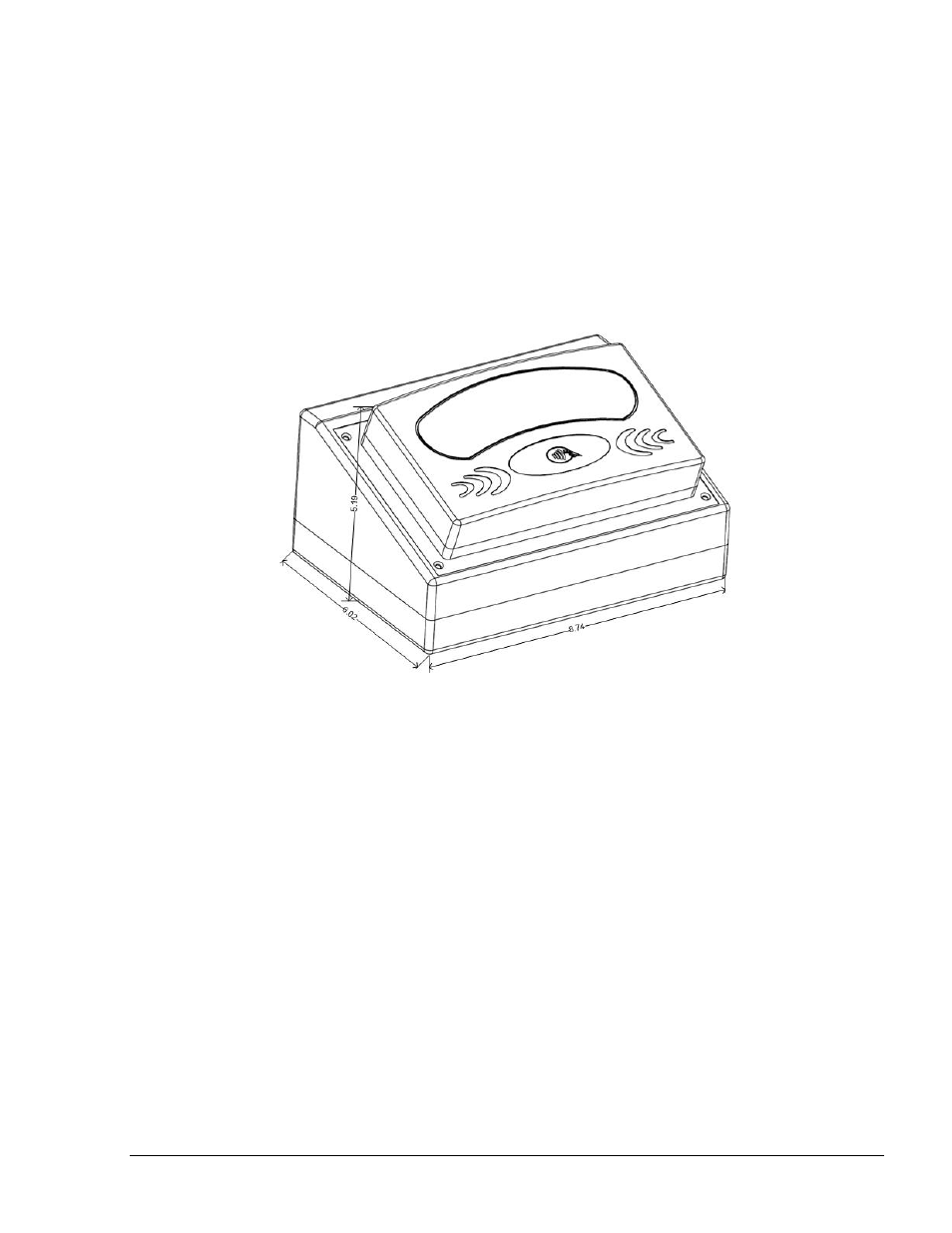

Figure 2-3. MiFare Pod – Dimensions
FHO Pods User’s Manual
