17
ENGLISH
CONNECTIONS

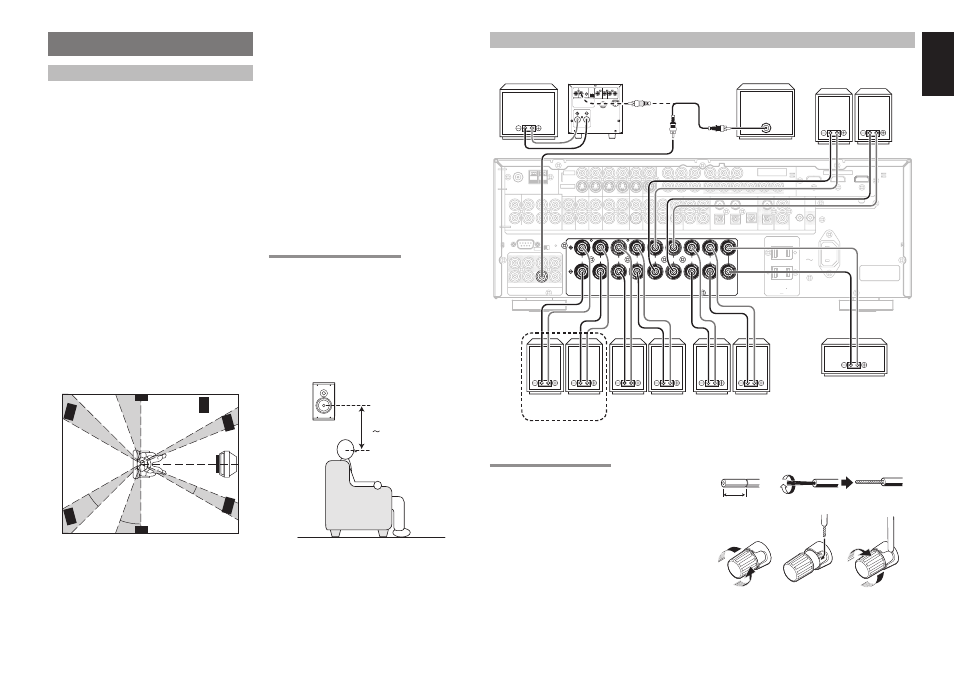

SPEAKER PLACEMENT
The ideal surround speaker system for this unit is 7-
speaker systems, using front left and right speakers,
a center speaker, surround left and right speakers,
a surround back left and right speakers, and a
subwoofer.
For best results we recommend that all front speakers
be of the same type, with identical or similar driver
units. This will deliver smooth pans across the front
sound stage as the action moves from side to side.
Your center channel speaker is very important as
over 80% of the dialog from a typical motion picture
emanates from the center channel.
It should possess similar sonic characteristics to the
main speakers. Surround channel speakers need not
be identical to the front channel speakers, but they
should be of high quality.
The surround center speaker is useful for playback
of Dolby Digital Surround EX or DTS-ES. One of
the benefi ts of both Dolby Digital and DTS is that
surround channels are discrete full range, while they
were frequency limited in earlier “Pro Logic’ type
systems.
Bass effects are an important part of home theater.
For optimal enjoyment a subwoofer should be used
as it is optimized for low frequency reproduction. If
you have full range front speakers, however, they
may be used in place of a subwoofer with proper
setting of the switches in the menu system.
90 ° 110 °
22 °
30 °
135 °
150 °
0 °
Front Right
Front Left
Front Center
Surround Left
Subwoofer
Surround Back
Left
Surround Right
Surround Back
Right
Front left and right speakers
We recommend to set the front L and R speakers
with 45-60 degrees from the listening position.
Center speaker
Align the front line of the center speaker with the front
L/R speakers. Or place the center speaker a little
backward from the line.
Surround left and right speakers
When the SR4001/SR5001 is used in surround
operation, the preferred location for surround
speakers is on the side walls of the room, at or
slightly behind the listening position.
The center of the speaker should face into the
room.
Surround back left and right speakers
Surround back speakers are required when a full 7.1-
channel system is installed.
Speakers should be placed on a rear wall, behind the
listening position.
The center of the speaker should face into the
room.
Subwoofer
We recommend using a sub-woofer to have maximum
bass effect. Sub-woofer bears only low frequency
range so you can place it any where in the room.
HEIGHT OF THE SPEAKER UNITS
Front left and right speakers, and a center speaker
Align the tweeters and mid-range drivers on the
three front speakers at the same height, as best as
possible.
Surround left and right speakers, and surround
back speaker
Place the surround left, right and surround back
speakers higher than your ears by about 70cm – 1m.
Also place the speakers at the same height, as best
as possible.
70cm
1m
Note:
Use magnetically-shielded speakers for front left, right
and the center speakers when the speakers are installed
near the TV and the TV is a monitor type.
CONNECTING SPEAKERS
RS-232C SPEAKER C OFF ON
FLASHER IN DC TRIGER
R SR
C
SW SBR
SL SBL L
COAX IN
OUT
RC-5 1
4 3
OPT DIGITAL OUT (AUX2) 7.1CH INPUT
L SL C SBL
R SR SW SBR
R
L
FM (75 Ω) GND AM
C R /P R C B /P B Y
ANTENNA
OUT IN CDR/MD OUT IN TAPE CD VCR1 DVD TV AUDIO DSS/VCR2 IN IN OUT
C R /P R C B /P B Y DSS/VCR2 TV DVD VCR IN VCR OUT MONITOR OUT
INPUT 1
INPUT 2
S-VIDEO
VIDEO
PRE OUT
INPUT 2 OUTPUT INPUT 1
HDMI Ver 1.1 COMPONENT
VIDEO
MODEL NO. SR5001
C R /P R C B /P B Y
INPUT 3
MONITOR OUT 2
2 3 DIGITAL IN MULTI. OUT
R R
CENTER SURROUND
R
SURROUND BACK SPEAKER C/ MULTI SPEAKER
L L L L R
FRONT B FRONT A
SPEAKER
SYSTEMS
AC IN
1.25A 150W
AC OUTLETS 120V 60Hz
UNSWITCHED
SWITCHED
1.25A 150W
FRONT A OR B,CENTER,
SURR,SURR BACK:MINIMUM 6 OHMS
FRONT A AND B:MINIMUM 8 OHMS
XM
R R
CENTER SURROUND
R
SURROUND BACK SPEAKER C/ MULTI SPEAKER
L L L L R
FRONT B FRONT A
SPEAKER
SYSTEMS FRONT A OR B,CENTER,
SURR,SURR BACK:MINIMUM 6 OHMS
FRONT A AND B:MINIMUM 8 OHMS SW
PRE OUT
INVERT
OUTPUT INPUT
LEVEL BTL REMOTE CONT. EXT. CONT. IN
VIDEO/ +5~13V DC SYSTEM OUT OUT
INPUT
MASTER SLAVE
MIN MAX IN
F U S E
SPEAKER SYSTEM
MINIMUM 4 OHMS
Powered
subwoofer
Power
Amplifi er
Passive
subwoofer
Surround
BACK
Center
Left
Surround
Right
Front A
Right Left
Right Left
Front B
Right Left
or
SR5001 only
CONNECTING SPEAKER WIRE
1. Strip away approx. 3/8 inch (10 mm) of wire
insulation.
2. Twist the bared wire ends tight, to prevent short
circuits.
3. Loosen the knob by turning it counterclockwise.
4. Insert the bare part of the wire into the hole in
side of each terminal.
5. Tighten the knob by turning it clockwise to
secure the wire.
1. 2.
3. 4. 5.
3/8 inch
(10 mm)
