The I/O tab allows you to assign the BNC OUT 1 connector as timecode output or AES output; and BNC
OUT2 can be WORD sync output or WORD sync throughput. Usually just leave it as timecode out and
word out, unless you are doing something advanced (in which case you would know).

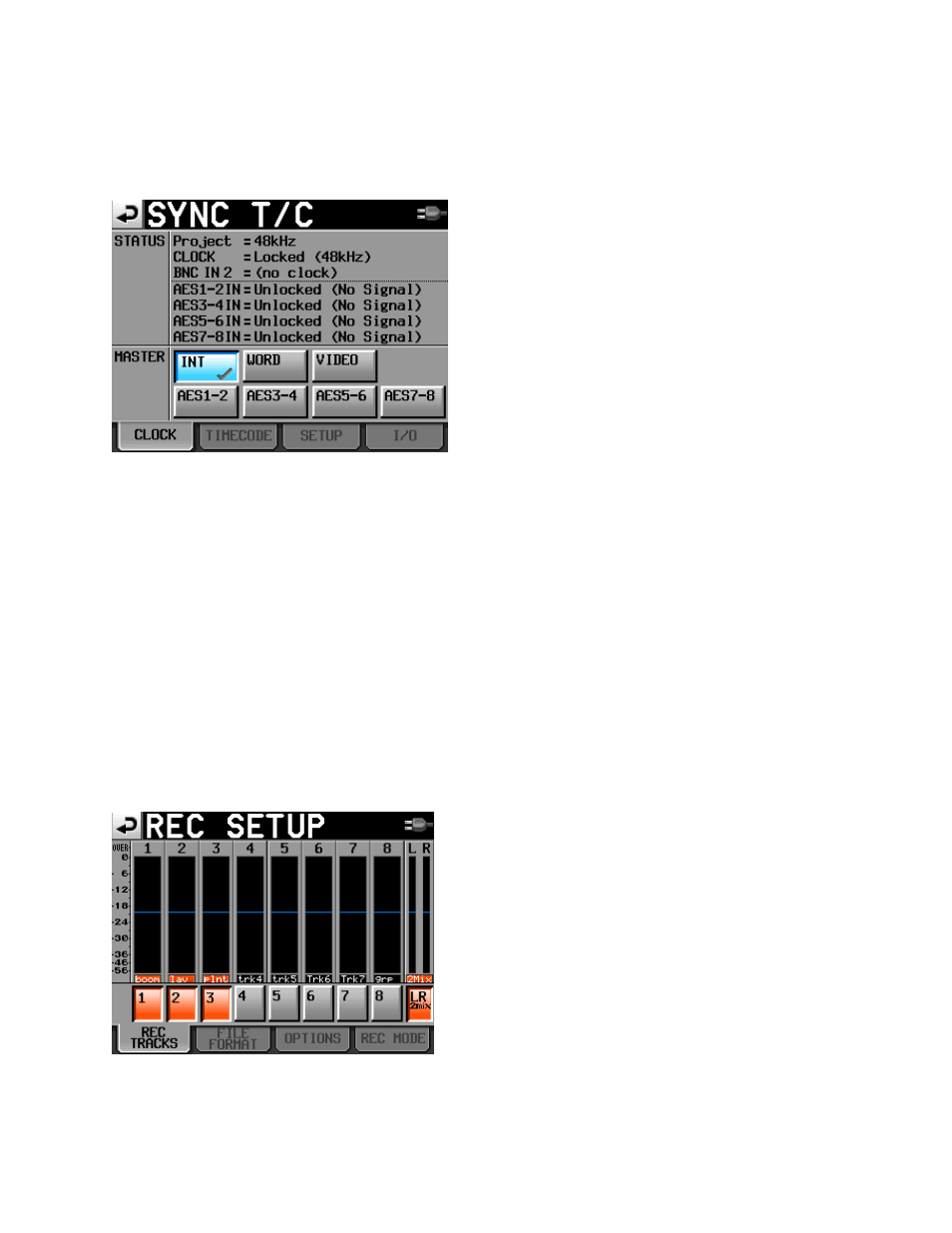

The CLOCK tab is for indicating whether the timecode signal is locking to the internal clock (default),
word or video sync, or AES. Usually, just leave it on INTERNAL clock, unless you are doing something
advanced.
Panel Lock Function
Depress the HOME button and then the MENU button while still depressing the HOME button, and the
panel LOCK/UNLOCK screen will appear. All three of the windows should say UNLOCK. It is possible to
lock groups of the controls, should the need arise.
Enable the Record Tracks
Before you can record to any tracks, you must manually “arm” them, that is, enable them ready for
recording. Otherwise, tracks are locked out and will NOT record.
From the MENU button, select the REC SETUP screen. From the REC TRACKS tab at the bottom of your
screen, simply press each of the tracks that you wish enabled. Don’t forget to also enable the LR 2mix
