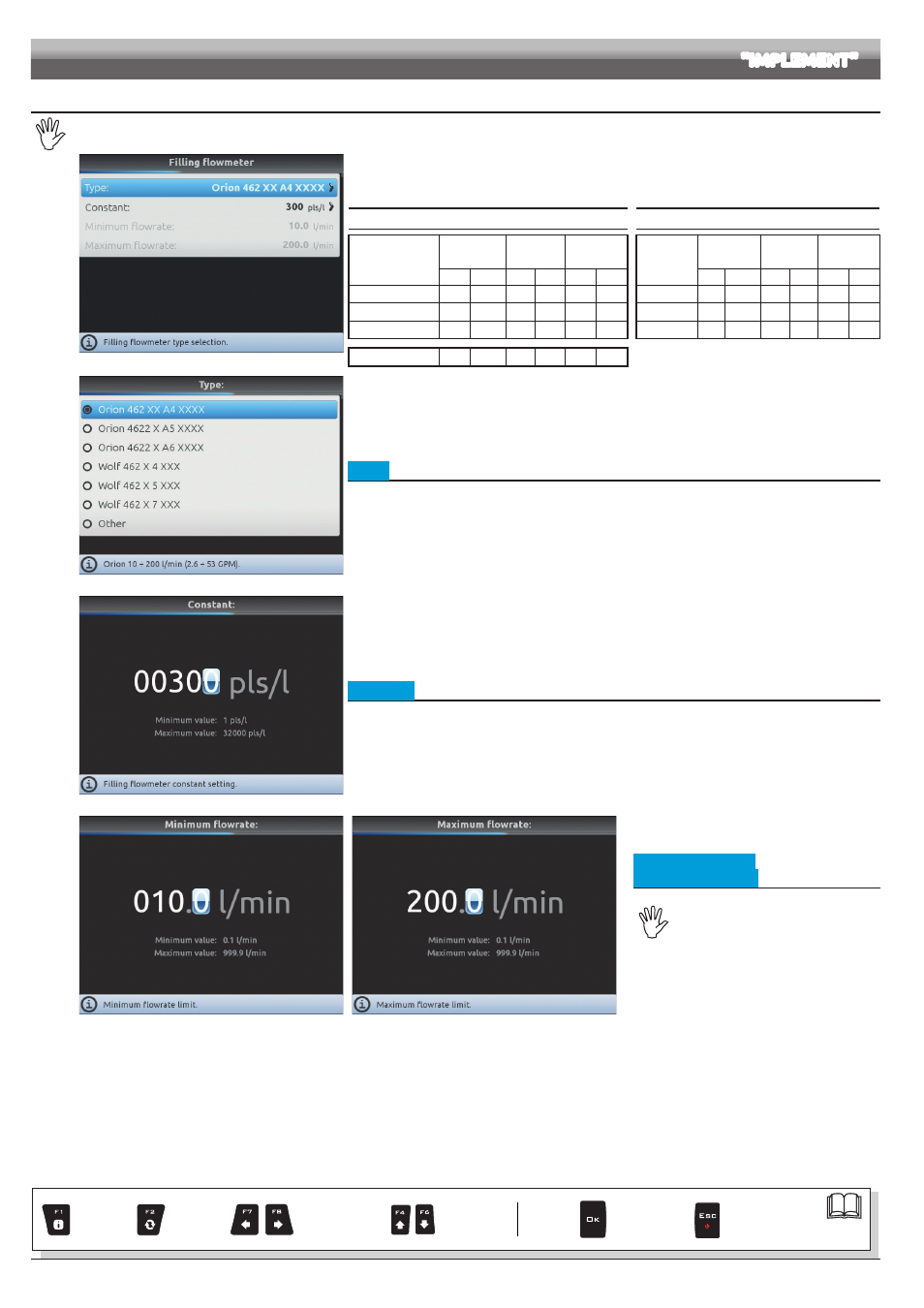

10.1.4 Filling flowmeter
This menu can ONLY be viewed when the filling flowmeter is selected as tank level source (basic settings, chap. 9).
Fig. 78
The filling flowmeter allows displaying the tank filling data in real time.
Enter the values for the filling flowmeter installed on the system:
the table below indicates the values that are
automatically set when selecting the flowmeter code.
If the installed filling flowmeter is not displayed, select
Other and enter the relevant values.
ORION FLOWMETERS WOLF FLOWMETERS
Type
Constant
Minimum
flowrate
Maximum
flowrate Type
Constant
Minimum
flowrate
Maximum
flowrate
pls/l pls/gal l/min GPM l/min GPM pls/l pls/gal l/min GPM l/min GPM
462XXA4XXXX 300 1135 10 2.60 200 52.8 462x4xxx 250 946 10.0 2.6 200 52.8
4622XA5XXXX 150 568 20 5.30 400 105.7 462x5xxx 132 500 20.0 5.3 400 105.7
4622XA6XXXX 100 378 30 7.90 600 158.5 462x7xxx 60 227 40.0 10.6 800 211.3
Other 625 2366 10 2.60 200 52.8
Fig. 79
• Type
Indicate the type of flowmeter installed.
Fig. 80
• Constant
Indicate the constant of the installed filling flowmeter.
Fig. 81 Fig. 82
• Minimum flowrate
• Maximum flowrate
The items Minimum flowrate and
Maximum flowrate can be modified
only when the option Other (Fig. 79) is
enabled.
Indicate the minimum and maximum pressure for
the filling flowmeter installed on the system.
ADVANCED SETTINGS "IMPLEMENT"
Par.
7.4
Exit the function or
data change Confirm access
or data change Scroll
(LEFT / RIGHT)
Delete
selected
character Increase /
decrease
value
Scroll
(UP / DOWN)
Enter
selected
character
