"AUTOMATIC FUNCTIONS" - MANUAL / AUTOMATIC NOZZLE SELECTION
13.5
F4
Automatic nozzle selection ON/OFF
Enables / disables automatic nozzle selection on all spraying points (DEFAULT: ON).
1
2
NOZZLE A
NOZZLE B
NOZZLE C
NOZZLE D

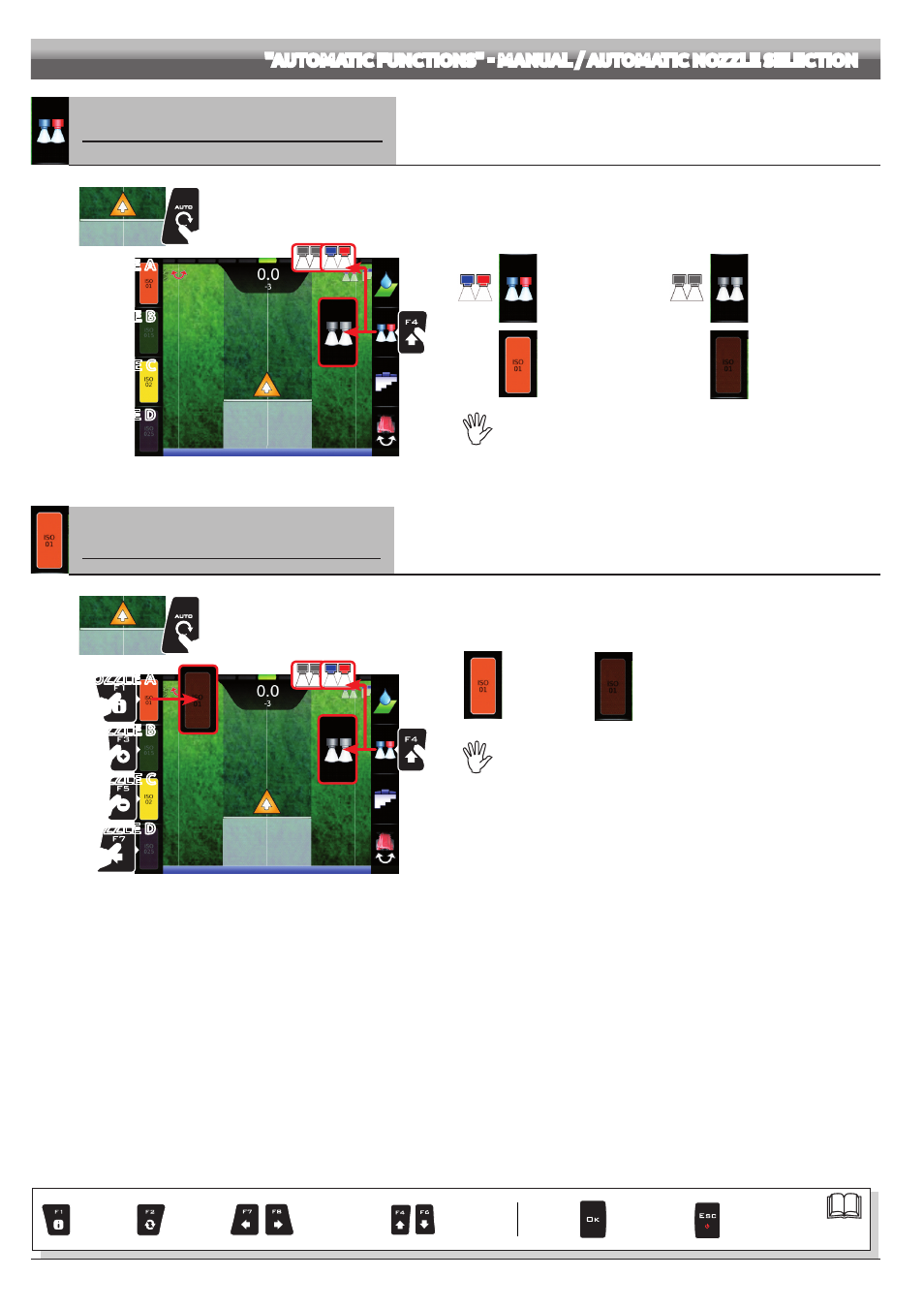

Fig. 244
1 In the guidance screen, press
Auto
.
2 Press
F4
(Fig. 244) to enable or disable automatic selection.
Automatic selection
ON
Automatic selection
OFF
Enabled nozzle
Disabled nozzle
According to the spraying point setting (par. 10.1.1), the number of nozzles
displayed in Fig. 244 will change.
13.6
F1/F3/F5/F7
Manual nozzle selection
Allows to select manually nozzles A, B, C, D in use on the spraying points.
This function is enabled ONLY when automatic nozzle selection is disabled (par. 13.5).
1
2
3D
3C
3B
3A
NOZZLE A
NOZZLE B
NOZZLE C
NOZZLE D
Fig. 245
1 In the guidance screen, press
Auto
.
2 Press
F4
to disable automatic nozzle selection (par. 13.5
Automatic nozzle selection ON/OFF).
3 Press the button next to the nozzle (Fig. 245) to enable or disable the corresponding nozzle.
Enabled nozzle
Disabled nozzle
According to the spraying point setting (par. 10.1.1), the number of nozzles
displayed in Fig. 245 will change.
