93

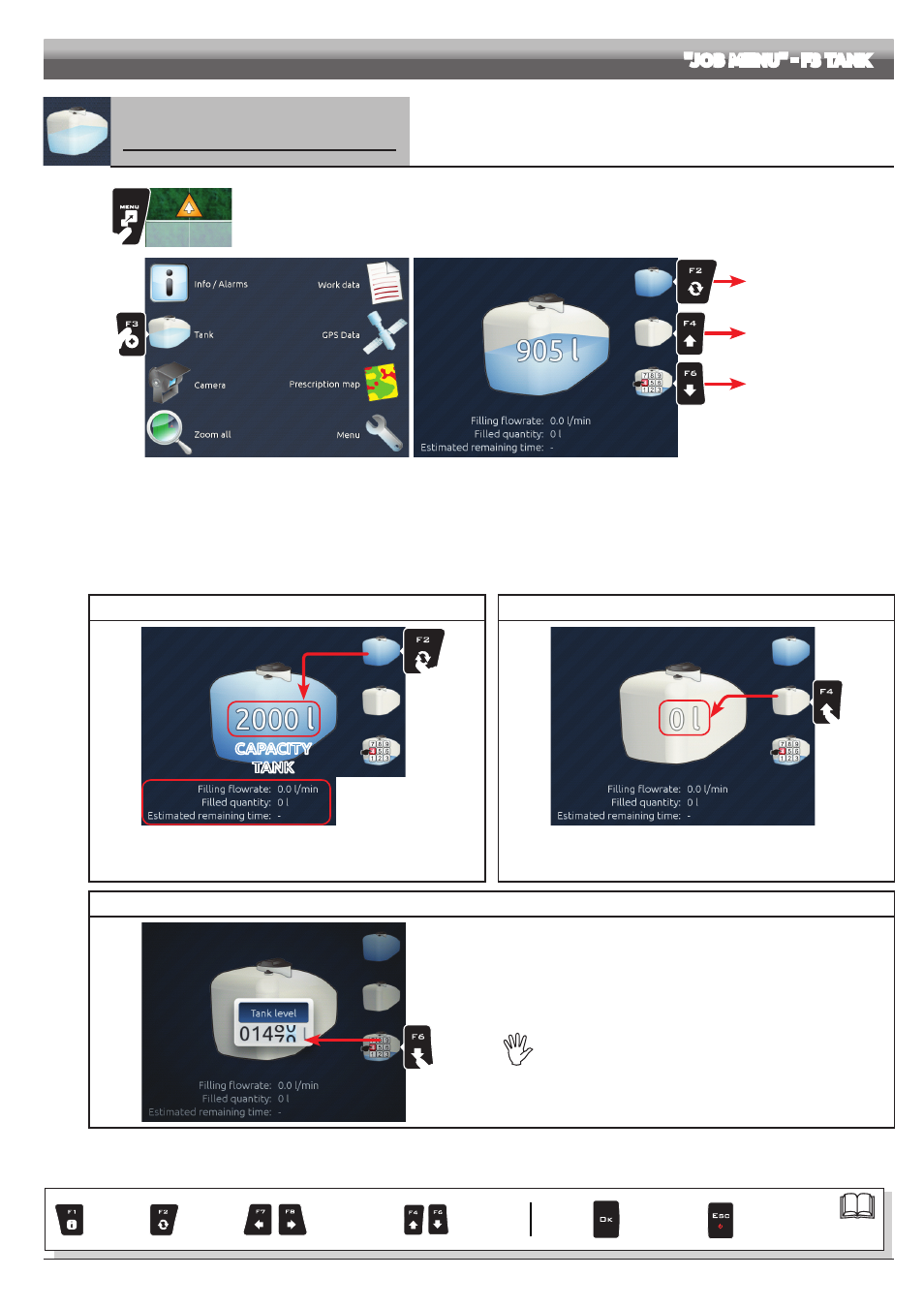

"JOB MENU" - F3 TANK
15.3
F3 Tank
Manages tank filling.
The management mode will change according to the device set for the tank level reading
(basic settings, chap. 9).

1

2
Fig. 318
1 In the guidance screen, press Menu .
2 Press F3 to view the Tank menu (Fig. 319).
Complete filling
Level reset
Filled quantity manual
setup
Fig. 319
• TANK LEVEL SOURCE: LEVEL SENSOR
The computer displays the real quantity of fluid inside the tank, detected by the level sensor.
• TANK LEVEL SOURCE: MANUAL / FILLING FLOWMETER
The computer calculates the quantity of fluid inside the tank (by processing the job data), and allows to enable several manual procedures:
- Complete filling, according to the tank capacity (Fig. 320)
- Level reset (Fig. 321)
- Filled quantity manual setup (Fig. 322)
TANK FILLING LEVEL RESET

CAPACITY
TANK
Fig. 320

Fig. 321
Press F2 to set tank level to the maximum value.
The display will show the tank as full: Its total capacity has been set during
advanced setup (par. 10.1.10).
Press F4 to set tank level to zero.
The display will show the tank as empty.
FILLED QUANTITY MANUAL SETUP

Fig. 322
- Press F6 to set the quantity of liquid filled in the tank.
- Set the value and confirm.
The display will show the tank level that has been reached.
It is not possible to set values higher than tank total capacity.
When the filling flowmeter
is connected, the display
shows the filling data in real
time.
Par.
7.4
Exit the function or
data change Confirm access
or data change Scroll
(LEFT / RIGHT)
Delete
selected
character Increase /
decrease
value
Scroll
(UP / DOWN)
Enter
selected
character
