"JOB MENU" - F6 PRESCRIPTION MAPS
15.6
F6 Prescription maps
Overview of the prescription map in use

1

2

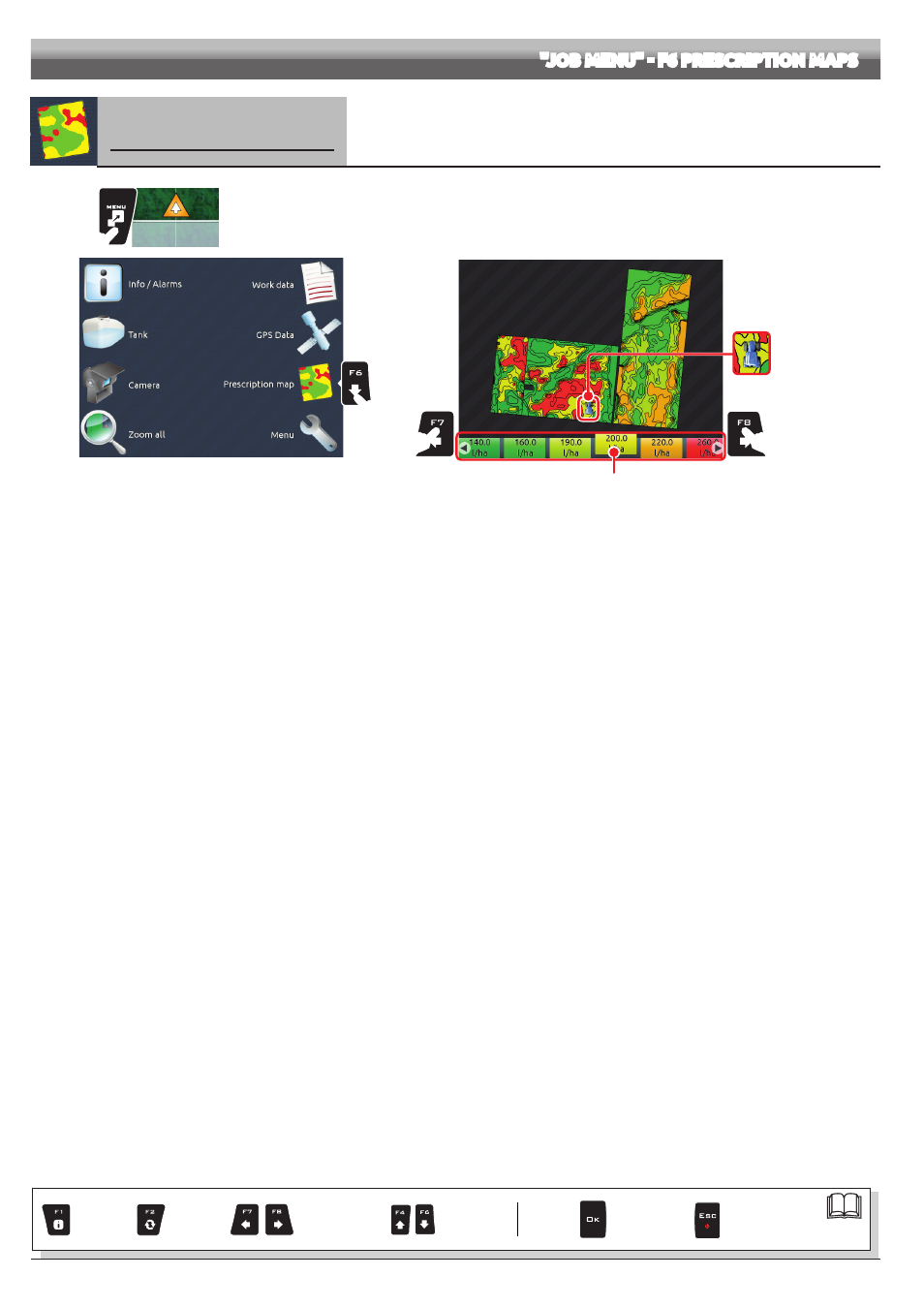

Fig. 327
1 In the guidance screen, press Menu .
2 Press F6 to view the Prescription maps menu (Fig. 328).
From this screen it is possible to view data of the prescription map during spraying and to check the position of the machine on the
map.
 
Fig. 328
F7 Scroll spray rate values to
the LEFT.
F8 Scroll spray rate values to
the RIGHT.
Machine position
Spray rate values legend:
The highlighted box displays the spray rate referred to
the machine's current position
Par.
7.4
