ADVANCED SETTINGS "IMPLEMENT"
• Tank profile calibration
The tank profile calibration is ONLY possible if the system is provided with a flowmeter (par. 10.1.3).

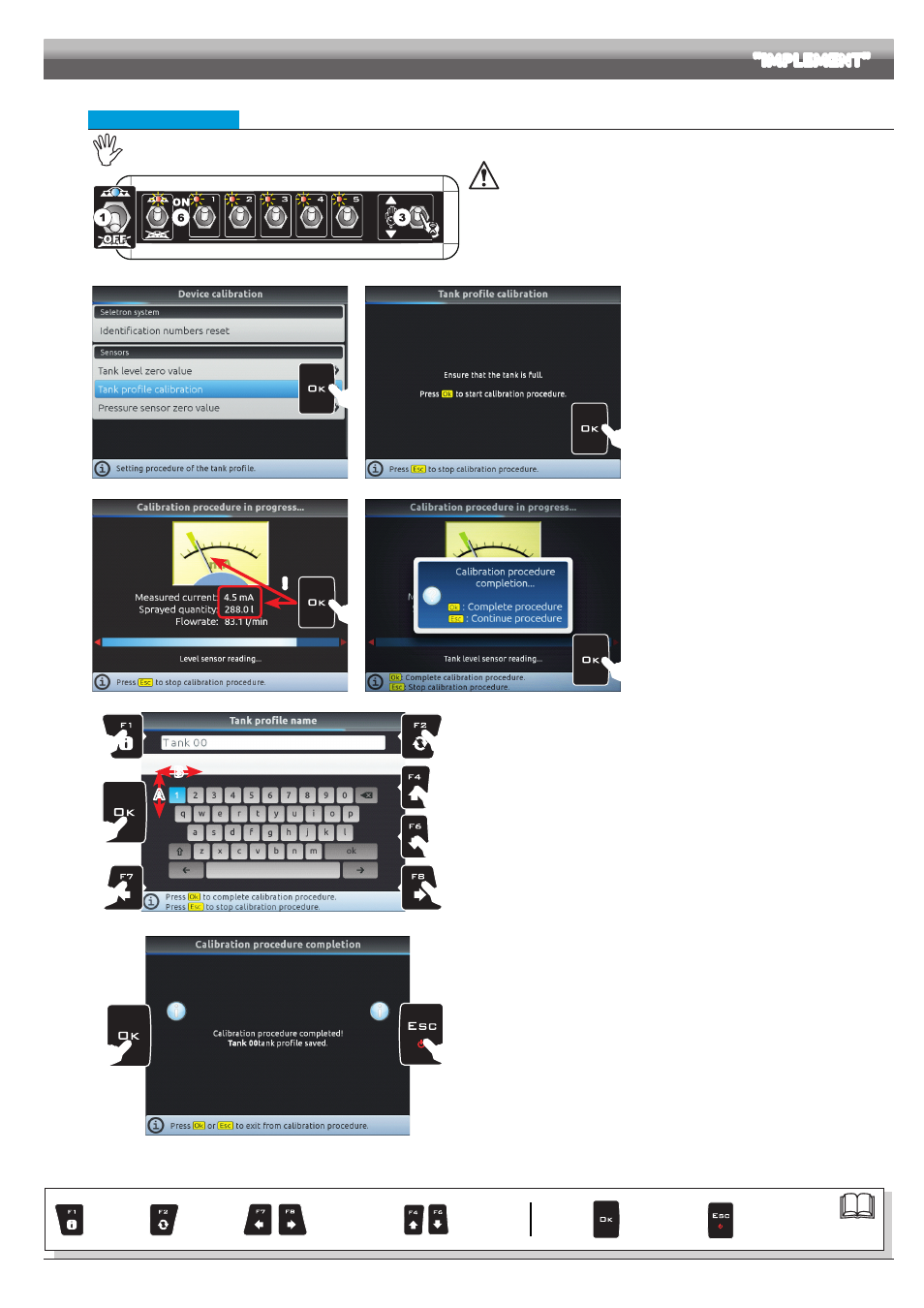

Fig. 143
Before starting the procedure carry out the following operations:
1 Make sure the main switch is in position OFF (Fig. 143).
2 Fill in the tank with clean water WITHOUT ADDING CHEMICAL SUBSTANCES.
The tank must be full.
Visually check the reached level.
3 Set the output to the maximum value by keeping the control valve switch pressed
(Fig. 143, nearly 7 s).

4
Fig. 144

5
Fig. 145
4 Select Tank profile calibration (Fig. 144) and
press OK .
The calibration starts.
5 The message in Fig. 145 is displayed: follow the
instructions, then start the procedure by pressing
OK .
6 Start the spraying system: open, in succession,
all section valves and the main control (Fig. 143,
switches in position
ON).

7
!
Fig. 146

8
Fig. 147
The display will show in real time the quantity of
sprayed water and the calibration status (Fig. 146).
7 When the tank is empty press OK to end the
procedure:
The value read by the level sensor must be lower
than 4.5 mA and at least 10 liters must have been
sprayed.
8 Press OK again to save the tank profile: the name
edit screen is displayed (Fig. 148).

A

B

B

E

C

D
B
A

A
Fig. 148
9 Type in the name:
A
Press in succession to select the character you wish to type (UP / DOWN).
B
Press in succession to select the character you wish to type (RIGHT / LEFT).
C
Press to confirm the selected character
D
Press to delete the character before the cursor
E
Press OK to save the name.

11

11
Fig. 149
11 A confirmation message is displayed once the process is completed (Fig. 149).
Press
OK or ESC .
The calibration is completed.
