68
USE

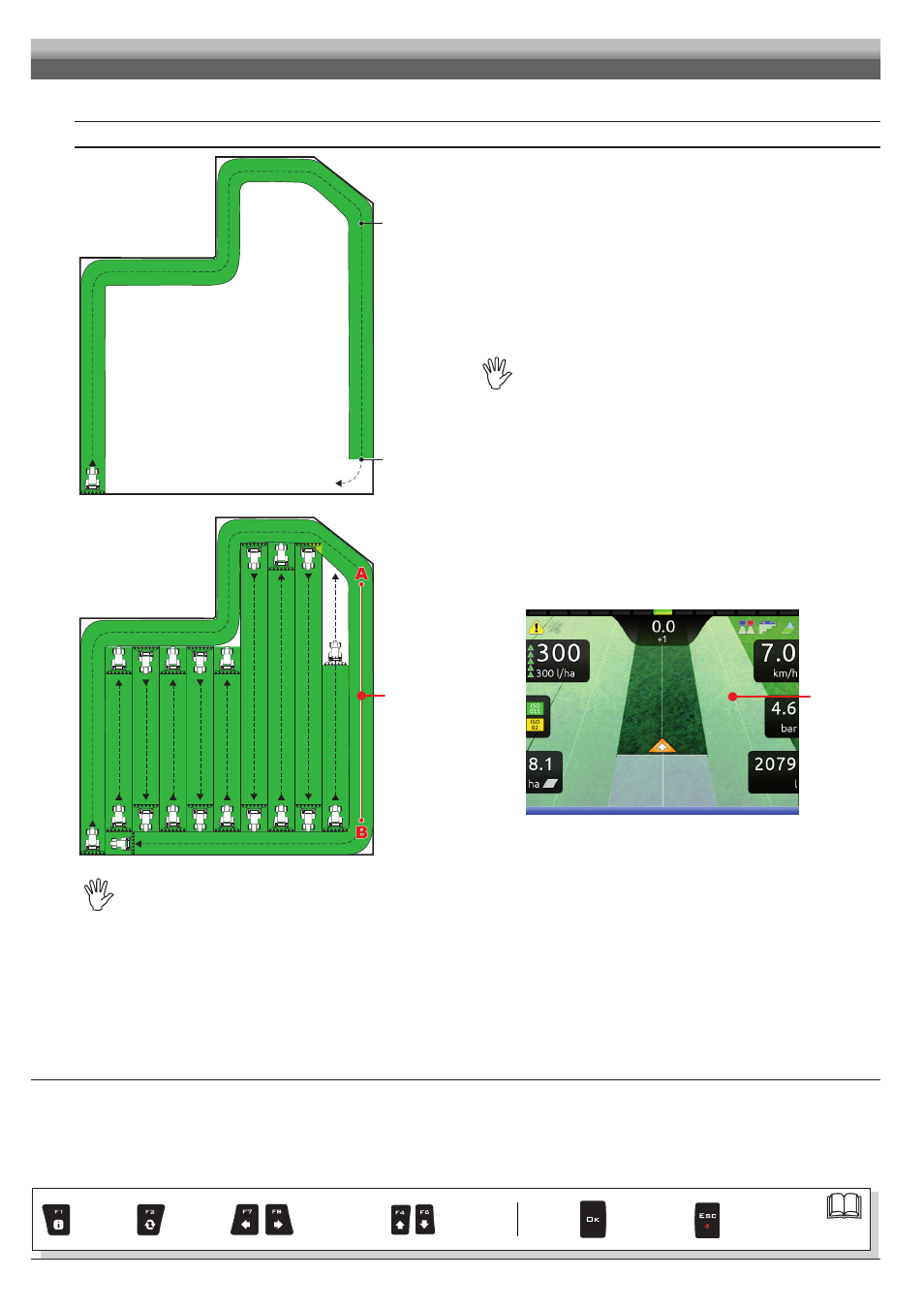

MARKING POINTS A AND B
Mark A ?
Mark B ?
Fig. 234
• While moving along the perimeter of the field, you will mark points A and B
(as described in par. 16.7
F7 New AB).
This operation is fundamental for Bravo 400S to guide you,
during spraying, along tracks parallel to the reference track obtained by
marking points A and B.
We recommend marking points A and B while the machine is
moving, at both ends of a straight line that is as long as possible:
the longer the line marked by points A and B, the lower the error
caused by any deviations of the machine itself.
T0
Fig. 235
• Once the line from A to B has been marked (
T0
), it will be possible to
spray the rest of the field along parallel lines, (Fig. 235), by following the
reference tracks shown on the display (Fig. 236).
T0
Fig. 236
At the beginning of a new job Bravo 400S gives driving directions in the "Straight parallel" mode.
To change guidance mode see function F2 Guidance mode (par. 16.2).
> > > 12.5 Spraying a field
Par.
7.4
Exit the function or
data change Confirm access
or data change Scroll
(LEFT / RIGHT)
Delete
selected
character Increase /
decrease
value
Scroll
(UP / DOWN)
Enter
selected
character
