p Supervisor setup screen
The Supervisor setup screen provides fields for entering the system
password required to edit setup parameters and fields for locking or
unlocking critical functions.
Password
To specify the system password:
U Highlight the Password field
U Use the numeric keypad to enter the system password
U Press the ENTER key
Unlocking and locking critical functions
Once the supervisor password is entered, most functions shown on
this screen are locked or unlocked by highlighting the function and
pressing the UNLOCKED or LOCKED soft key presented at the
bottom of the LCD. Locking a function makes it unavailable for use.
For example, when datuming is locked datums cannot be set, preset
or cleared by the operator.
Part Settings
Part settings are found in the area above the first horizontal dividing
line on the left side of the Setup menu screens and include the
following setup screens:
„ About
„ Dimensions
„ Formats
„ Formulas
„ Variables
„ Tolerances
„ SPC
„ Header
„ Memory
Datuming
Datuming functions include setting, presetting and clearing absolute
and incremental datums.
Master Now
Master now unlocks or locks the Master function. Refer to "Calibrating
channels using the Master function" on page 43.
Press the RD. ONLY soft key to allow the display of mastered values
while prohibiting changes. Press the PASS soft key to restrict the
Mastering function to those who enter the required supervisor
password.

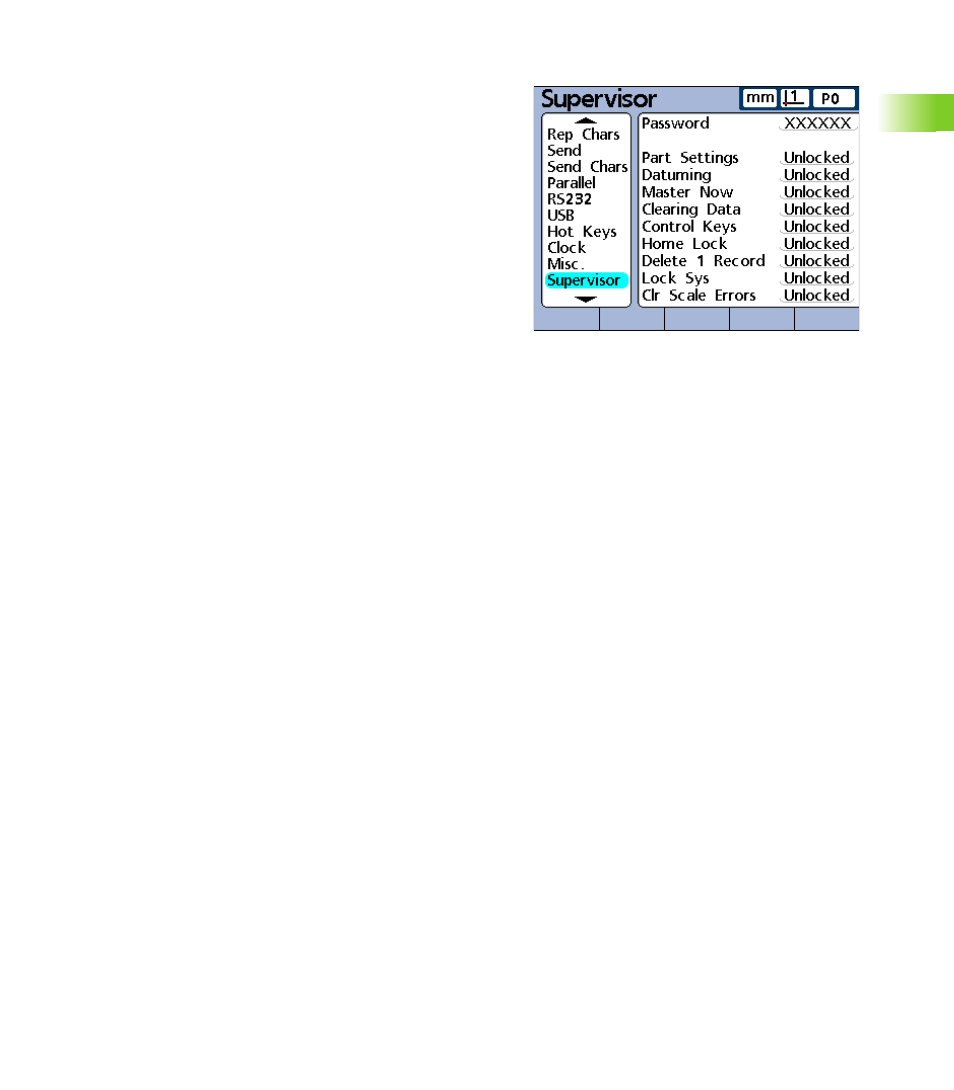

Supervisor setup screen.
