ND 2100G GAGE-CHEK

99

2

.3

S

o

ft

wa

re

s

e

tu

p

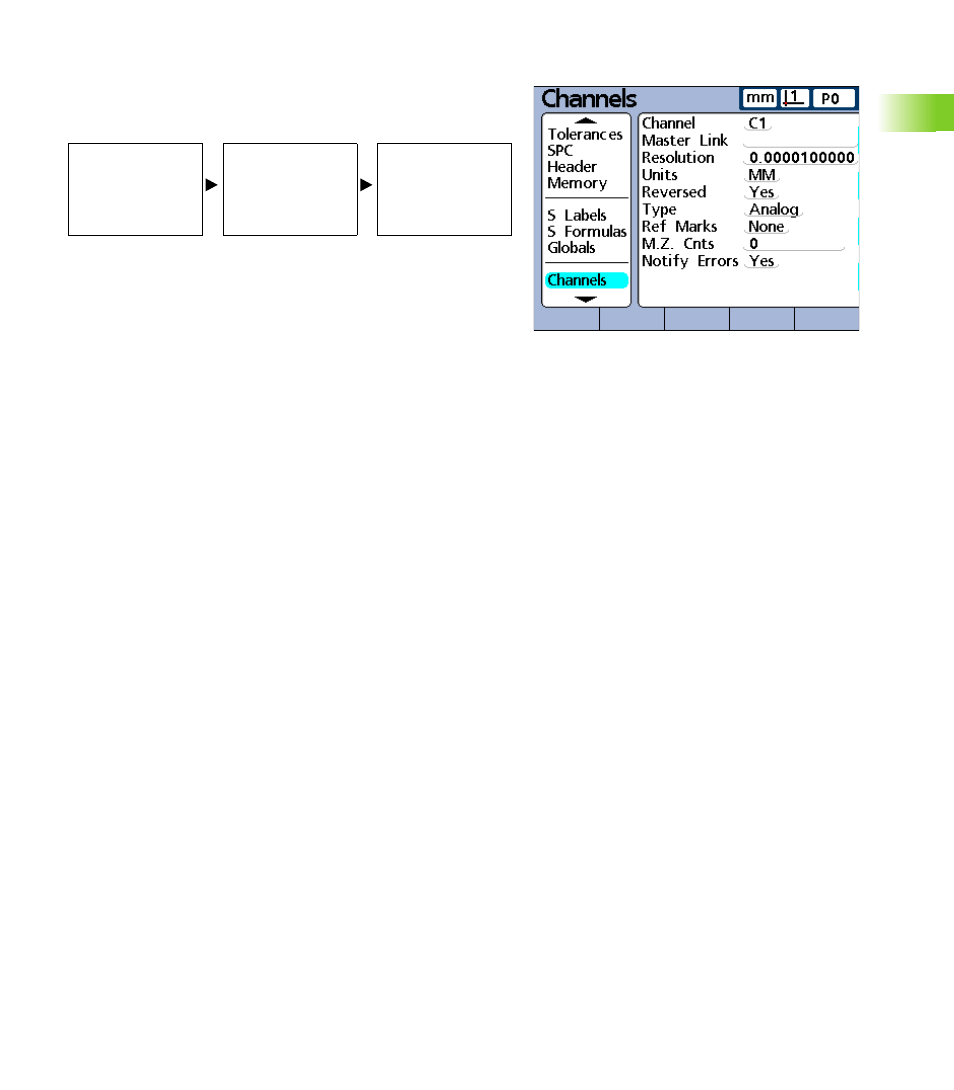

Channels setup screen

The Channels setup screen contains fields for selecting, configuring
and calibrating input channel devices. The input channel setup process
is diagrammed here.

Specifying the input channel

To specify the input channel:

U

Highlight the Channel field

U

Press the DEC or INC soft key to specify the desired input channel

U

Press the ENTER key

Channels setup screen.

Specify the
input channel
number

Select the input
channel type

Specify the
channel
parameters and
calibrate if
required
