Full circle on front end face G304-Geo

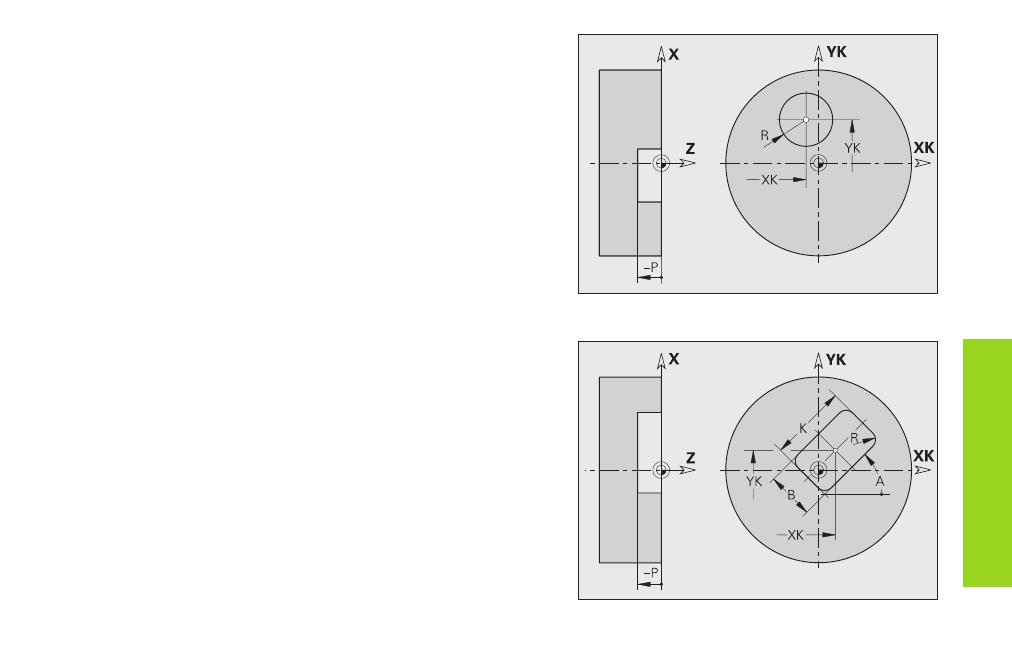

G304 defines a full circle on the front/rear end face.
Parameters
XK,YK: Circle center
R:
Circle radius
P: Depth/height – no entry: ”P” from G308
■ P<0: Pocket
■ P>0: Island
Rectangle on end face G305-Geo
G305 defines a rectangle on the front/rear end face.
Parameters
XK,YK: Center of rectangle
A:
Angle to longitudinal axis of rectangle (reference: XK-axis) – default:
0°
K: Length of rectangle
B: (Height) width of rectangle
R: Chamfer/rounding - default: 0
■ R>0: Radius of rounding
■ R<0: Width of chamfer
P: Depth/height – no entry: ”P” from G308
■ P<0: Pocket
■ P>0: Island
