HEIDENHAIN iTNC 530 451
1
1
.1 Gr
aph
ics
Limitations during program run
A graphical representation of a running program is not possible if the
microprocessor of the TNC is already occupied with complicated
machining tasks or if large areas are being machined. Example:
Multipass milling over the entire blank form with a large tool. The TNC
interrupts the graphics and displays the text ERROR in the graphics
window. The machining process is continued, however.

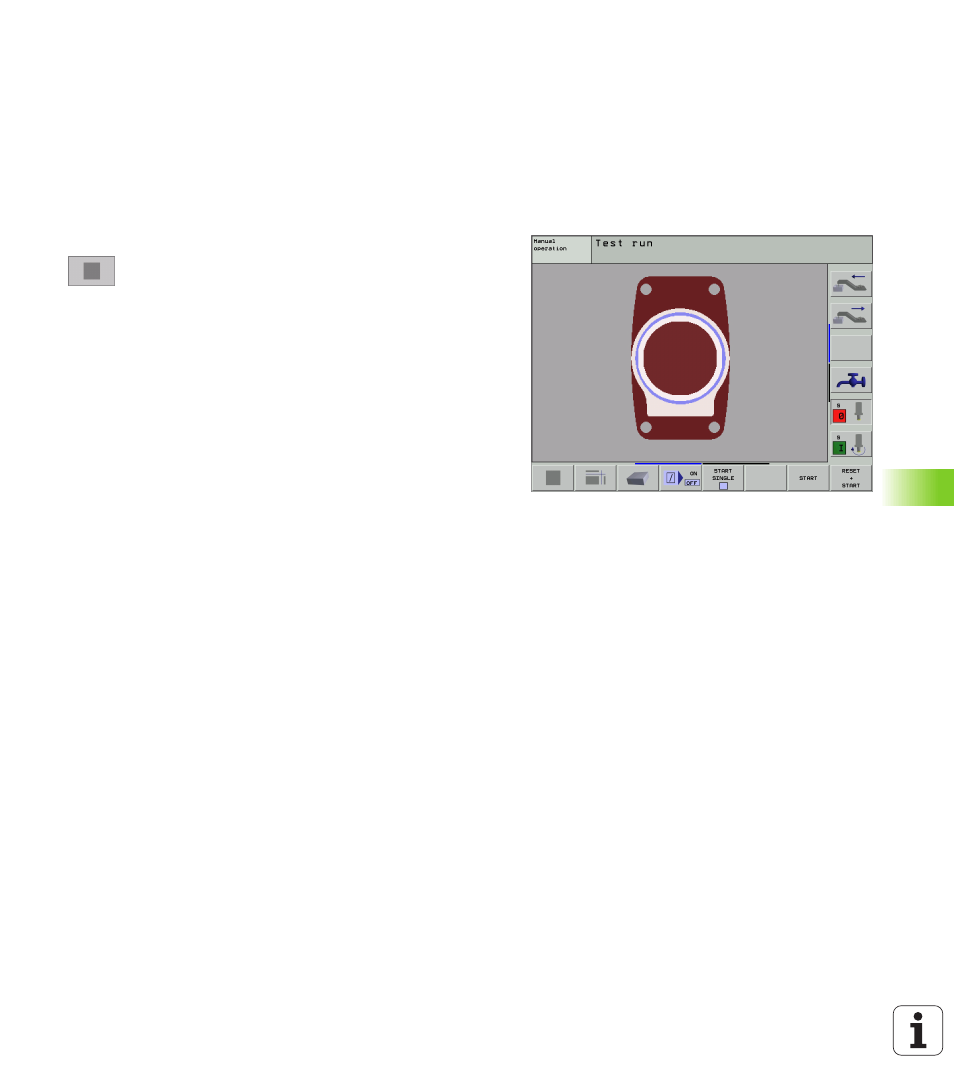

Plan view
Plan view is the fastest of the three graphic display modes.
U U U U Press the soft key for plan view.
U U U U Regarding depth display, remember: The deeper the
surface, the darker the shade.
