1-16
Installation
Date en cours : 12 June 2006
C:\Documents and Settings\G092899\Bureau\En cours\UK\Installation Gb.fm
I
NSTALLING THE
D
UPLEX
-
UNIT
(
OPTION
)
After installation and connection, the duplex-unit will enable you to print, receive faxes or to receive
local photocopies in mode.

Switch off your terminal and pull out the mains plug.

Take the duplex unit out of its box and remove the protective film..

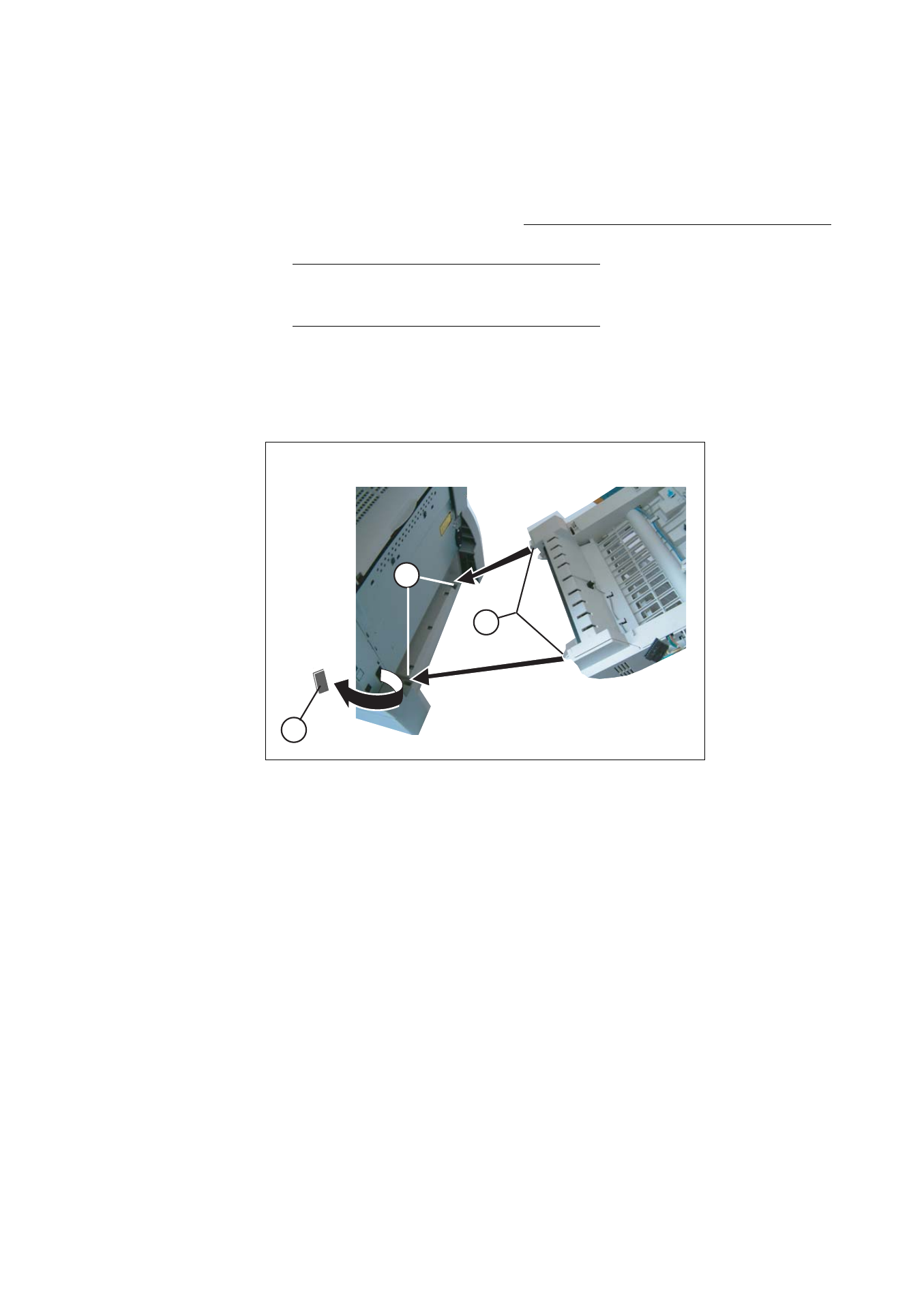

Remove the connector cover (A) to obtain access to the connector.

Insert the two plastic clips (B) in the two slots (C) provided for this purpose.
Remark : the insertion of the duplex unit is possible only if you have installed under the terminal a second
paper tray.
A
C
B
