General information

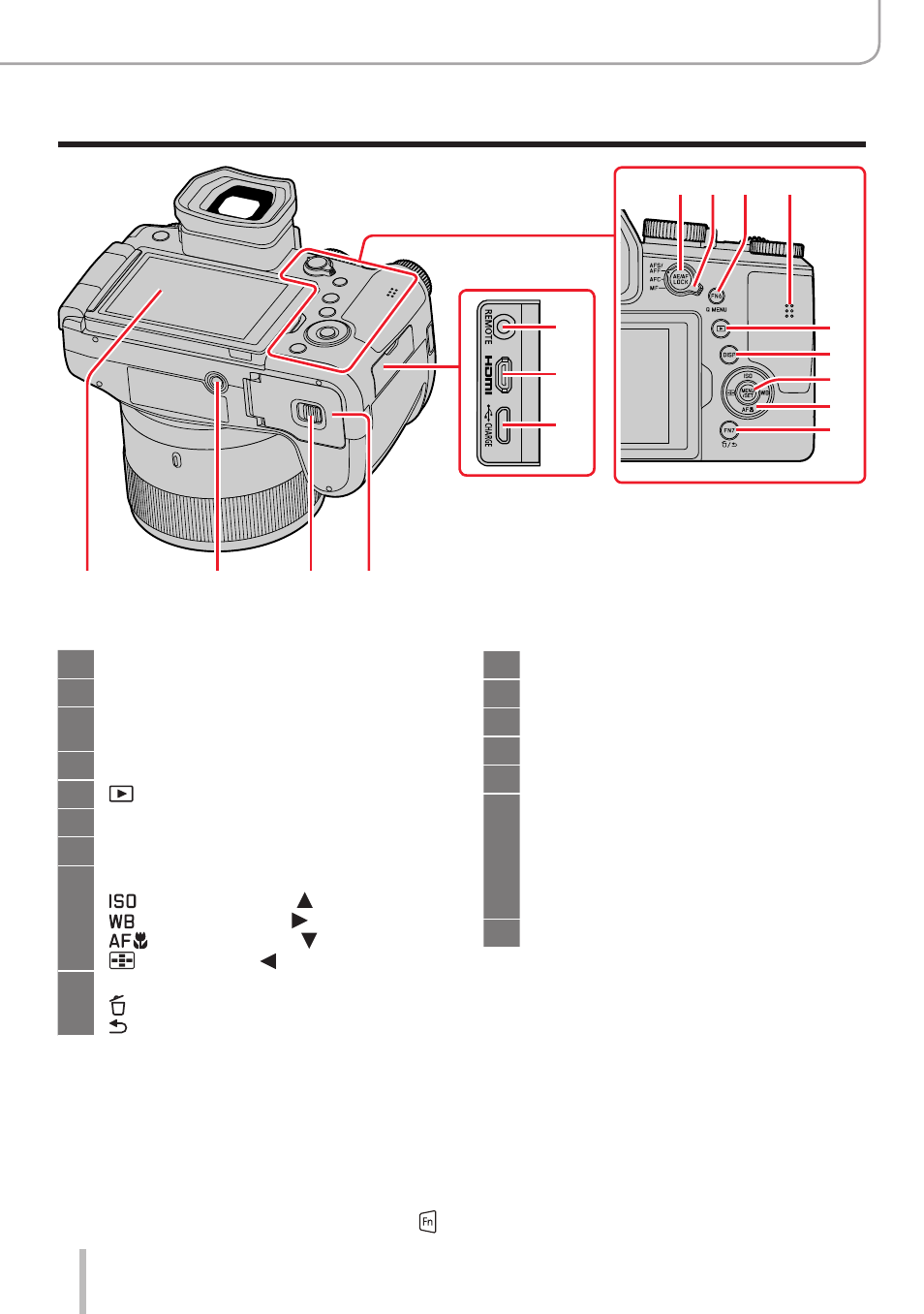

Names and functions of main parts
30
[AE/AF LOCK] button
(→105
)
31
Focus mode lever
(→
87, 88,
102
)
32
[FN6] button
(→
52)
/
[Q MENU] button
(→50
)
33
Speaker
(→
33,
206
)
34
[ ] (Playback) button
(→
161)
35
[DISP] button
(→
42)
36
[MENU/SET] button
(→
42, 48)
37
Cursor button
(→
42)
[ ] (ISO sensitivity) ( )
(→107
)
[ ] (White balance) ( )
(→109
)
[
] ([Macro Mode]) ( )
(→101
)
[ ] ([AF Mode]) ( )
(→90
)
38
[FN7] button
(→
52)
/
[ ] (Delete) button
(→
168)
/
[ ] (Cancel) button
(→
49)
39
[REMOTE] jack
40
[HDMI] jack
(→
238)
41
[USB/CHARGE] jack
(→20
, 241, 244)
42
Card/Battery door
(→
19, 24)
43
Release lever
(→
19, 24)
44
Tripod mount
(→
267)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inches) or longer. Doing so could
damage the camera and result in an
insecure connection.
45
Touch screen
(→
45)
/ monitor
(→
247)
Function buttons [FN9] to [FN13] are touch icons.
They can be displayed by touching the [ ] tab on the recording screen.
33
34
35
36
37
38
39
40
41
42
43
44
45
30 31 32
