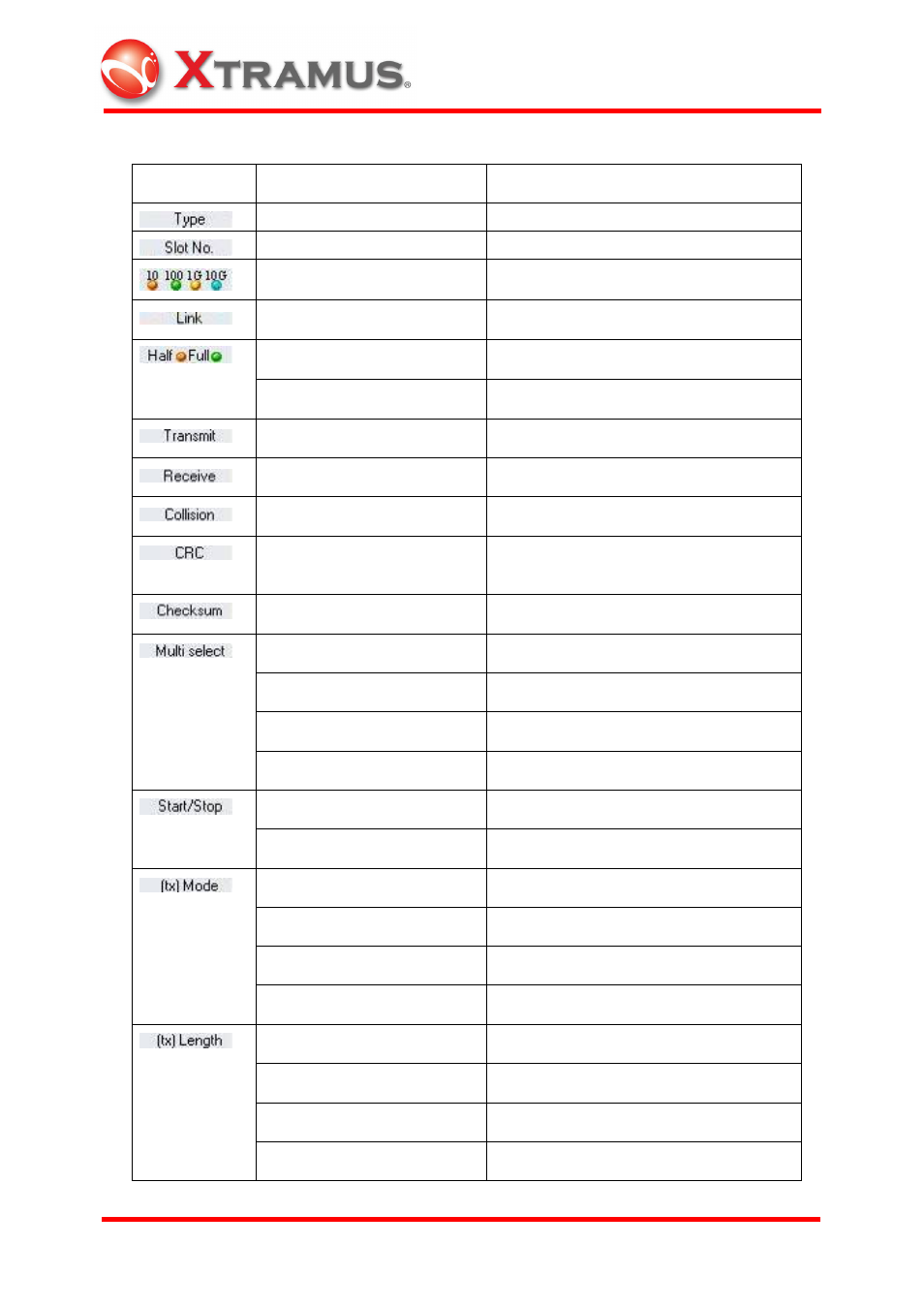

The LED indications in the Chassis panel are described in the table below:
Item
Symbol/Color
Description
N/A
Card Type/ Card Number
N/A
Slot Number
Orange/Green/Yellow/Blue
10M/100M/1G/10G
Green
The port is linked.
Orange
Half Duplex Mode
Green
Full Duplex Mode
Flashing Green
Frame transmission
Flashing Green
Frame reception
Flashing Red
Packet collision
Flashing Red
Receiving packets with CRC
Checksum Error
Flashing Red
Receiving Packet IP Checksum Error
Green
Port selected
Gray
Port unselected
Green with captured mode
Under captured mode(selected)
Gray with captured mode
Under captured mode(unselected)
Red
Stop transmitting packets
Green
Start transmitting packets
C
Continuous packet transmission
S
Single packet transmission
B
Burst transmission
M
Multiple-burst transmission
F
Fixed packet length
I
Increase packet length
D
Decrease packet length
R
Random packet length
