Hardware Installation
RJ45 LAN Ports
The LAN ports allow the system board to connect to a local area network by
means of a network hub.
BIOS Setting
Configure the onboard LAN in the Chipset menu (“South Bridge Configuration”
submenu) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.

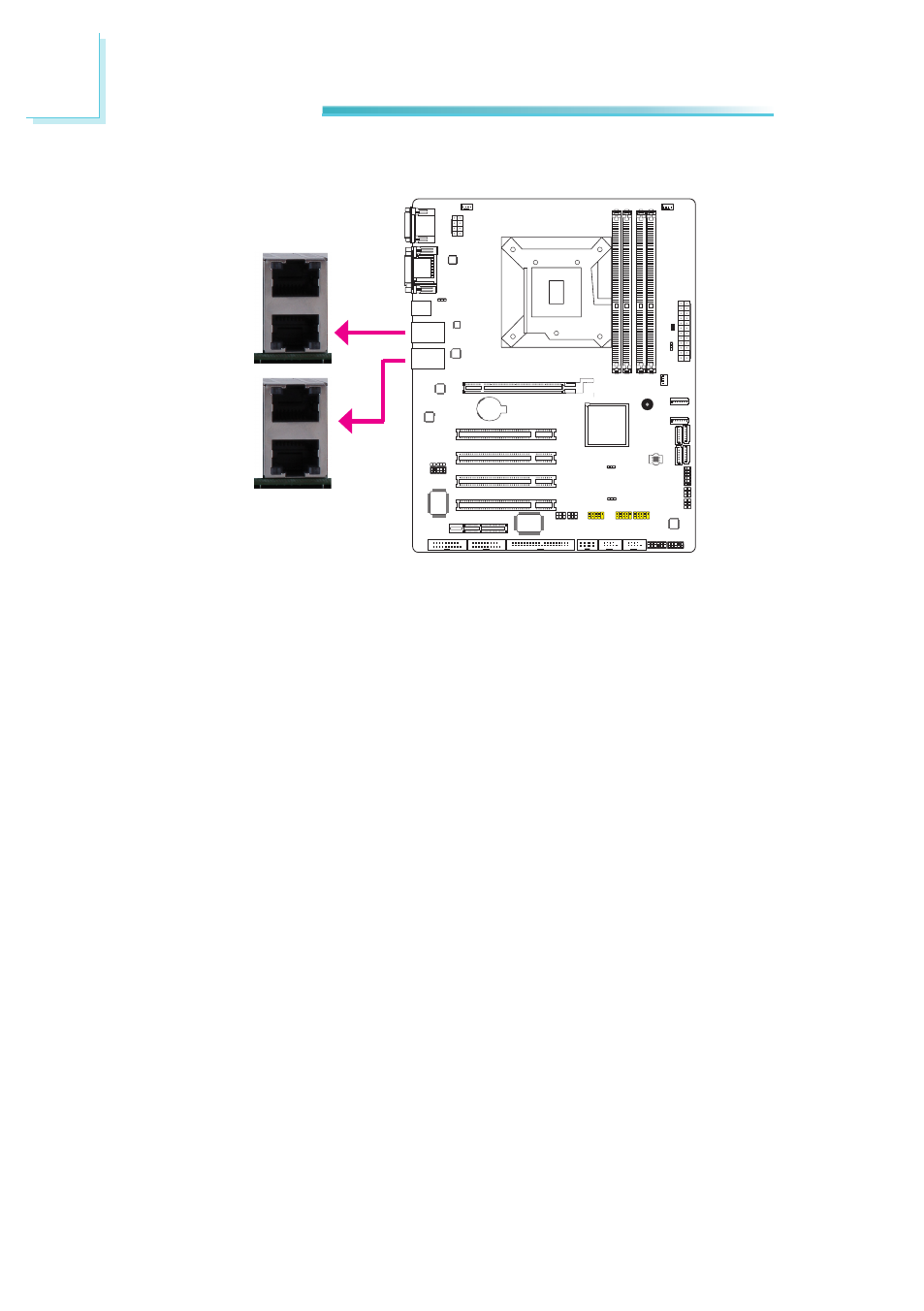

LAN 2
LAN 1
LAN 4
LAN 3
