Hardware Installation
Pins
1
2
3
4
5
6
7
Function
GND
TXP
TXN
GND
RXN
RXP
GND
The Serial ATA connectors are used to connect Serial ATA devices. Connect one
end of the Serial ATA cable to a SATA connector and the other end to your Serial
ATA device.
BIOS Setting
Configure the Serial ATA drives in the Advanced menu (“IDE Configuration” sub-
menu) of the BIOS. Refer to chapter 3 for more information.

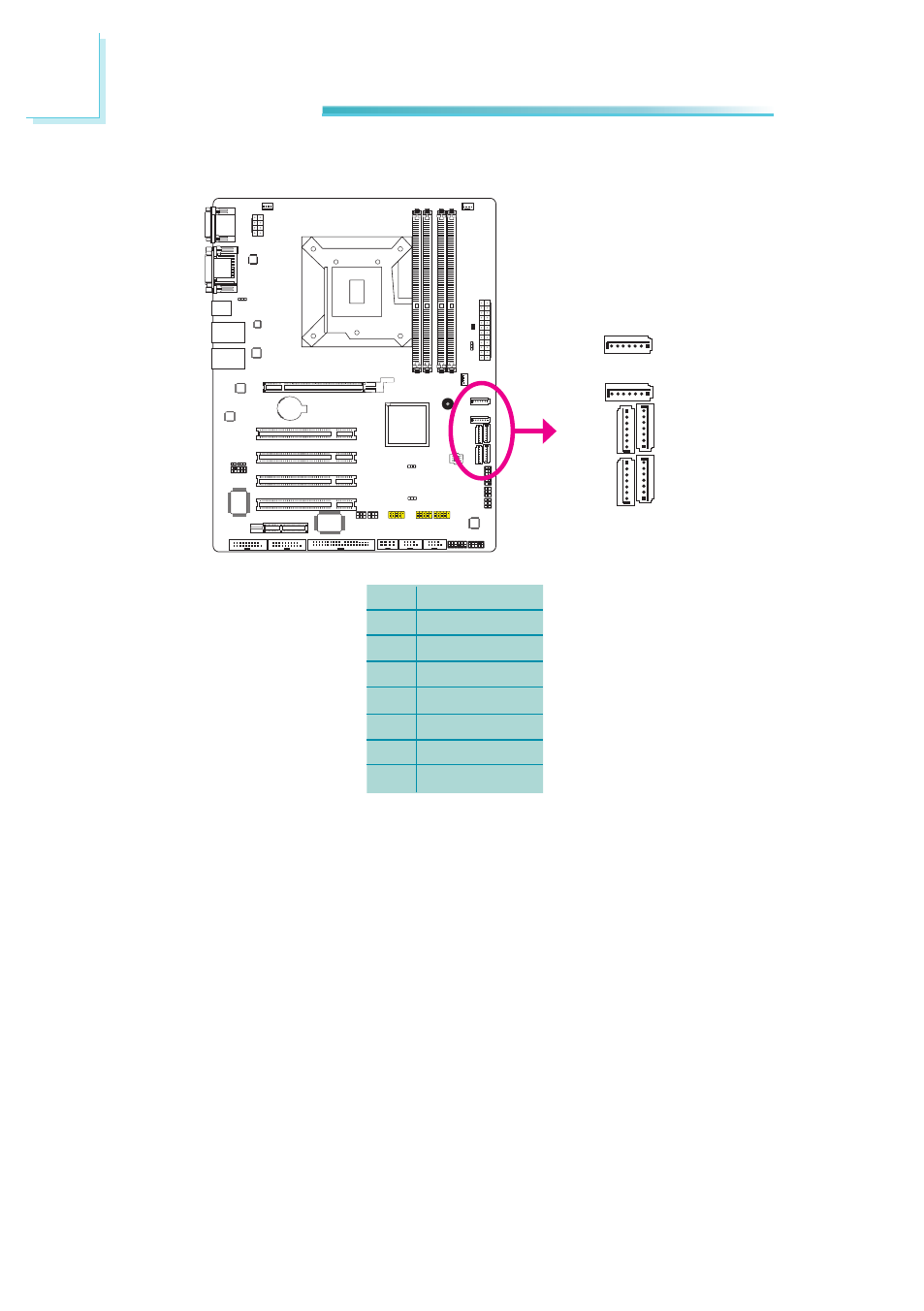

SATA (Serial ATA) Connectors
SATA 5
SATA 3
SATA 1
SATA 4
SATA 2
SATA 0
